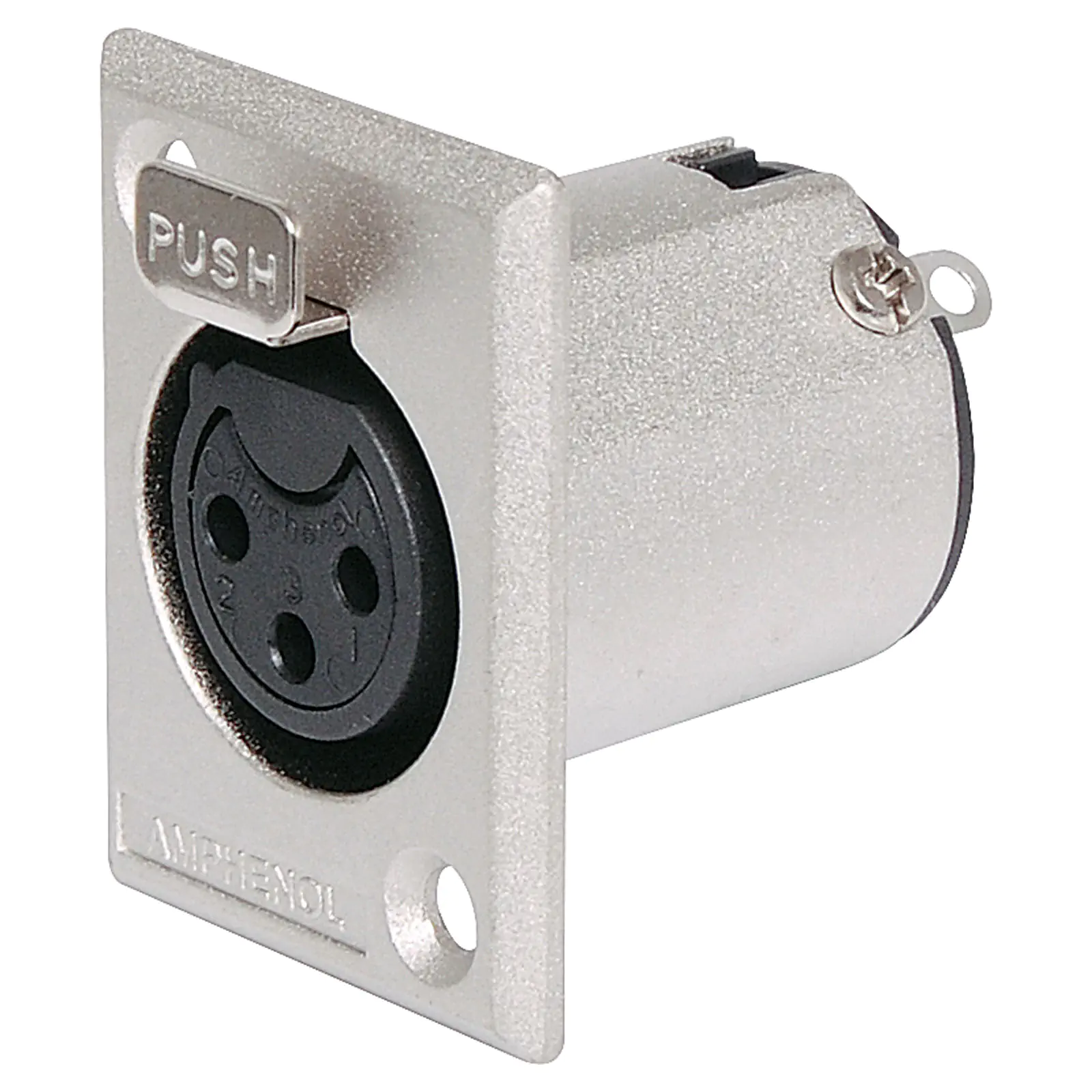

Amphenol AC3FPZ 3 Pin Female XLR Chassis Mount

by: Amphenol
SKU: P0904
Amphenol AC3FPZ 3 pin female XLR panel mount connector.
$8.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.50
10+ $8.09
40+ $7.50
i h

Overview

Amphenol  AC3FPZ 3 pin female  XLR panel mount connector. AMPHENOL (formerly Alcatel) connectors are ideal for use in high performance audio applications, including mobile PA use. They represent a no-compromise approach to connector technology, with rugged construction, secure mechanical characteristics and low induced noise levels.







Specifications:



Termination Style: Solder

Mounting Style: Chassis (Panel)

Orientation: Vertical

Contact Material: Phosphor Bronze

Contact Plating: Tin

Voltage Rating: 133 V

Current Rating: 15 A

Mating Cycles: 1000 Cycle

Shell Plating: Nickel



Features:

  • Zinc die cast shell.
  • The P size housing is the original wide flange front mounting XLR connector.
  • Solder bucket connections.
  • Precision machined or stamped contacts (3 pin only).
  • Leading first mate last break socket contact.
  • Positive latch lock system.



Details

Products specifications

Warranty 12 Months
Connectors
Gender Sockets
