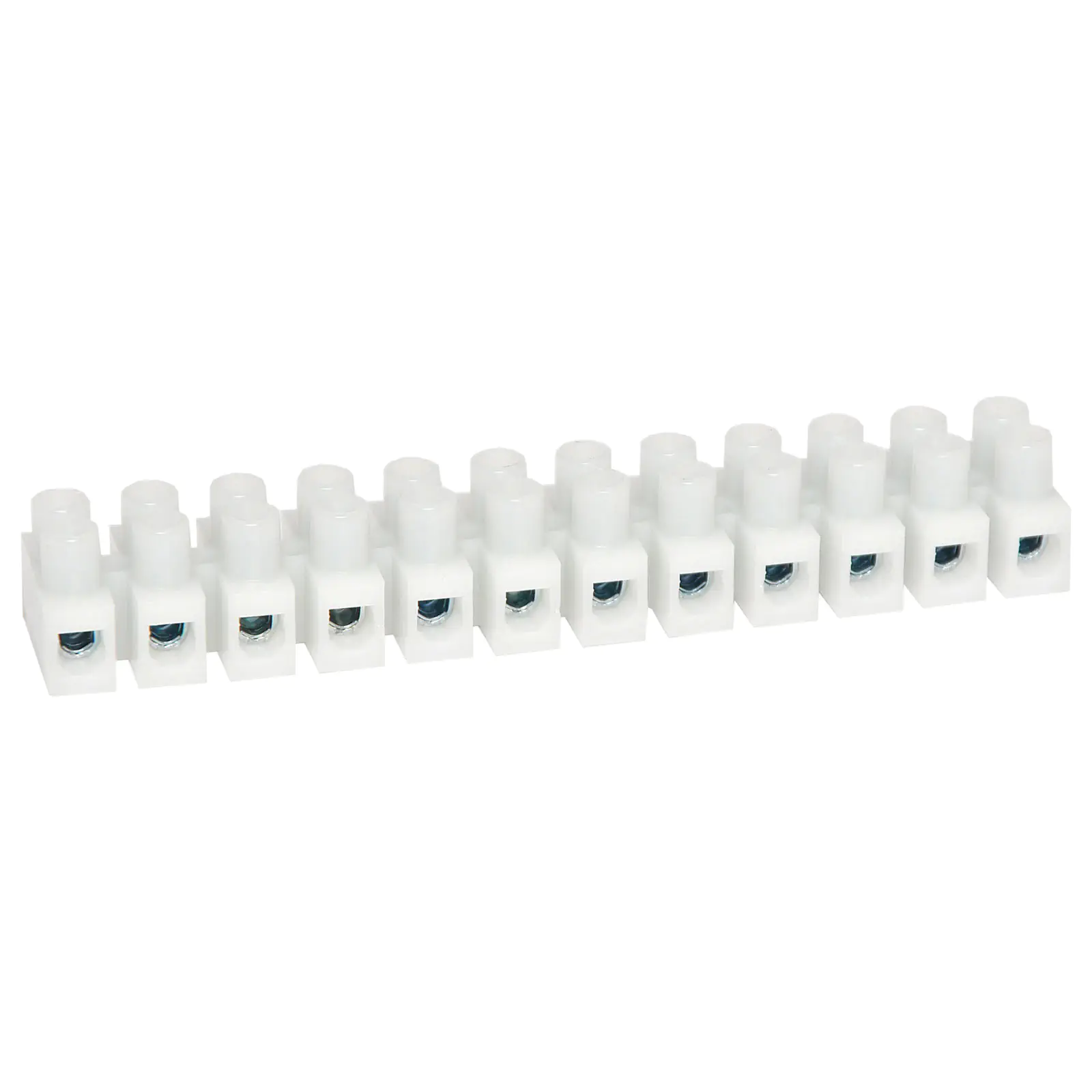

12 Way Wire Protect 41A 600V Screw Terminal Block

Name: 12 Way Wire Protect 41A 600V Screw Terminal Block
SKU: P2146
Price: 5.36 AUD
Availability: InStock

SKU: P2146

Wire protect PA12 type screw terminal block, rated 500V @ 41A.

$5.36

All Prices Shown are (ex GST)

Bulk Pricing

ea	$5.36
10+	$4.91
50+	$4.45

i h

Overview
Details
Warranty

Overview

Wire protect type, rated 500V @ 41A. Wire protect version has a flat spring plate under the screw to prevent damage to cables.

Dimensions:

A: 141mm

B: 24

C: 19

D: 4.2

Pitch: 12mm

Specifications:

ClampingArea : 6 mm²

Wire Range: 22AWG - 10AWG Sol/Str

Screw: M3.5x7

Base:1.0~2.5 mm Raised Base Type

Housing Material:Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2

Temperature Rating: -30°C to T110°C

Terminal Insert:Brass metal alloy, nickel plated

Screw:Steel, zinc plated

Wire Protector (DS):Stainless spring steel

Products specifications

Warranty	12 Months
Connectors
Connections	12 Way
Type	Terminal Strips
