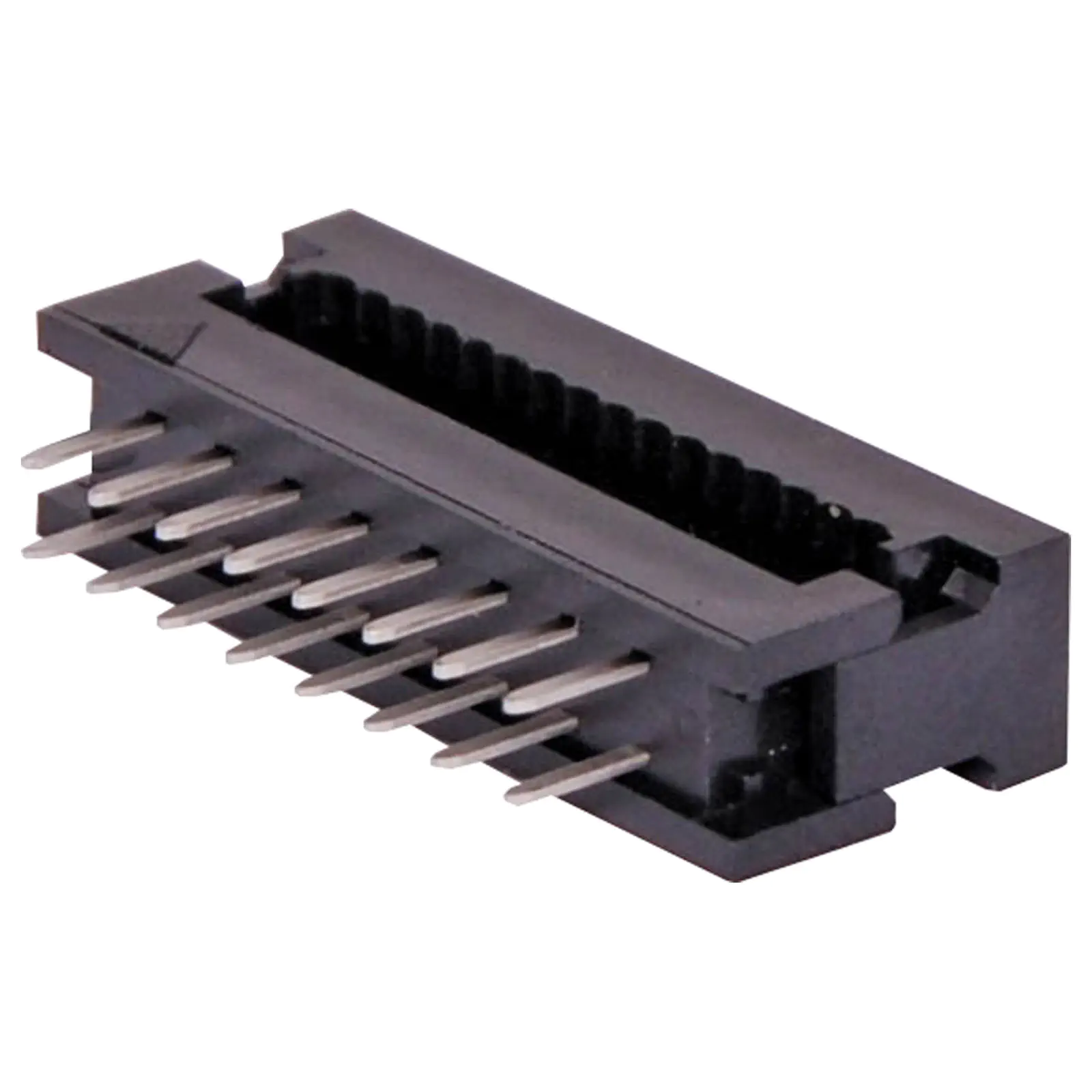

14 Pin 2.54mm Pitch IDC Transition Plug

by: Oupiin
SKU: P5162A
Used for non-removable connection to a PCB. Connector is crimped onto IDC ribbon cable and then is soldered to the PCB. Twin row, 2.54mm pitch
$1.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.55
10+ $1.41
50+ $1.27
i h

Overview

Used for non-removable connection to a PCB. Connector is crimped onto IDC ribbon cable and then is soldered to the PCB. Twin row, 2.54mm pitch





Specifications:



Materials

Housing: Thermoplastic polyester glass filled UL94V-0

Contacts: Copper alloy

Cable: 1.27mm2 pitch flat cable



Electrical Characteristics

Current Rating: 1A

Dielectric Withstanding Voltage: 500V AC

Insulator Resistance: 1000MΩ minimum

Contact Resistance: 30mΩ maximum

Operating Temperature: -40ºC – +105ºC

ROHS Compliant: Yes

Details

Products specifications

Warranty 12 Months
Connectors
Type IDC Headers
Pins 14 Pin
Pitch 2.54mm

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
