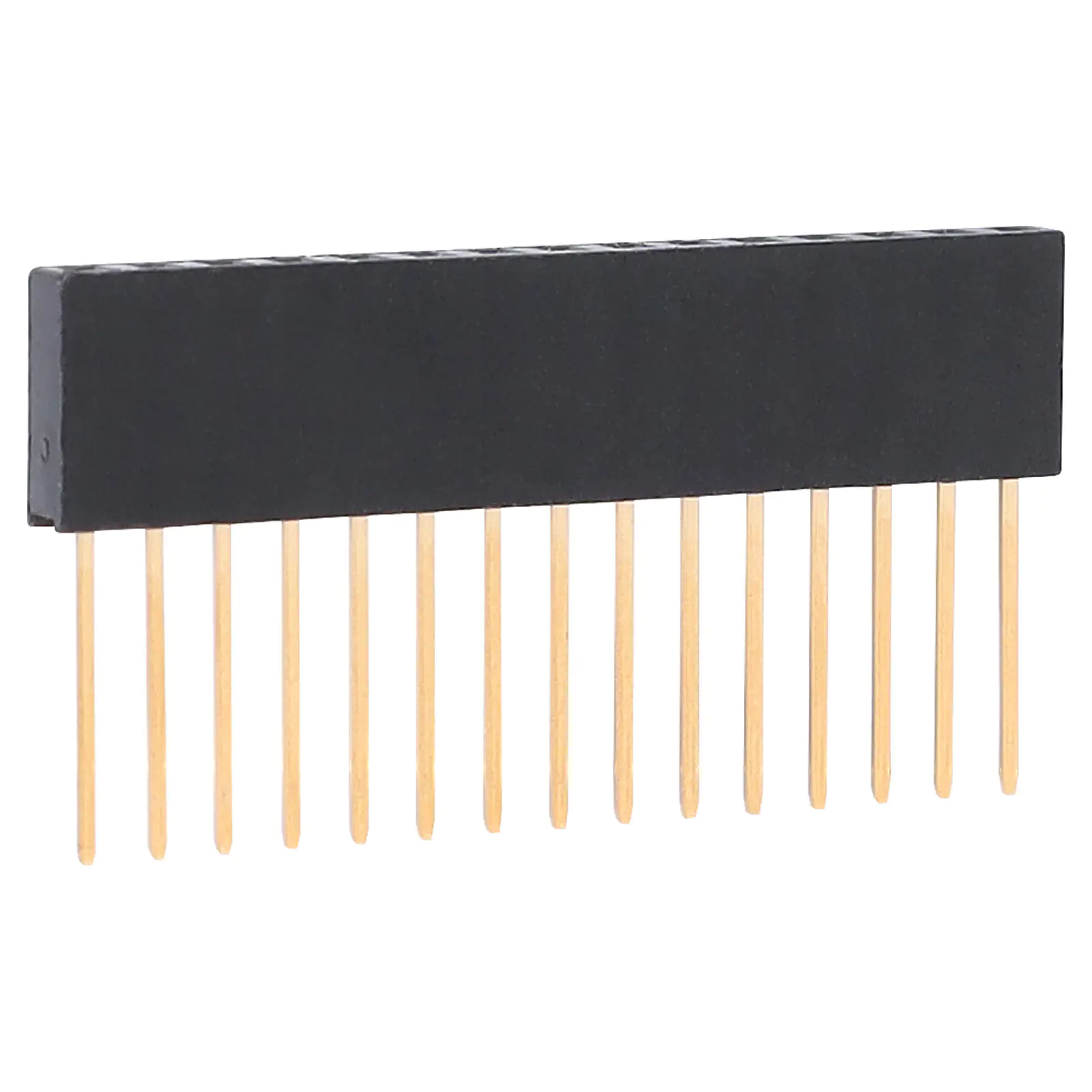

1 x 15 Pin 11mm Stackable Header Socket

by: Oupiin
SKU: P5377
These stackable headers are made to work with the SparkFun Qwiic Shield for Arduino Nano or any comparable shield to connect the shield with a Arduino Nano footprint.
$2.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.27
10+ $2.05
40+ $1.82
i h

Overview

These stackable headers are made to work with the SparkFun Qwiic Shield for Arduino Nano or any comparable shield to connect the shield with a Arduino Nano footprint. The pins are spaced by 0.1".

They allow you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solder-less breadboard.

Note: Soldering is required for functionality and physical attachment to a shield or board.





Specifications:



Current Rating: 3A

Withstand Voltage: 1000V AC

Contact Resistance: 20 megaohms (min)

Insulation Resistance: 100 megaohms (min)

Operating Temperature: -40°C ~ +105°C

Housing: PBT (UL94V-0), Black

Contact: Brass, gold flash over nickel

Details

Products specifications

Warranty 12 Months
Connectors
Type Header Strips

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Data Sheet
PDF
