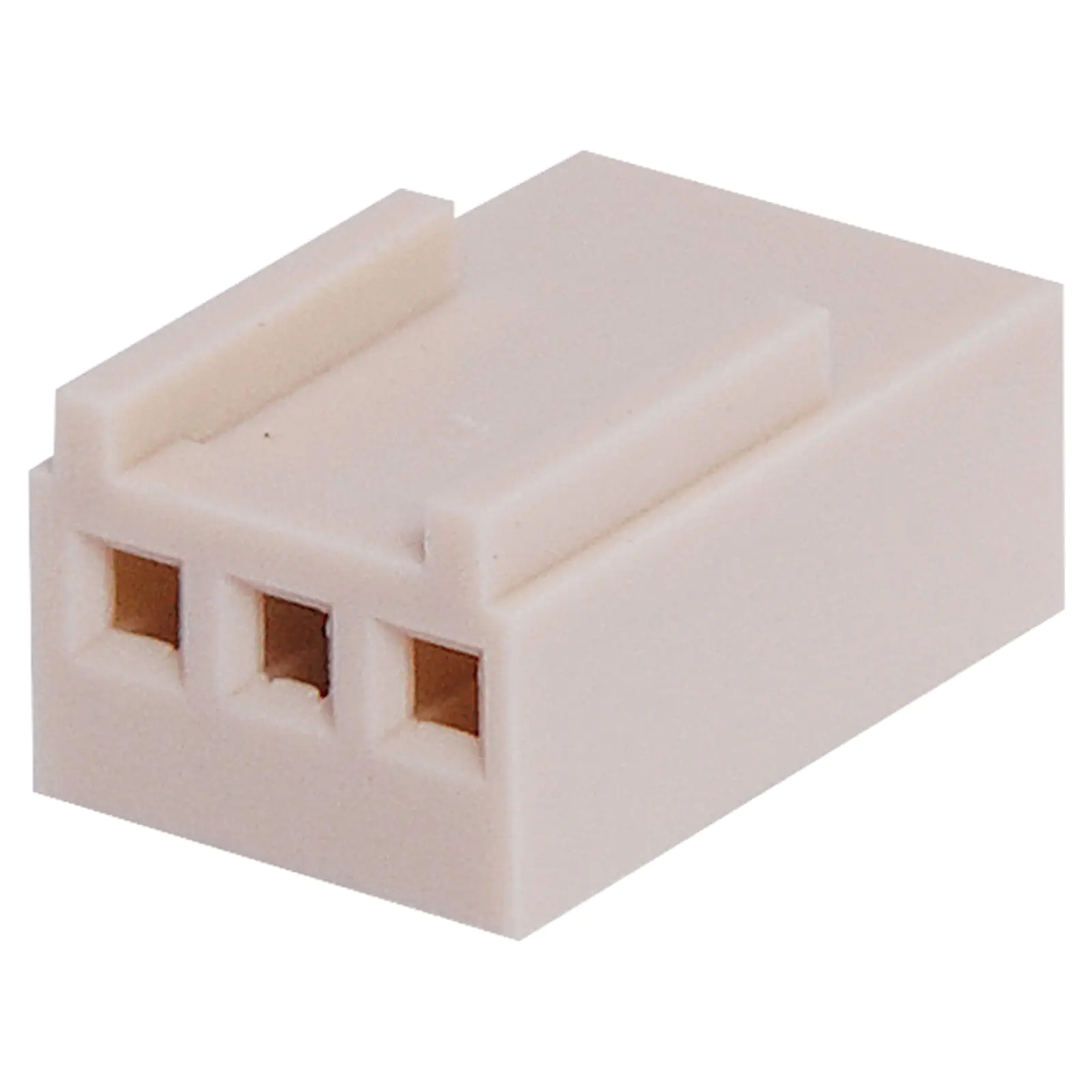

3 Way 2.54mm Crimp Housing

by: Oupiin
SKU: P5473
3 Way. Header Plugs. 2.54mm Spacing. Rated at 2A.
$0.36

All Prices Shown are (ex GST)

Bulk Pricing
ea $0.36
10+ $0.32
50+ $0.27
i h

Overview

3 Way Header Plugs. 2.54mm Spacing. Rated at 2A.

Crimp pins sold separately





Specifications:



Material

Housing: Nylon 66 flame retardant UL94V-2

Contacts: Tin plated brass

Recommended wire: 22AWG -28AWG



Electrical

Current rating: 2A

Insulator resistance: 1000MΩ min. @ 250V AC

Contact resistance: 10mΩ max.

Operating temperature: -25ºC - +85ºC

Details

Products specifications

Warranty 12 Months
Connectors
Pins 3 Pin
Pitch 2.54mm
Type Pin Header Plugs
