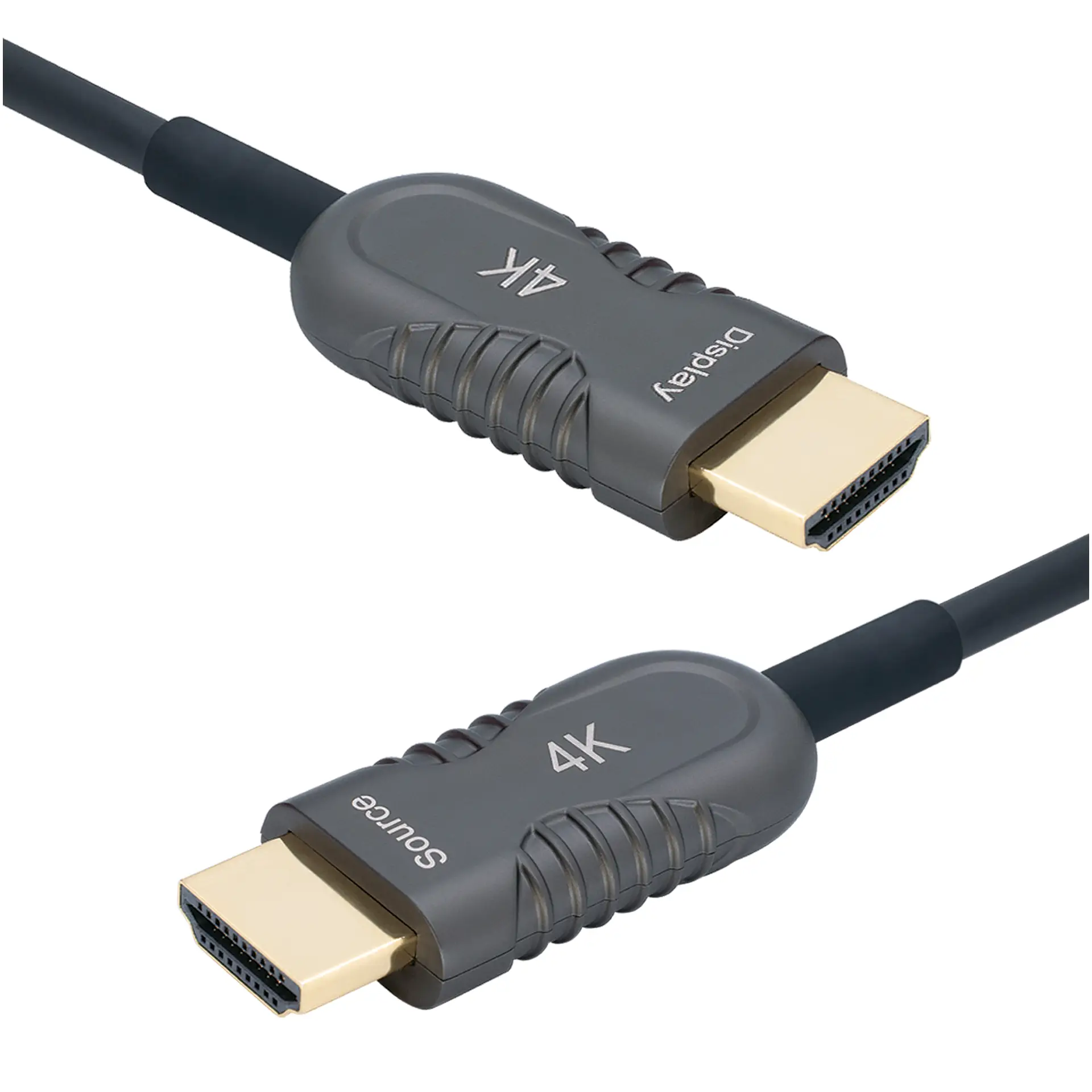

100m Active Optical (AOC) High Speed HDMI Cable With Ethernet

by: Dynalink
SKU: P7439B
Cutting edge optical HDMI technology supporting 4K @ 60Hz resolutions at longer lengths than copper cable can achieve.
$318.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $318.18
2+ $295.45
4+ $263.64
i h

Overview

Experience the next generation of connectivity with cutting-edge Active Optical Cable (AOC) HDMI® technology, delivering stunning 4K resolution at 60Hz over distances far beyond the limits of traditional copper cables. With support for 32 channels of audio and a full 18Gbit/s TMDS bandwidth across its entire length, this cable ensures uncompromised performance for even the most demanding AV setups.

Specifically engineered for long-distance signal transmission, this HDMI® active optical cable offers exceptional picture quality without degradation. Its slim, lightweight, and highly flexible design makes installation simple, while still supporting flawless 4K @ 60Hz (4:4:4) playback at lengths of up to 100 meters. Unlike other solutions, it requires no external power supply, providing effortless reliability.

Built with a premium Silicon Line GmbH chipset, manufactured in Germany, this cable guarantees long-term stability and outstanding connectivity you can trust.



Features

  • 4K/UHD - Video resolution up to 18G 4K@60 4:4:4.
  • Utilises quality Silicon Line GmbH German made chipset.
  • HDMI® and HDCP 2.2 Compliant.
  • HDR 10 (High Dynamic Range) - More life-like images through a greater range of luminance levels.
  • Available in lengths up to 100m.
  • Zero compression and zero latency.
  • Multi-channel Audio Extension - Up to 32 channels of uncompressed digital stereo signals for studio-grade surround sound.
  • EDID Pass Thru - Pass EDID signals from the display to source.
  • EMI & RFI Immunity.
  • No external power supply required.
  • Easy to Use - Simple to install, plug and play.





Specifications:

Inputs: 1 x HDMI® (Type A 19-pin male)

Outputs: 1 x HDMI® (Type A 19-pin male)

Compliance Standards: HDMI® (4K@60Hz Chroma sub-sampling 4:4:4 24bpp), HDCP 2.2

Maximum Resolution Support: 4K@60Hz 4:4:4 8-bit

Maximum Pixel Clock: 594MHz

Maximum Data Rate: 18Gbps (6Gbps per graphic channel)

Audio Format: 2ch LPCM | Multichannel: LPCM, up to DTS-X, Dolby Atmos

Latency: Zero

Cable Structure: Hybrid optical fiber cable with copper wire

Fiber Optic: Multi-mode fiber

Operating Temperature: 0°C to 45°C

Storage Temperature: -20°C to 70°C

Humidity: 10% to 90%, non-condensing

Cable Diameter: 4.8mm

Product Supply: No need external power

Power Consumption (MAX): 0.45W

Net Weight:1000g for 30m





Installation Notes

Care should be taken when installing this optical cable to ensure that it is not run in tight bends (less than 2cm diameter) and that the cable does not knot. The cable should not be bent 180 degrees. Doing so will break the internal optical fibre core and render the cable inoperable. We do not provide warranty on cables which have been installed incorrectly. We suggest checking the cable connectivity between equipment prior to installation.

Please Note: This cable is directional. The plug labelled "DISPLAY" must be plugged into the TV Monitor input and the other plug labelled "SOURCE" must be plugged into the media source output.
