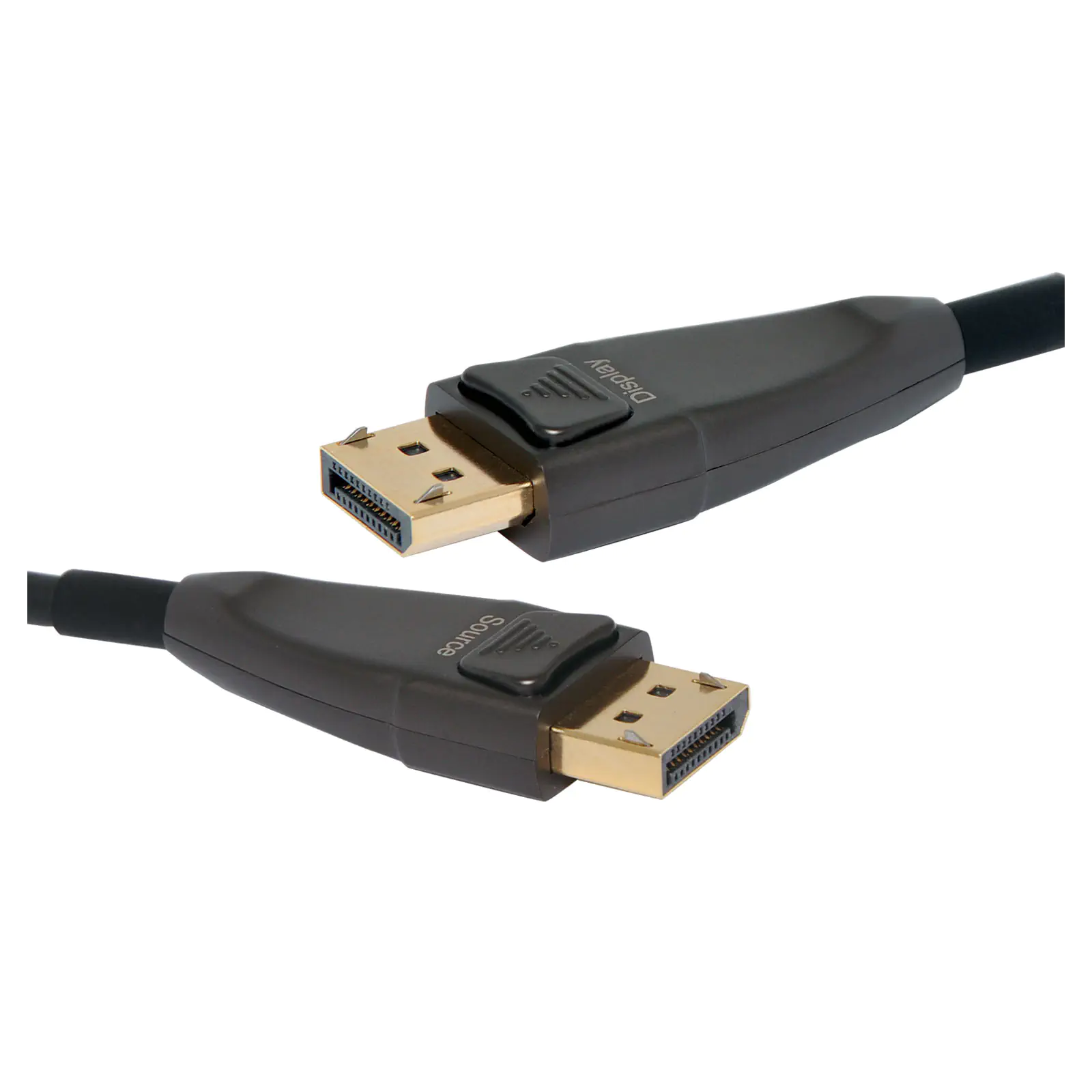

10m Optical DisplayPort Male to Male Lead

by: Dynalink
SKU: P7460A
Our range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance.
$226.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $226.36
2+ $213.64
4+ $204.55
i h

Overview

This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance. Used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. DisplayPort was designed to replace VGA, FPD-Link, and Digital Visual Interface (DVI). This range supports 8K resolution at 60Hz and due to its slimline plug it will suit a 25mm conduit.

Built with a premium Silicon Line GmbH chipset, manufactured in Germany, this cable guarantees long-term stability and outstanding connectivity you can trust.



Please Note: This cable is directional (Source -> Display).



Features:

  • Supports 8K @ 60Hz
  • 32Gbps Bandwidth total
  • Utilises quality Silicon Line GmbH German made chipset.
  • DisplayPort 1.4 Compliant
  • HDCP 2.2 Compliant
  • Hybrid fibre and copper cable
  • Slimline plug suits 25mm conduit





Specifications:



Performance:

Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2

Maximum Pixel Clock Frequency: 810MHz

Maximum Video Bit Rate: Supports up to 8.1Gbps per lane, 32.4Gbps total

Maximum Colour Depth: 48bits

Maximum Supported Resolutions: 8K @ 60Hz



Connections:

DisplayPort Input/Output: 20 Pin DisplayPort Male

Power: No external power supply is required



AUX Channel Support:

AUX Channel Communications: Supports bi-directional communications for EDID, HDCP, Link Training etc

HDCP Support: HDCP 1.4 and HDCP 2.2



Optical:

Optical Technology: 4 x discreet optical channels, 10GHz, 850nm

Optical Transmitter: 4 x 850nm multi-mode VCSELs

Optical Receiver: 4 x GaAs PIN photo diodes



Cable:

Fiber Cable Jacket: Hybrid cable 4 x fiber and 8 x copper wire

Cable Jacket: PVC, Black

Cable Length: 10m



Mechanical - Cable:

Maximum Tensile Load: 300N

Minimum Bend Radius: 48mm

Cable Diameter: 4.8mm (outside)



Environmental:

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to +85°C

Operating/Storage Humidity: 5% to 80% (non condensing)



Power Requirements:

Power Source: Powered from DisplayPort source device

Power Consumption: <0.5W each end

Details

Products specifications

Warranty 12 Months
Audio Visual
Type Cables
Connection DisplayPort, DisplayPort Optical
