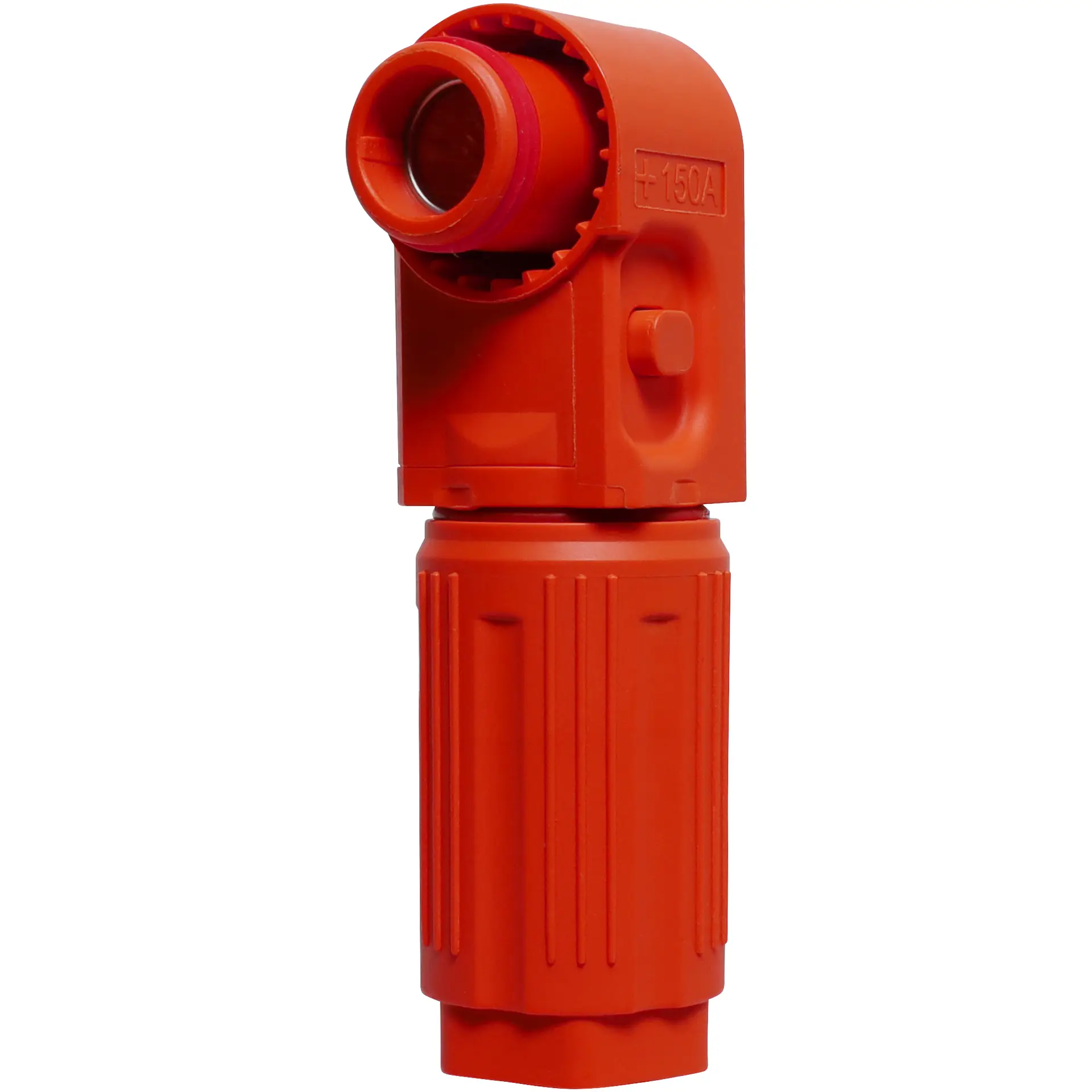

150A Battery Storage Connector Plug Red

SKU: P7800
These battery storage connectors are a robust and reliable connector designed for high-current energy storage systems, including electric vehicles (EVs), battery storage and remote power applications.
$25.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $25.00
4+ $23.18
10+ $21.82
i h

Overview

These battery storage connectors are a robust and reliable connector designed for high-current energy storage systems, including electric vehicles (EVs), battery storage and remote power applications. Engineered for single-core power transmission, it supports high voltage and current loads with minimal resistance. The IP67-rated housing ensures superior protection against dust, water, and harsh environmental conditions, making it ideal for outdoor and mobile use. With secure locking mechanisms and easy installation, this connector is suited for demanding power applications that require safety and durability.



Features

  • Secure locking mechanism.
  • Direct crimp design with integral wire collar.
  • IP67 rated sealing for use in the most demanding of environments.
  • Accepts up to 2AWG (35mm2) conductors.
  • Low resistance design with recessed contact points.
  • UL/TUV certified.
  • Wide operating temperature -40°C to 125°C.



Specifications

Colour: Red

Wire entry: 35mm2 (2AWG max).

Rated voltage: 1500V DC

Rated current: 150A

Insulation resistance: 500V DC / 500MΩ

Hipot test voltage: 7000V DC

Contact resistance: <1mΩ

Operating temperature: -40°C to 125°C

Protection rating: IP67

Salt spray requirement: 72 hours

Certificates: UL/TUV



Details

Products specifications

Warranty 12 Months
Connectors
Type Battery Terminals
