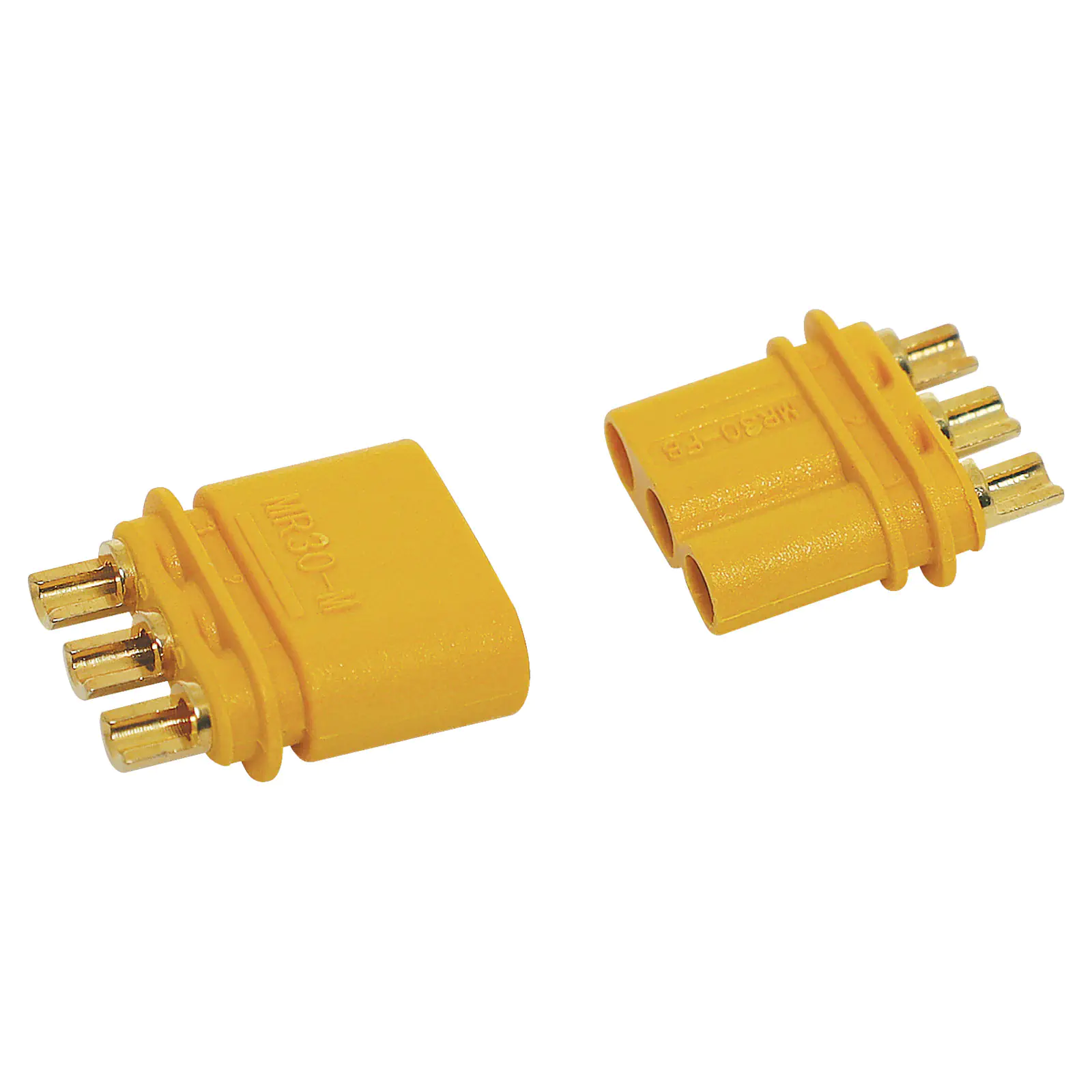

30A 500V MR30M Style High Current DC Connector

SKU: P7826
These MR30-M connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries.
$7.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.23
4+ $6.50
10+ $5.77
i h

Overview

These MR30-M connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries. Supplied as plug & socket pair. 30A rated @ 500V DC. Includes both plug and socket.







Specifications:



Connector Type: DC plug and socket

Amps: 30A Continuous

Size (female): 14x12x5mm (with cover)

Weight (female): 1.0g (with cover)

Size (male): 15x12x5mm (with cover)

Weight (male): 1.4g (with cover)

Body Material and Surface Plating: Brass and gold plated

Insulation Material: PA66

Original Internal Resistance: 0.8MΩ

500 Times Internal Resistance: 0.85MΩ

Max. Continuous Current: 30A (within 30 minutes)

Max. Instantaneous Current: 40A (within 1 minutes)

Recommended Cable Spec: 18AWG 2.8mm diameter

Recommended Soldering Spec: 400° C/3S

Weight: 1.2g/pcs

Insulation Degree: UL94V-0

Machine Life: 3000 Times



Features:

  • Suitable for connecting ESCs and motors
  • With protective sleeve
  • Assistive weld foot, more stable
