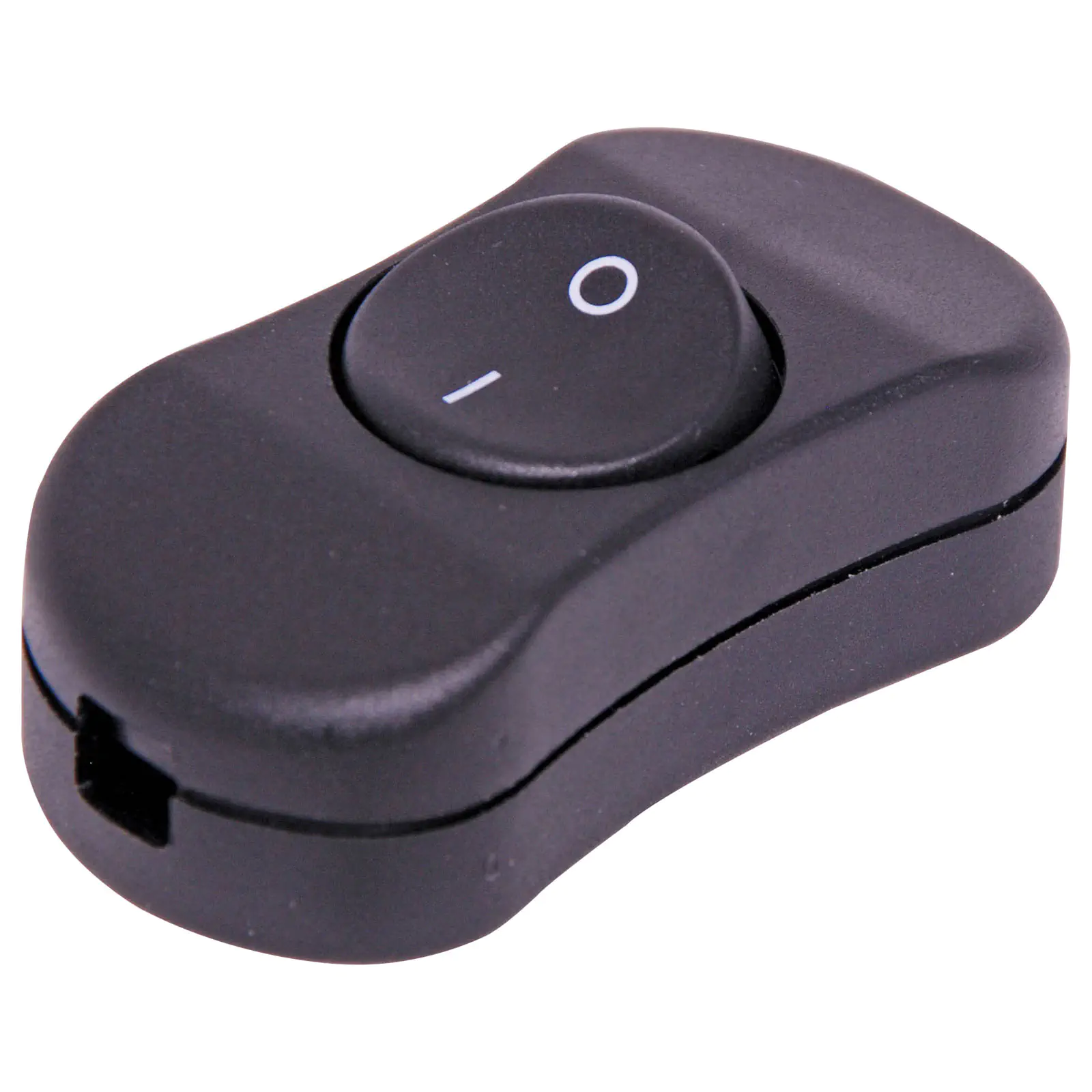

A 2 core in-line low voltage DC rocker switch. Suitable for currents up to 6A. Frame and actuator constructed from UL94V-2 nylon.
Terminals are silver plated brass.

Low Voltage In Line Rocker Switch 6A

Name: Low Voltage In Line Rocker Switch 6A
SKU: P8205A
Price: 6.23 AUD
Availability: InStock

SKU: P8205A

A 2 core in-line low voltage DC rocker switch. Suitable for currents up to 6A. Frame and actuator constructed from UL94V-2 nylon. Terminals are silver plated brass.

$6.23

All Prices Shown are (ex GST)

Bulk Pricing

ea	$6.23
4+	$5.64
8+	$5.00

i h

Overview
Details
Warranty

Overview

A 2 core in-line low voltage DC switch. Suitable for currents up to 6A. Frame and actuator constructed from UL94V-2 nylon. Terminals are silver plated brass.

Instructions: Insert a small screwdriver into the square slots at the back, one by one, then press towards the end of the switch while lifting the end of the cover. This will disengage the clips that hold the back in place.

Note: Not approved for mains use. 12-24V DC applications only. For mains use, see P8238.

Specifications:

Rating: 6A max,

Contact resistance: 50mΩ max

Insulation resistance: DC 500v 100MΩ min

Dielectric strength: AC 1500V 1 minute

Details

Products specifications

Warranty	12 Months
Switches
Contacts	DPST
Action	Alternate

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
