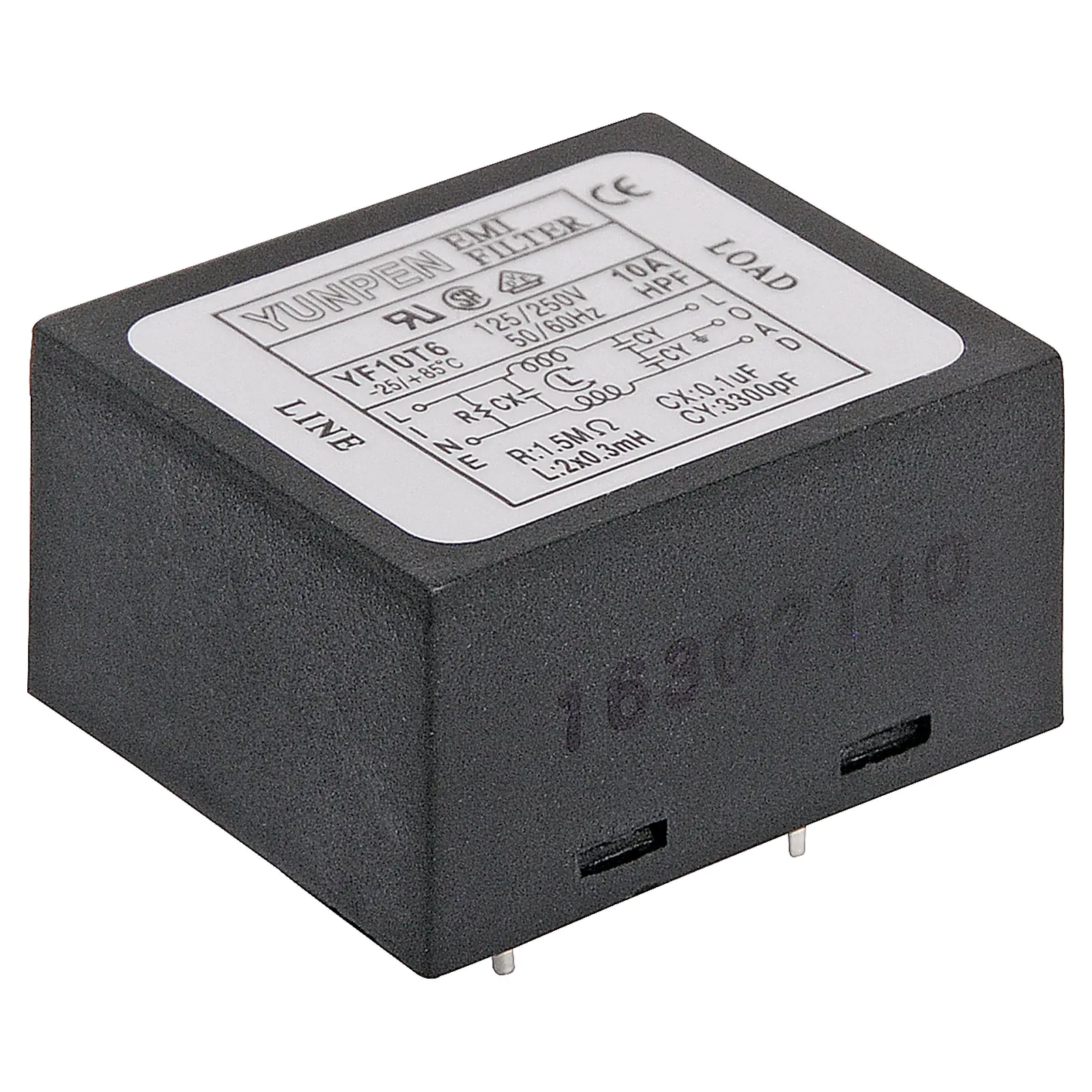

250V 10A Mains PCB Mount EMI Filter

SKU: P8372A
10A 250V AC PCB mount mains EMI filter
$8.86

All Prices Shown are (ex GST)

Bulk Pricing
ea $8.86
10+ $7.95
40+ $7.05
i h

Overview

10A 250V AC PCB mount mains EMI filter





Specifications:



Rated Voltage: 250V AC

Rated Current: 10A

Leakage Current: 0.8mA Max @ 250V AC 50Hz



Test Voltage:

- Line to Line: 1450V DC

- Line to Ground: 2250V DC



Insulation Resistance: 100MΩ @ 250V DC

Direct Current Resistance: 0.1Ω Max

Temperature Increase: 30ºC Max



Operating Temperature: -25ºC - +85ºC



Attenuation:

- Normal Mode 25dB/Min: 1.50 - 50MHz

- Common Mode 25dB/Min: 1.50 - 50MHz



CX: 0.1µF

CY: 2 x 3300pF

Inductance: 2 x 0.3mH

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
