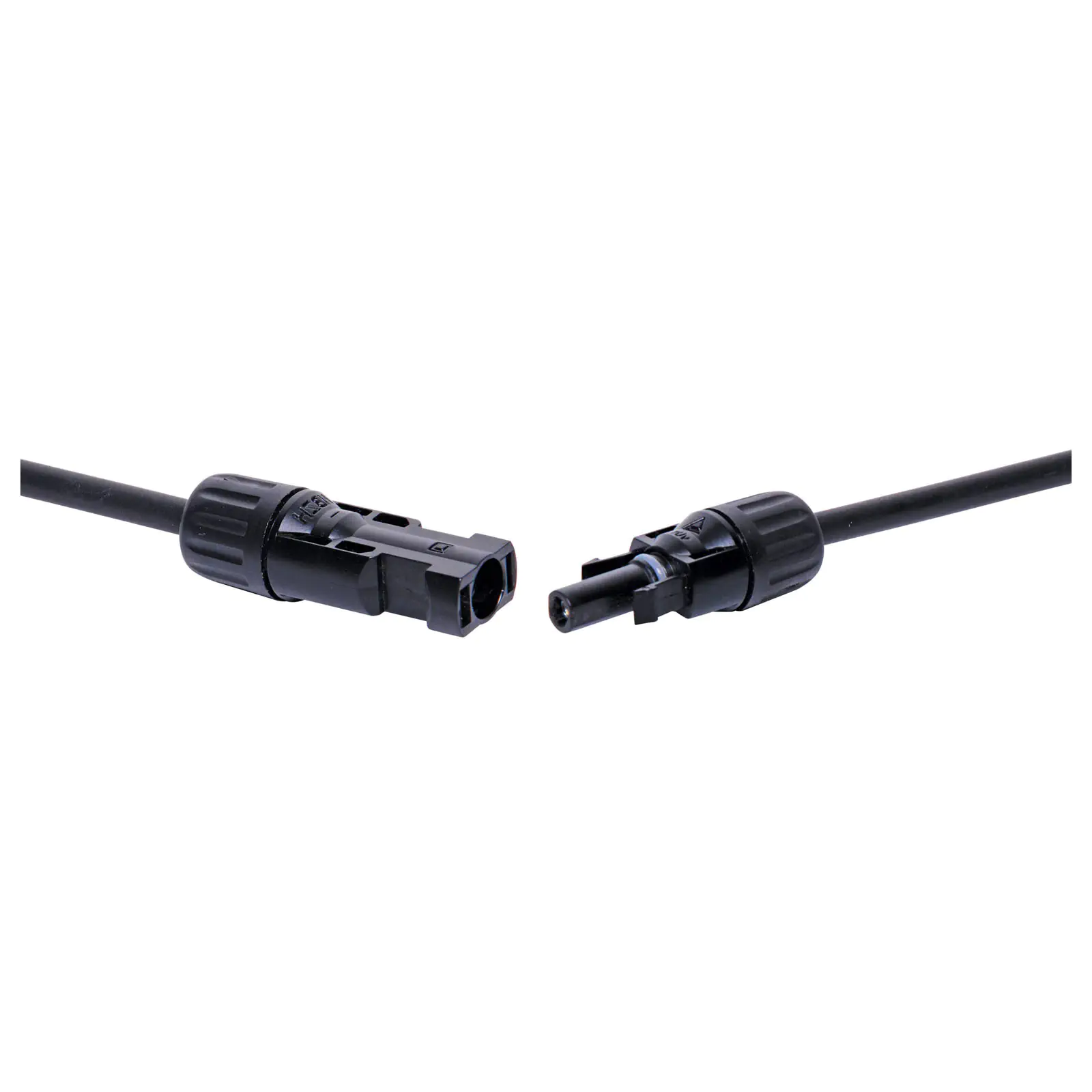

2m Solar MC4 Style Male to Female Lead

SKU: P8615B
Genuine Staubli® MC-4 connectors. Water & dust proof - IP68 rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. EN50521:2008 approval suitable for AS/NZS 5033:2012 standard.
$24.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $24.50
4+ $22.27
10+ $20.45
i h

Overview

Genuine Staubli® MC-4 connectors. Water & dust proof - IP68 rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. EN50521:2008 approval suitable for AS/NZS 5033:2012 standard.



Specifications:



Rated Current： 30A

Rated Voltage： 1000V DC (TUV) / 600V DC（UL）

Test Voltage: 6KV(50Hz,1min)

Contact resistance of blug connectors: ≤0.5mΩ

Safety Class： Class Ⅱ

Protection Degree,mated： IP68

Protection Degree,Unmated IP2X

Wire Size Range： 4-6mm² (TUV) / 12AWG（UL）

Flame Class： UL94-V0(TUV) /5VA（UL）

Insulation Material： PC&PPO

Temperature Range： -40°C...+85°C (TUV)/ -40°C...+90°C (UL)

Certification： TUV & UL

Details

Products specifications

Warranty 12 Months
