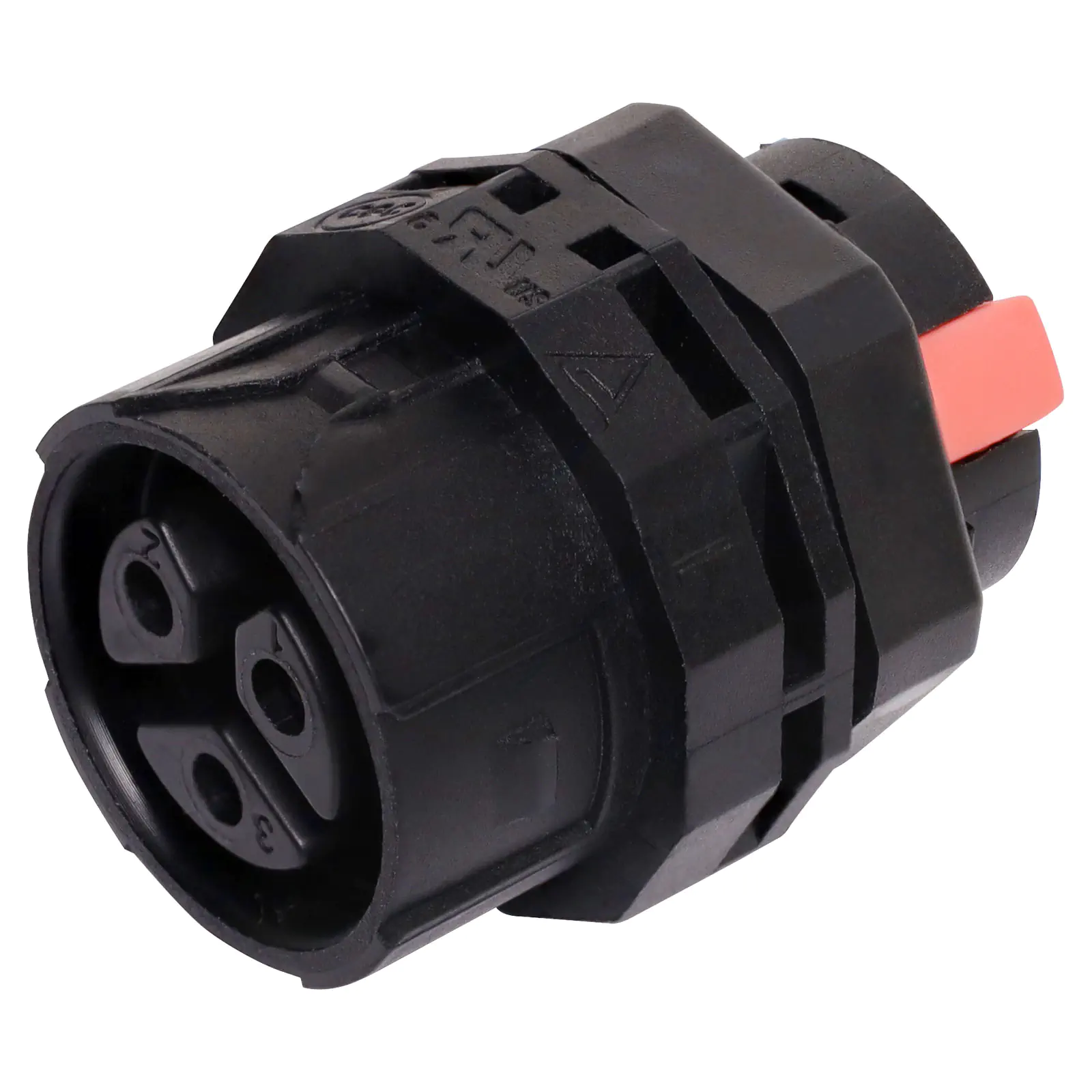

3 Pin 16A Locking Female Chassis IP68 Waterproof Plug

SKU: P8652
This waterproof IP68 3 pin connector features a screwless termination and locking connection to mating connectors (see P8650 for male line versions).
$10.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.23
4+ $9.05
10+ $8.41
i h

Overview

This waterproof IP68 3 pin connector features a screwless termination and locking connection to mating connectors (see P8650 for male line versions). This makes it ideal for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics. 19mm mounting hole.

Features:

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8650 male line plug.
  • Up to 16A at 450V rated.



Specifications:



Number of Poles: 3Pin

Rated Voltage: 450V

Rated Current: 16A

Wire Section: 0.5-2.5mm2

Outer Cable Diameter: 5-9mm, 9-12mm

Mounting Hole Size: 19mm

Temperature Range: -40℃-+105℃

IP Code: IP68

Housing Material: PA66

Contact/Terminal Materials: Copper Alloy

Details

Products specifications

Warranty 12 Months
Connectors
Pins 3 Pin
Type Waterproof Circular Connectors
