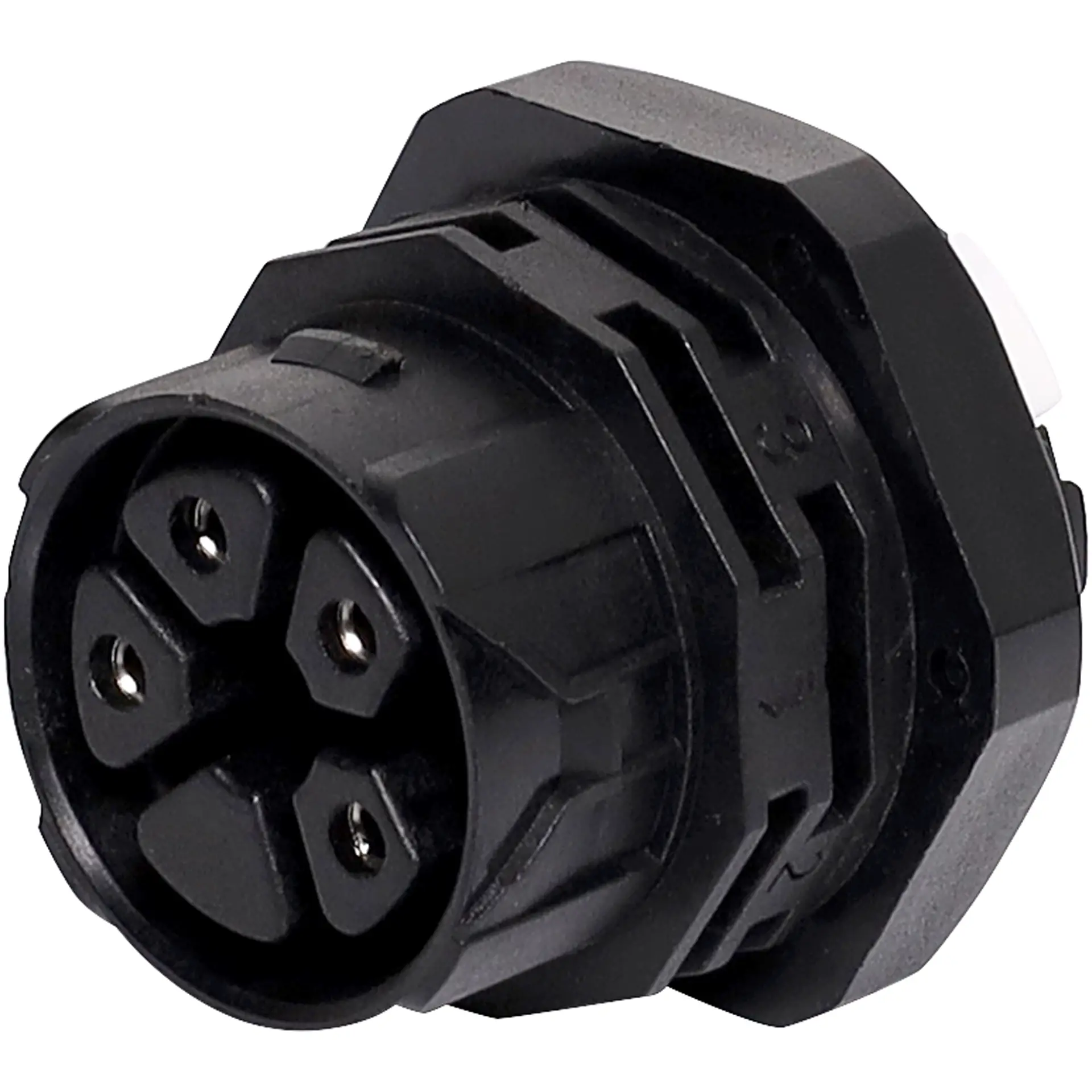

4 Pin 30A Locking Female Chassis IP68 Waterproof Plug

SKU: P8672
This waterproof IP68 4 pin connector features a screwless termination and locking connection to mating connectors (see P8660 for male line version).
$10.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.23
4+ $9.05
10+ $8.41
i h

Overview

This waterproof IP68 4 pin connector features a screwless termination and locking connection to mating connectors (see P8670 for male line version). This makes it ideal for applications that are often disconnected and reconnected, but is also suitable for static installation. It features a high level of moisture and dust resistance at IP68 with flame retardant plastics. With a current rating up to 30A it is ideal for DC wiring in vehicle, caravan and 4WD power systems. 19mm mounting hole.



Features

  • Secure and easy to mate twist lock connection.
  • IP68 weatheproof rating.
  • Ideal for industrial, mining and agricultural use.
  • Mates with P8670 male line plug .
  • Up to 30A at 450V rated.



Specifications

Number of Poles: 4 Pin

Rated Voltage: 450V

Rated Current: 30A

Wire Section: 0.5-4mm2

Outer Cable Diameter: 5-9mm

Temperature Range: -40℃-+105℃

IP Code: IP68

Housing Material: PA66

Contact/Terminal Materials : Copper Alloy

Details

Products specifications

Warranty 12 Months
Connectors
Pins 4 Pin
Type Waterproof Circular Connectors
