IP67 In-Line Weatherproof Cat6 RJ45 Joiner

SKU: P9304

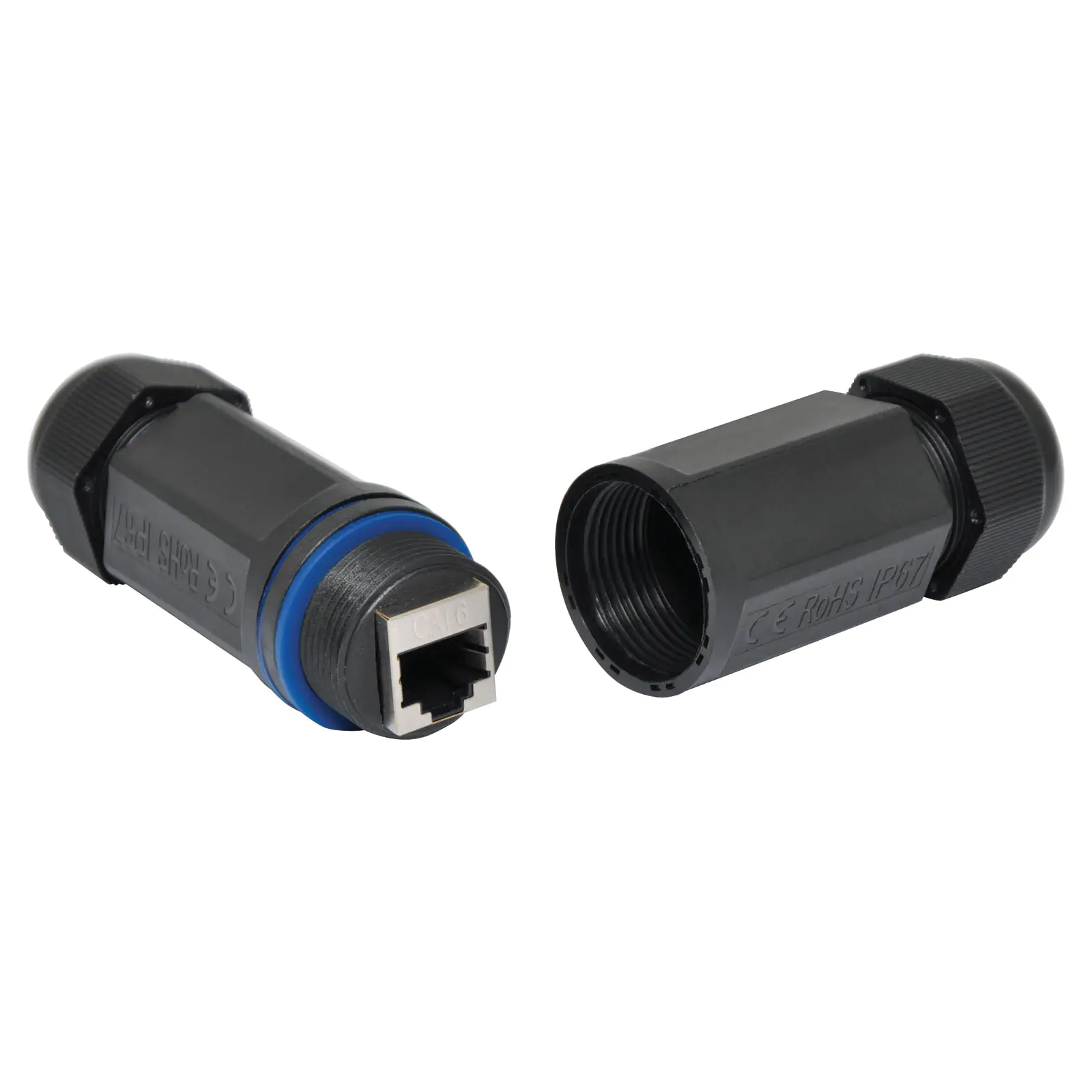

A waterproof joiner for data cables with RJ45 back to back internal connection.
$13.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $13.59
4+ $12.05
10+ $11.14
i h

Overview

A waterproof joiner for data cables with RJ45 back to back internal connection. The blue sealing o-rings have a split allowing cables which have already been terminated, or pre-made patch leads to be threaded through the connector housing.





Specifications:



Coupler Material

Shield: BRASS

Plastic Housing:ABS

RJ45 contact material& finished:

Phospor Bronze Nickel plated

Contact area: Gold plated



Performance

Insertion force: 900gms for 8 contacts.

Retention strength: 7.7kgs between jack and plug.

Operation temperature: -20°C to 68°C



Durability

Jack: 750 cycles plug-jack mating and unmating test,

Insertion cycle at 20 cycles/minute max.

Contact resistance test per 100 cycles.

The cat.6 performance is in compliance with the ANSI/TIA/EIA 568C standard. RoHS2.0 (2011/65/EU) Compliant

Details

Products specifications

Warranty 12 Months
Connectors
Type RJ45 Joiners
