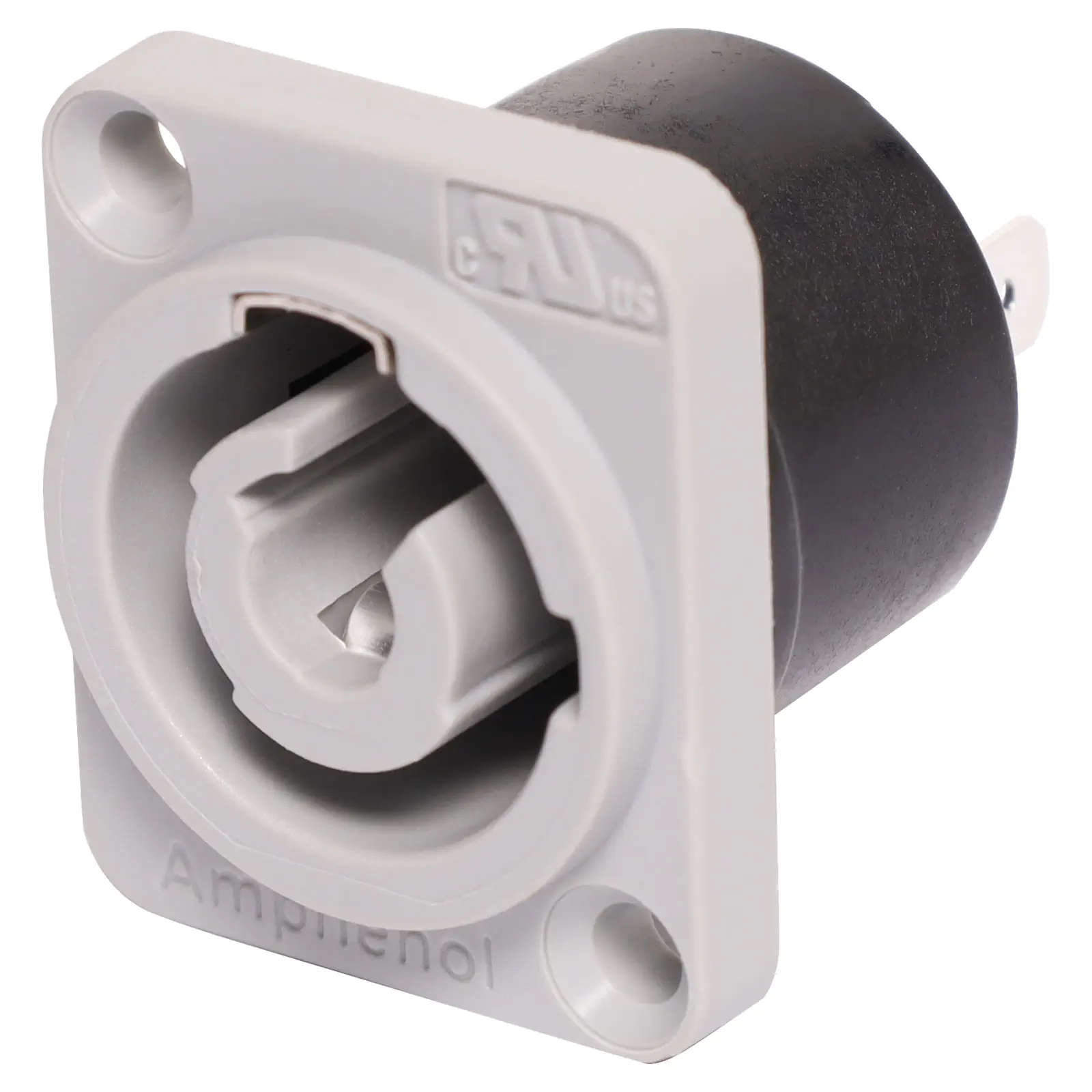

HP-3-MDGW Power Out 25A Chassis Socket

by: Amphenol
SKU: PA0774
Extra heavy duty connector as used in commercial lighting and audio applications. Power Out. SAA approved.
$6.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.59
5+ $6.32
10+ $5.00
i h

Overview

Extra heavy duty connector as used in commercial lighting and audio applications. Power Out. SAA approved.





Specifications:



General Characteristics

Number of contacts: 2 + PE

Termination: Screw or Solder Tab 3/16”

Flammability: UL94V-0

Environmental: Complies with EU RoHS 2 Directive 2011/65/EU



Electrical Characteristics

Rated Operating Voltage: 250VAC

Test Voltage AC RMS: 3200V

Current carrying capacity: 25A

Typical Contact Resistance: =3mΩ

Insulation Resistance (initial): =2GΩ

Insulation Resistance (after damp heat test): =1GΩ



Climatic Characteristics

Protection Class: IP20

Operating Temperature: -25°C to 75°C



Mechanical Characteristics

Chassis Connector: 12g

Cable Plug: 32g

Typical Cable retention force: 200N (Subject to cable material and O.D.)

Screw Terminals: 2.5mm2 (AWG14)



Materials

Connector Shell / Finish: PA66 GF30 / Black / Grey

Insulators: PA66 GF30

Cable Boot / Backshell: Santoprene / PBT

Cable Clamp (Chuck): P.O.M

Contact Plug - Material / Plating: Brass / Silver

Contact Chassis - Material / Plating: Phosphor Bronze / Silver



Features:

  • Locking 25 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable





When connecting to mains power this must be installed by a licensed electrician.

To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
