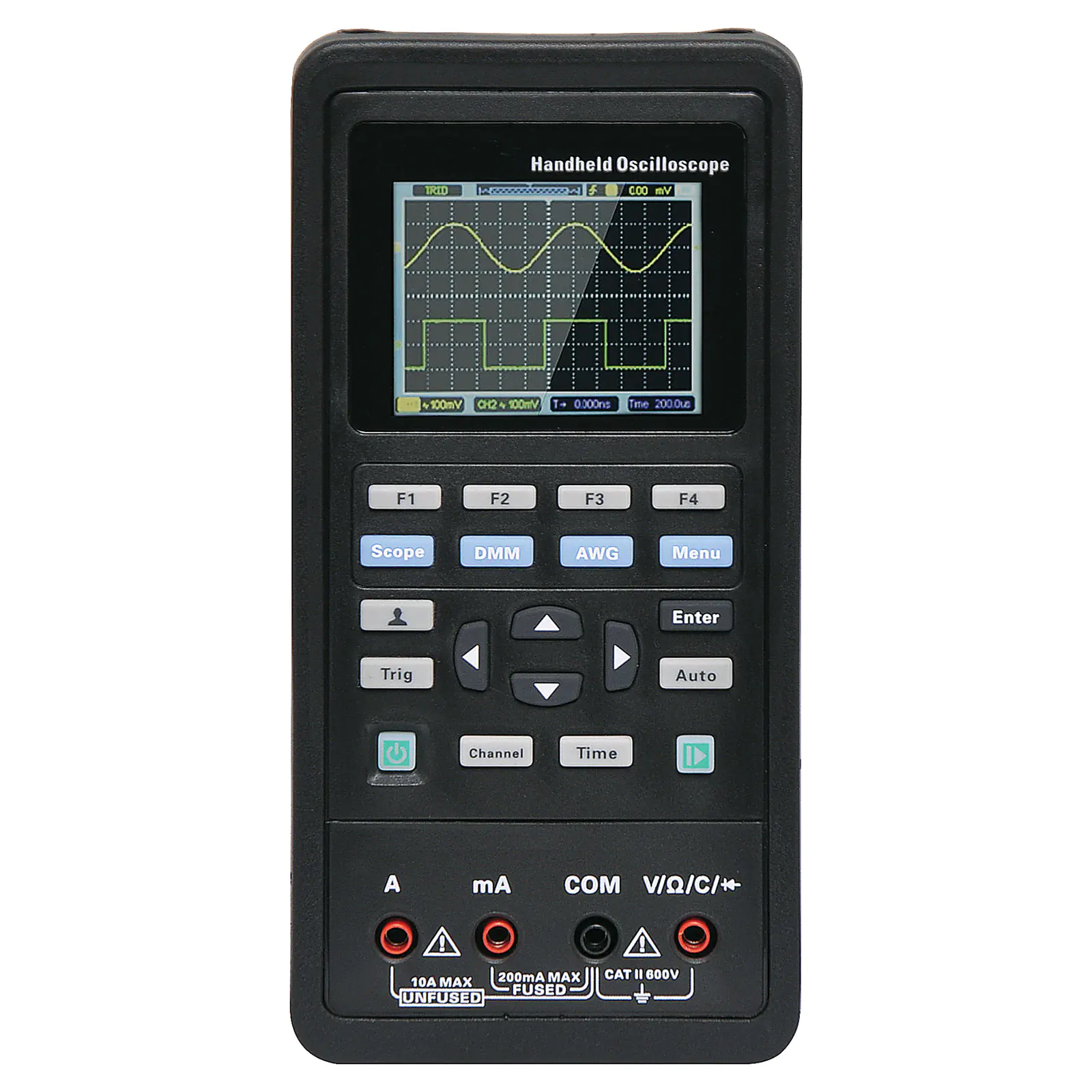

40MHz LCD Handheld Oscilloscope Digital Multimeter

SKU: Q0102
The ultimate field testing accessory combining an digital storage oscilloscope and digital multimeter. It features 2 channels with real time sampling modes of 125MSa/s per channel (or 250MSa/s when used in single channel mode). 64K colour screen provides a clear view.
Save $118.18 $271.82 $390.00

All Prices Shown are (ex GST)
Bulk Pricing
ea
$271.82 $390.00
2+
$271.82 $353.64
3+
$271.82 $313.64
i h

Overview

The ultimate field testing accessory combining an digital storage oscilloscope and digital multimeter. Fits right in the palm of your hand and is suitable for single handed operation when testing in tricky locations. It features 2 channels with real time sampling modes of 125MSa/s per channel (or 250MSa/s when used in single channel mode). The 64K colour screen provides a clear view of the waveform/measurement, plus other parameters. Measured waveforms can be stored and quickly compared between screens. Internal batteries provide a full days use with up to 2 months standby time and fast recharge of just 2 hours. Includes a silicone protective case, complete range of accessories (multimeter probes, oscilloscope charger, BNC to croc clip cables) and field carry case.

Please Note: AWG button function is not available on this model.





Specifications:



Oscilloscope

Bandwidth: 40Mhz

Sample rate range: 250MSa/s (single channel ), 125MSa/s (dual channel)

Record length: 6K (single channel), 3K (dual channel)

Vertical sensitivity: 10mV/div - 10V/div

Trigger type: Edge

Auto wave measurements: Frequency & amplitude



Multimeter

Voltage DC: 400mV, 4V, 40V, 400V, 600V (±0.8%+5d)

Voltage AC: 4V, 40V, 400V, 600V (±1.2%+5d)

Current DC: 40mA, 200mA, 4A, 10A (±1.5%+2d)

Current AC: 40A, 400mA, 4A, 10A (±2%+3d)

Resistance: 400Ω, 4KΩ, 60KΩ, 4MΩ, 40MΩ (±1.2%+5d)

Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (±1.2%+5d)

Diode test: 0 - 2.0V



General

Charging input: USB Type C

Display: 2.8” 64K colour 320x240 screen, 4000 count DMM

Dimensions: 199 x 98 x 40mm



Features:

  • 2 channel digital oscilloscope + digital multimeter
  • Easy to use button and screen layout
  • Small enough for single hand operation
  • Large, clear 2.8” 64K colour screen 320x240 resolution
  • Oscilloscope: 250MSa/s Sample Rate, 40MHz Bandwidth
  • USB C recharging with internal 2600mAh lithium battery
  • Automatic frequency & amplitude measurement
  • 4000 count 10A multimeter

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
