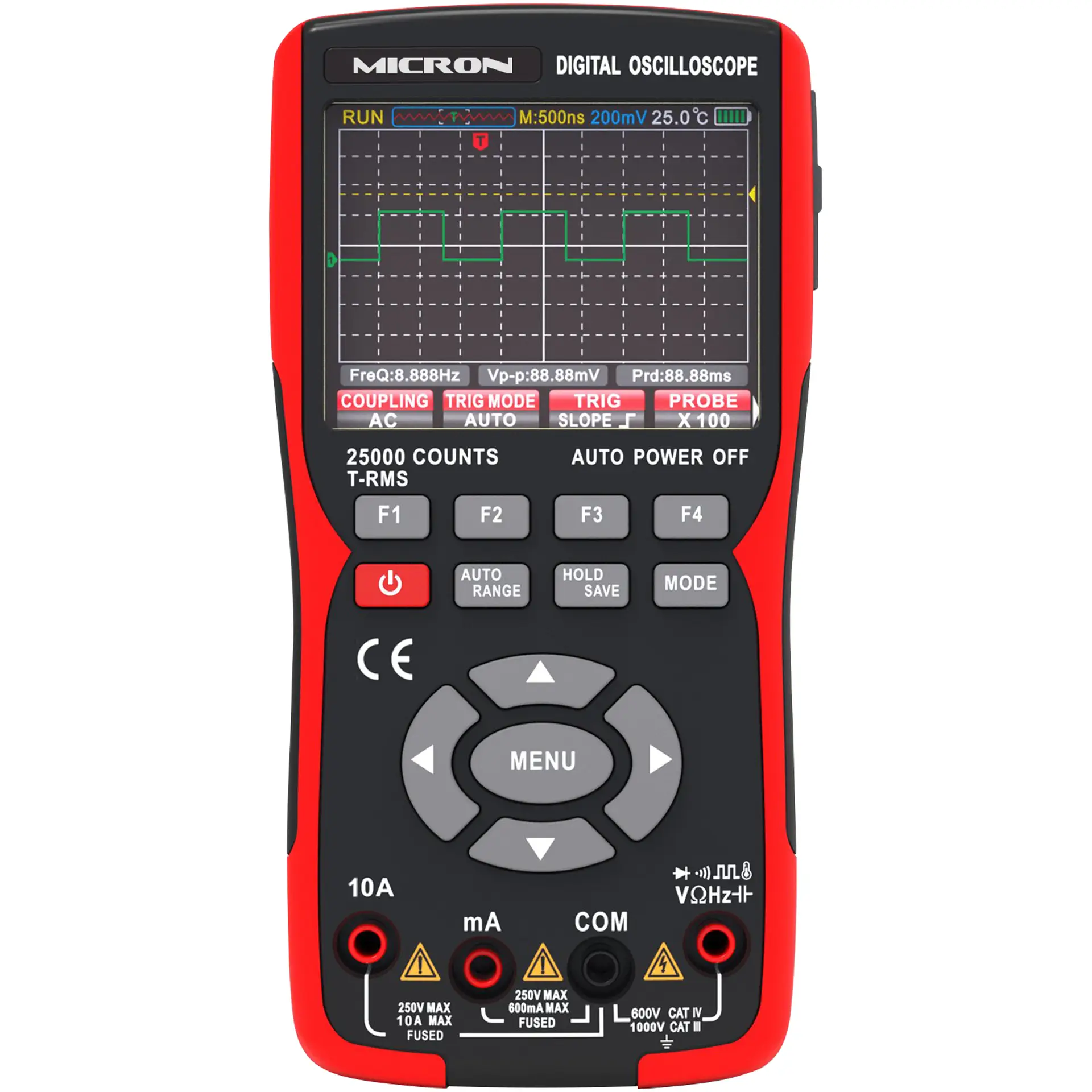

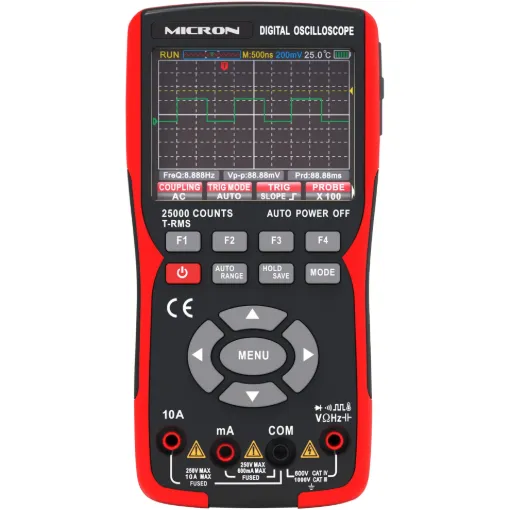

50MHz LCD Handheld Oscilloscope & Digital Multimeter

by: Micron
SKU: Q0102A
The ultimate field testing accessory combining an digital storage oscilloscope and digital multimeter. Fits right in the palm of your hand and is suitable for single handed operation when testing in tricky locations. It features 2 channels with real time sampling modes of 280MSa/s (200M).
$286.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $286.36
2+ $258.18
3+ $229.09
i h

Overview

The ultimate field testing accessory combining an digital storage oscilloscope and digital multimeter. Fits right in the palm of your hand and is suitable for single handed operation when testing in tricky locations.  It features 2 channels with real time sampling modes of 280MSa/s (200M). The colour screen provides a clear view of the waveform/measurement, plus other parameters. Measured waveforms can be stored and quickly compared between screens. Internal 18650 lithium batteries provide a full days use with up to 2 months standby time and fast recharge in just a few hours. Includes accessory kit with multimeter probes, oscilloscope probe, charger, and carry case.



Features:

  • 2 channel digital oscilloscope + digital multimeter
  • Easy to use button and screen layout
  • Small enough for single hand operation
  • Large, clear 2.8” colour screen 320x240 resolution
  • Oscilloscope: 280MSa/s Sample Rate, 50MHz Bandwidth
  • USB C recharging with 18650 replaceable lithium battery
  • Automatic frequency & amplitude measurement
  • 25000 count 10A multimeter




Specifications:


Oscilloscope

Bandwidth: 50Mhz

Sample rate range: 200M / 280MSa/s

Record length: Up to 120Kb

Vertical sensitivity: 20mV/div - 10V/div

Trigger type: Rising/falling edge

Auto wave measurements: Period, frequency, peak to peak value, max value, minimum value, RMS, duty cycle, frequency meter


Multimeter

Voltage DC: 250mV, 25mV, 2.5V, 25V, 250V, 1000V (±0.05%+3d)

Voltage AC: 250mV, 25mV, 2.5V, 25V, 250V, 750V (±0.05%+3d)

Current DC: 25mA, 250mA, 2.5A, 10A (±0.5%+3d)

Current AC: 25mA, 250mA, 2.5A, 10A (±0.8%+3d)

Resistance: 250Ω, 2.5KΩ, 25KΩ, 250KΩ, 2.5MΩ , 25MΩ, 250MΩ (±0.5%+3d)

Capacitance: 9.999nF, 99.99nF, 999.9µF, 99.99µF, 999.9µF, 9.999mF, 99.99mF (±2%+5d)

Diode test: 0 - 2.0V


General

Charging input: USB Type C

Display: 2.8” 64K colour 320x240 screen, 25000 count DMM

Dimensions: 177 x 89 x 40mm
