This Panel Mount Multi-Function Digital Power Meter is suitable for applications requiring a professional finish and digital accuracy.

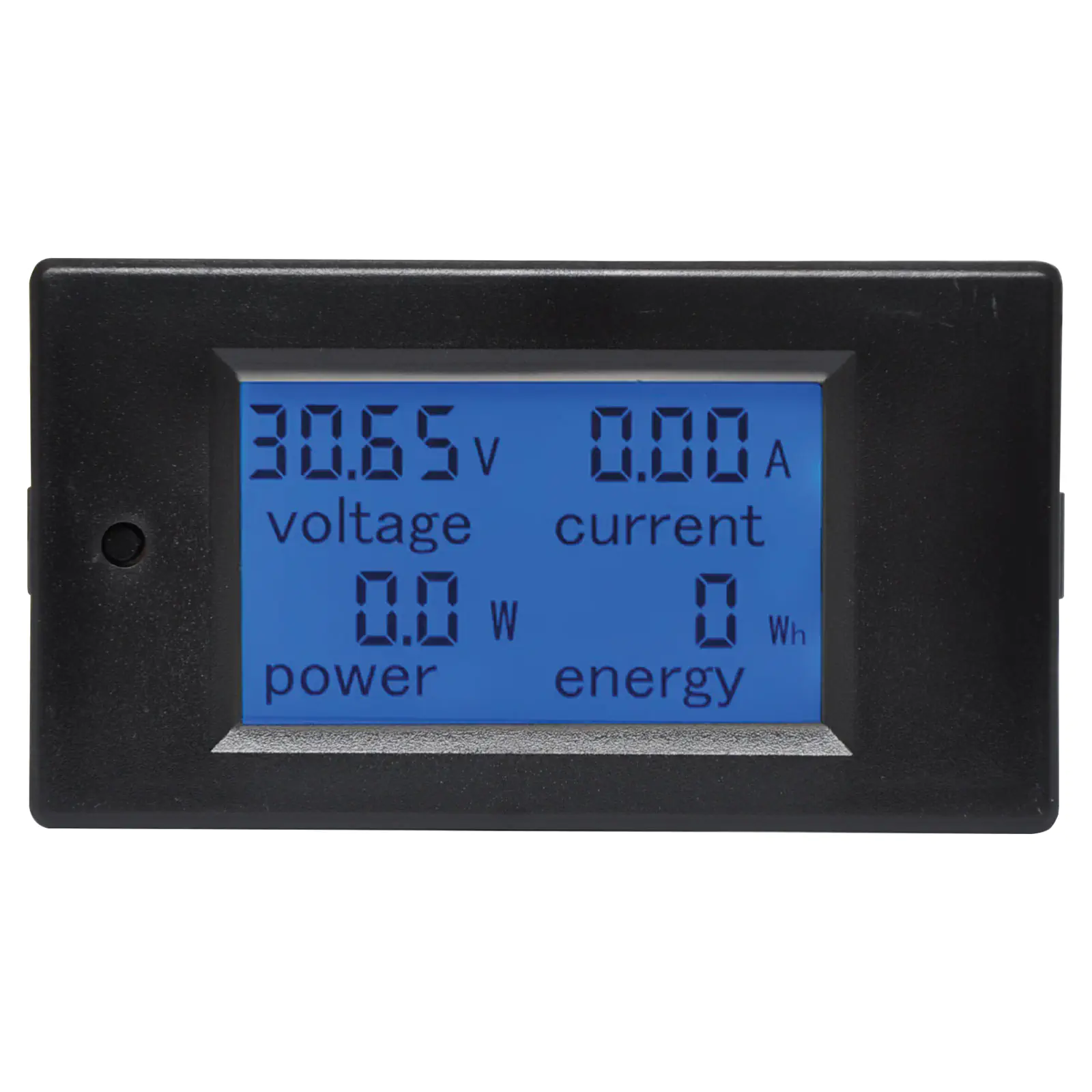

Panel Mount Multi-Function Digital Power Meter

Name: Panel Mount Multi-Function Digital Power Meter
SKU: Q0589
Price: 27.23 AUD
Availability: InStock

SKU: Q0589

This panel mount multi-function digital power level meter is suitable for applications requiring a professional finish and digital accuracy.

$27.23

All Prices Shown are (ex GST)

Bulk Pricing

ea	$27.23
4+	$24.50
6+	$21.77

i h

Overview
Details
Warranty
Downloads

Overview

A complete power monitoring panel with voltage, current, power and energy consumption (Wh) displayed simultaneously. Easy press fit mount with voltage alarm function. 2000W max. 8-100V DC. Cut out dimensions 84.5W x 44.5Hmm. Available with 20A internal load shunt.

Features:

Electrical parameter measurement function (voltage, current, active power, energy)
Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).
The reset function of energy key.
Store data when power off.
Large-screen LCD (display voltage, current, active power, energy at the same time)
Backlight function.

Specifications:

Working voltage: 8 - 100VDC

Test voltage: 8-100VDC

Rated power: 20A/2000W

Measurement accuracy: 1.0 grade]

Screen size: 30H x 51Wmm

Physical size: 89.5W x 49.5H x 24.5Dmm

Cutout dimensions: 84.6W x 44.6Hmm

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
