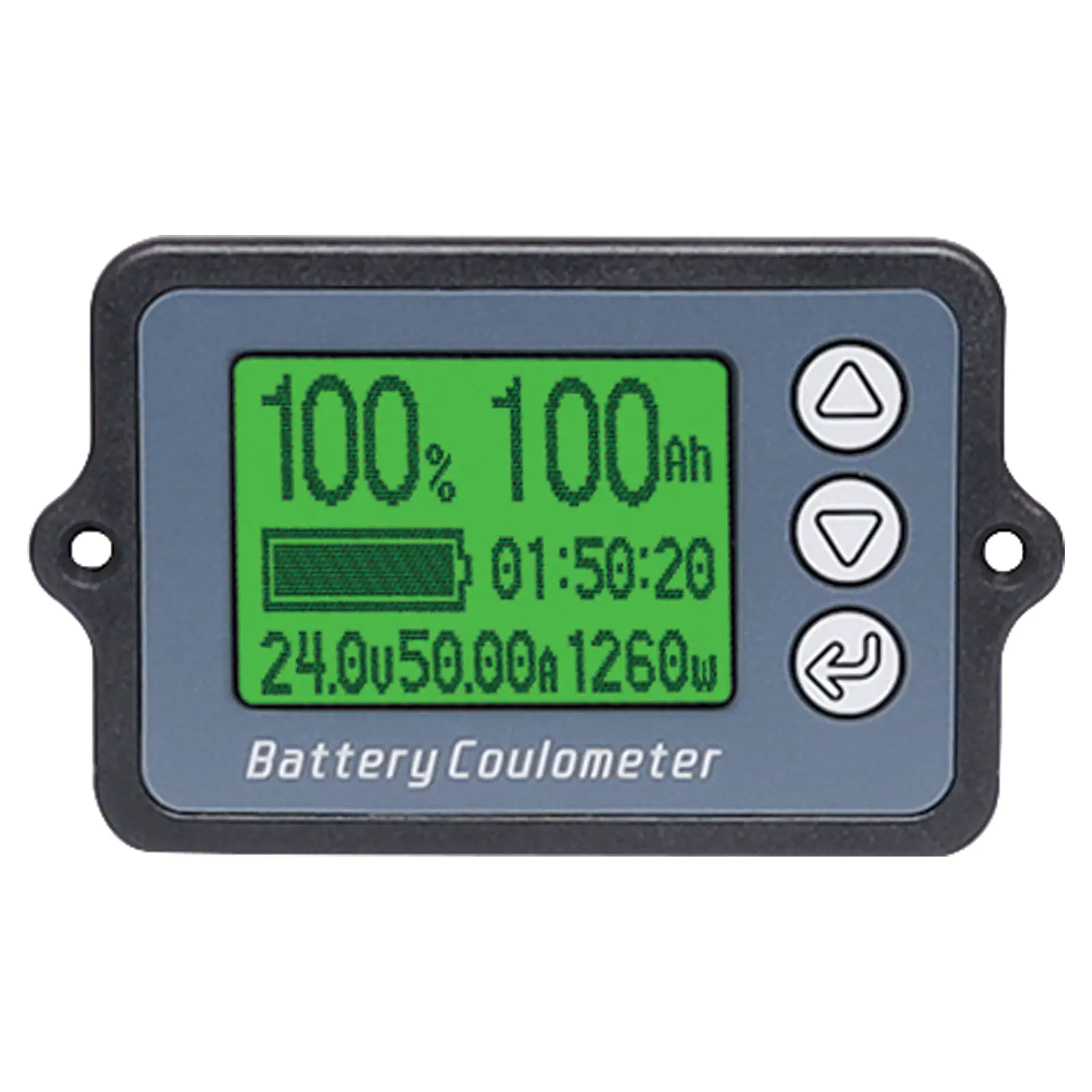

Flush Mount 50A Coulometer With Shunt

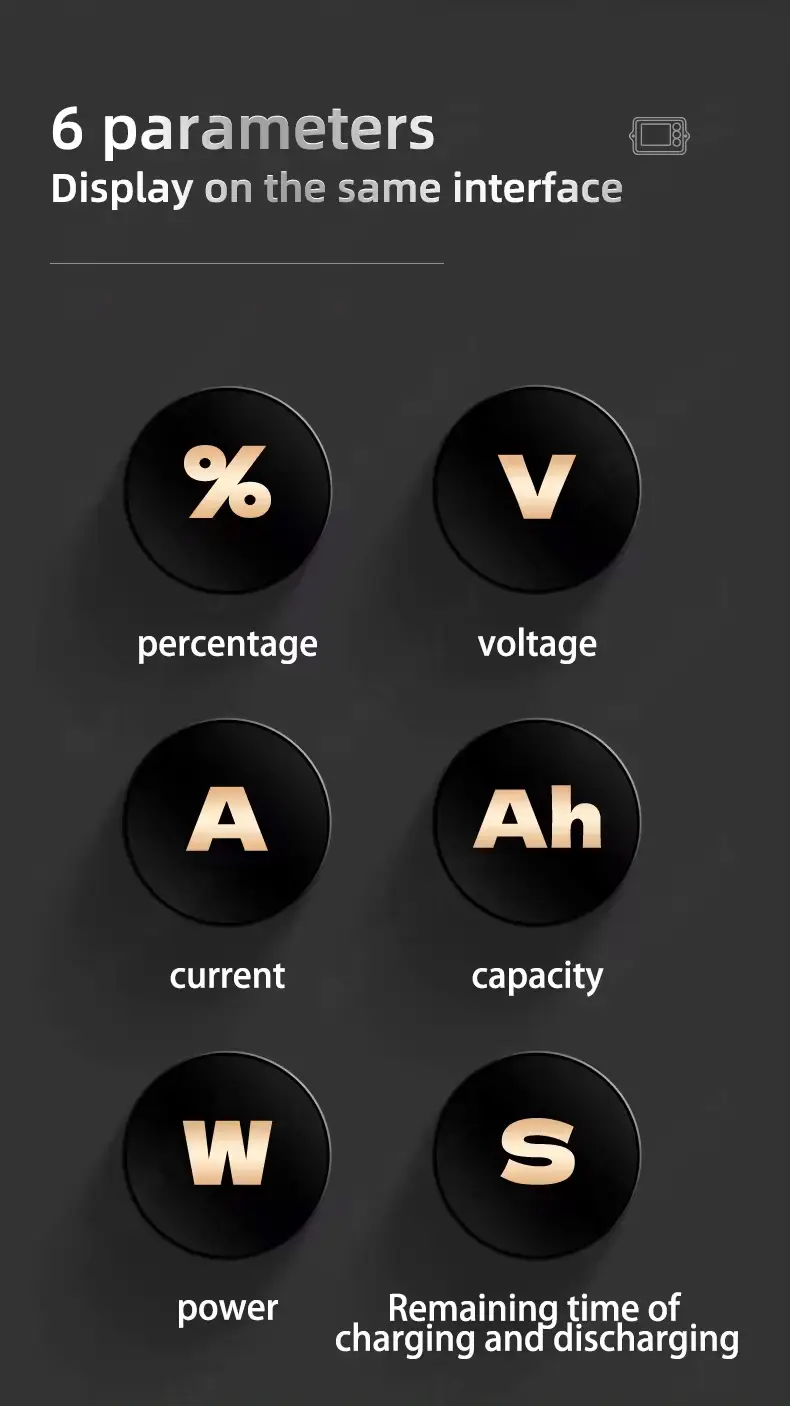

A compact backlit battery "fuel gauge" with high precision current measurement. It accurately detects battery voltage, current, power, real capacity and remaining run time of your connected battery (suitable for any type of chemistry and voltages between 8V to 120V. Includes 50A shunt with 1m connection cable. 0.1V resolution with 1% accuracy. Cut out dimensions: 53.5 x 37.5mm. Overall dimensions: 66 x 50 x 13mm.

Specifications:

Operating Voltage: 8.0V (min), 50.0V (regular), 120V (max)

Working Power Consumption (Backlighting): 6.0mA (regular), 8.0mA (max)

Standby Power Consumption (Backlit Off): 0.5mA (regular), 0.8mA (max)

Sleep Power Consumption: 50.0µA (regular), 60.0µA (max)

Voltage Acquisition Accuracy: ±1.0%

Current Acquisition Accuracy: ±1.0%

Capacity Acquisition Accuracy: ±1.0%

Backlight Turn-On Current: 50mA

The range of capacity values can be set: 0.1Ah (min), 100Ah (regular), 9999.0Ah (max)

Sampler Current (50A): 0A (min), 50.0A (regular), 75A (max)

Temperature Range: -10°C (min), 20°C (regular), 50°C (max)

Weight: 150g

Monitor Size: 66 x 40 x 14 mm

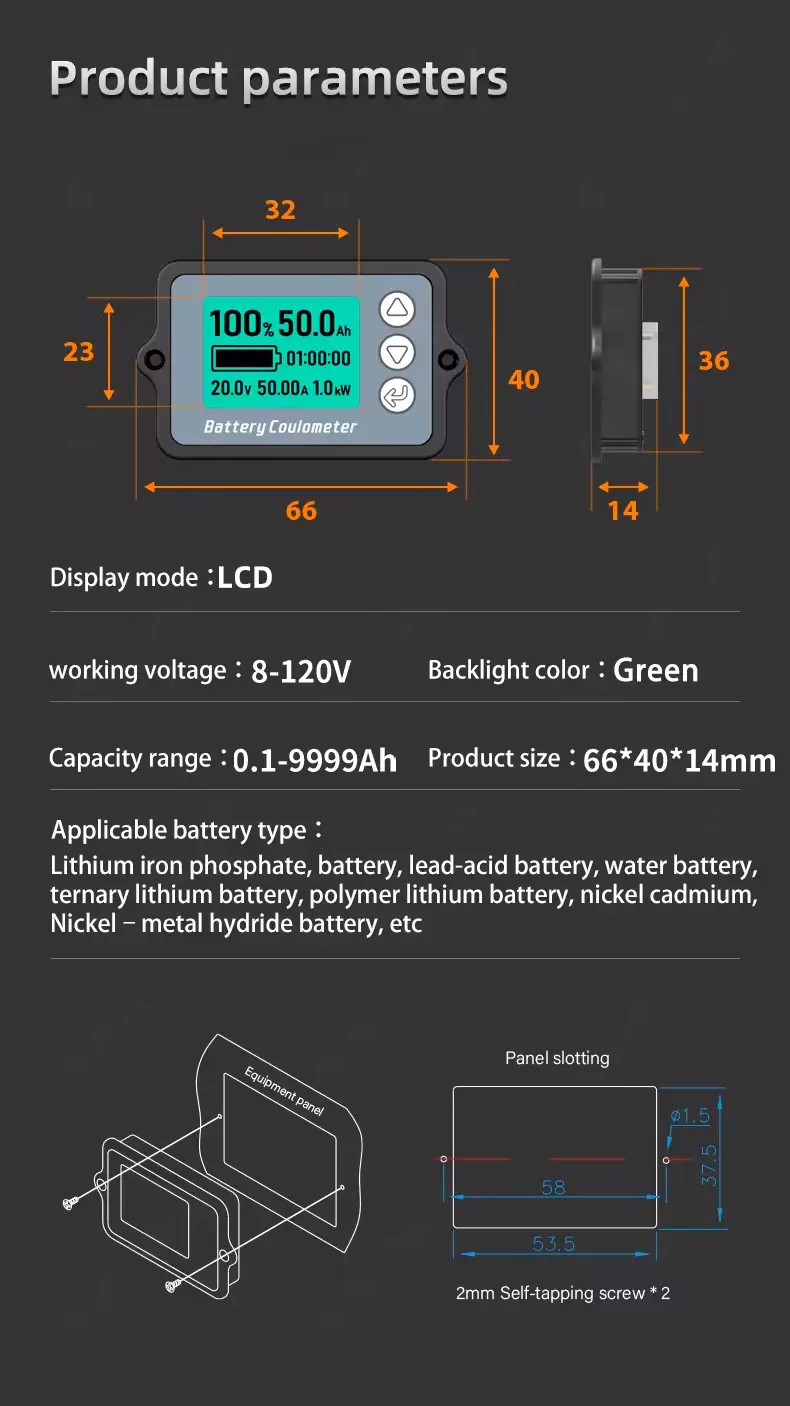

Panel Cutout: 53.5 x 37.5. (hole centres 58mm).

Features:

• Easy to read bright display.
• Display backlighting
• Battery capacity meter.
• Ideal for measuring run time for auxiliary batteries, portable and mobile equipment.
• Includes 50A shunt with sampling circuit.
• Configurable battery capacity.
• Adjustable "Full" and "Zero" voltages.
