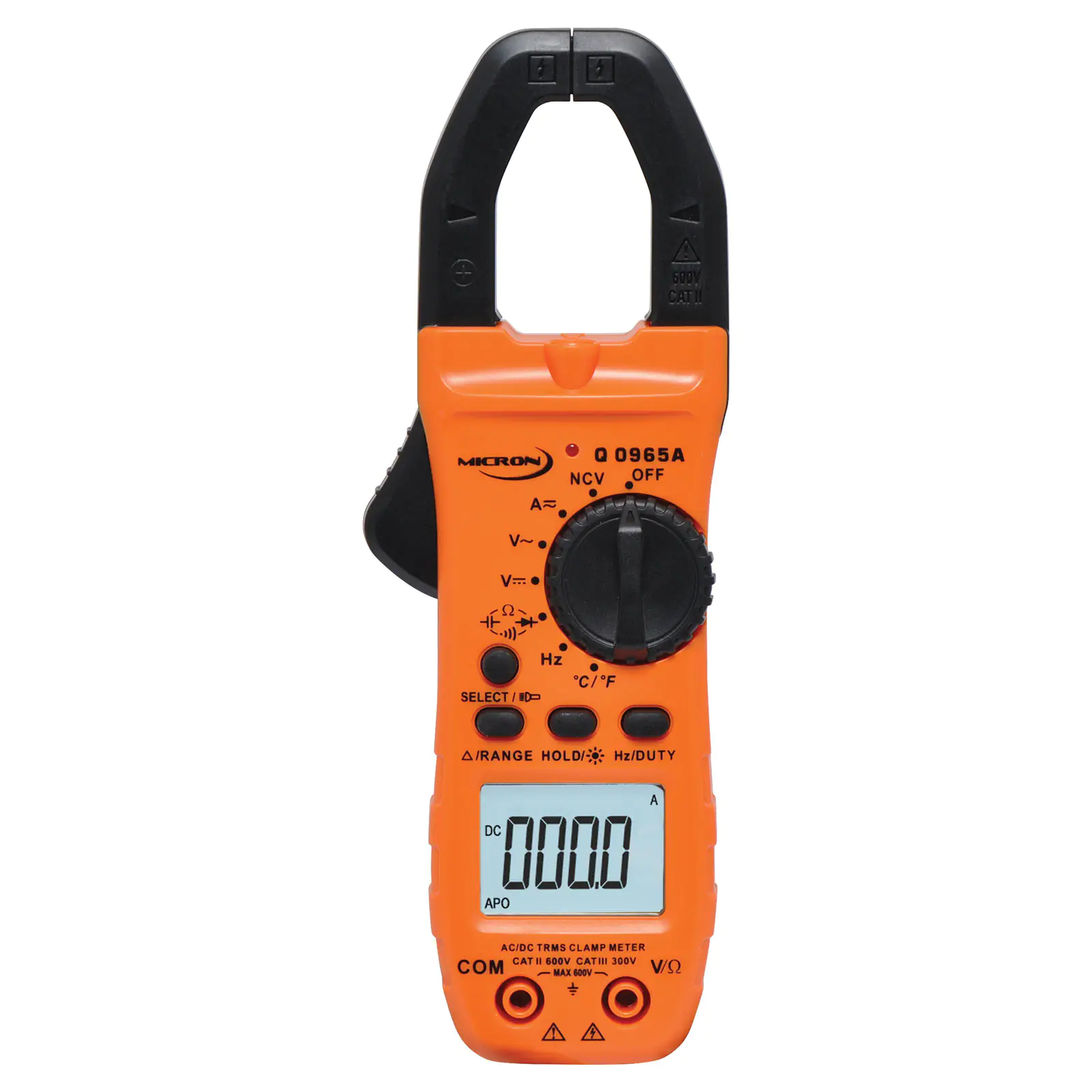

A clamp meter offering the flexibility of measuring AC and DC currents up to 800A. Simply clamp the jaws around the conductor and the display reads the DC or AC current present. It can test DC Volts, AC Volts, DC Amps, AC Amps, resistance, capacitance, frequency, temperature, temperature and continuity.

High Current AC/DC Clamp Meter 800A

Name: High Current AC/DC Clamp Meter 800A
SKU: Q0965A
Price: 81.77 AUD
Availability: InStock

by: Micron

SKU: Q0965A

$81.77

All Prices Shown are (ex GST)

Bulk Pricing

ea	$81.77
2+	$73.59
5+	$65.41

i h

Overview
Details
Warranty
Downloads

Overview

A clamp meter offering the flexibility of measuring AC and DC currents up to 800A. Simply clamp the jaws around the conductor and the display reads the DC or AC current present. It can test DC Volts, AC Volts, DC Amps, AC Amps, resistance, capacitance, frequency, temperature and continuity. Plus it features an internal non-contact voltage detector for sensing cabling or outlets with live AC voltages present. It includes data hold and relative measurement functions. An essential piece of test gear for high voltage technicians, instrument fitters and other electrical tradespeople. Supplied with high quality test leads, temperature probe, and carry case.

Specifications:

Voltage DC: 600mV - 600V (±0.5%+5d)

Voltage AC: 600mV - 600V (±1%+5d)

Current AC/DC: 800A (±1.5%+5d)

Resistance: 600Ω - 60MΩ (±1%+25)

Capacitance: 60nF - 6600µF (±5%+20)

Frequency: 20MHz (±1%+3)

Duty cycle: 5% - 99.9% (±1.2%+3d)

Continuity: 50Ω threshold, audible tone

Diode test: Yes

Display: 3.75 digit LCD, 6000 count, backlit

Dimensions: 65W x 36D x 186H mm

Features:

800A AC/DC range
10mA resolution
Backlit LCD
28mm clamp opening
Auto power off
6000 count LCD readout
Data hold and relative functions
Test leads, temperature probe and carry case included
2 x AAA battery included
Cat II 600V, Cat III 300V

Details

Products specifications

Warranty	2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
