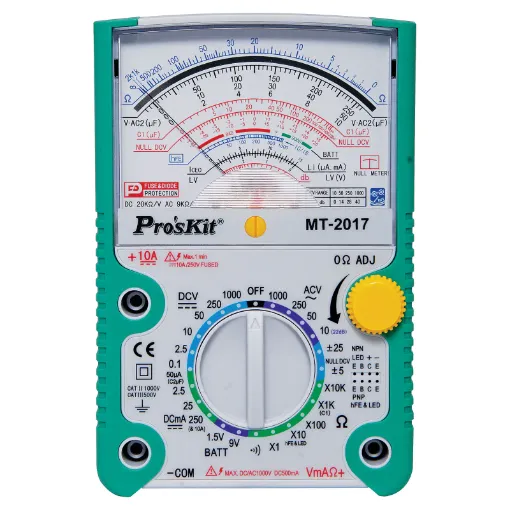

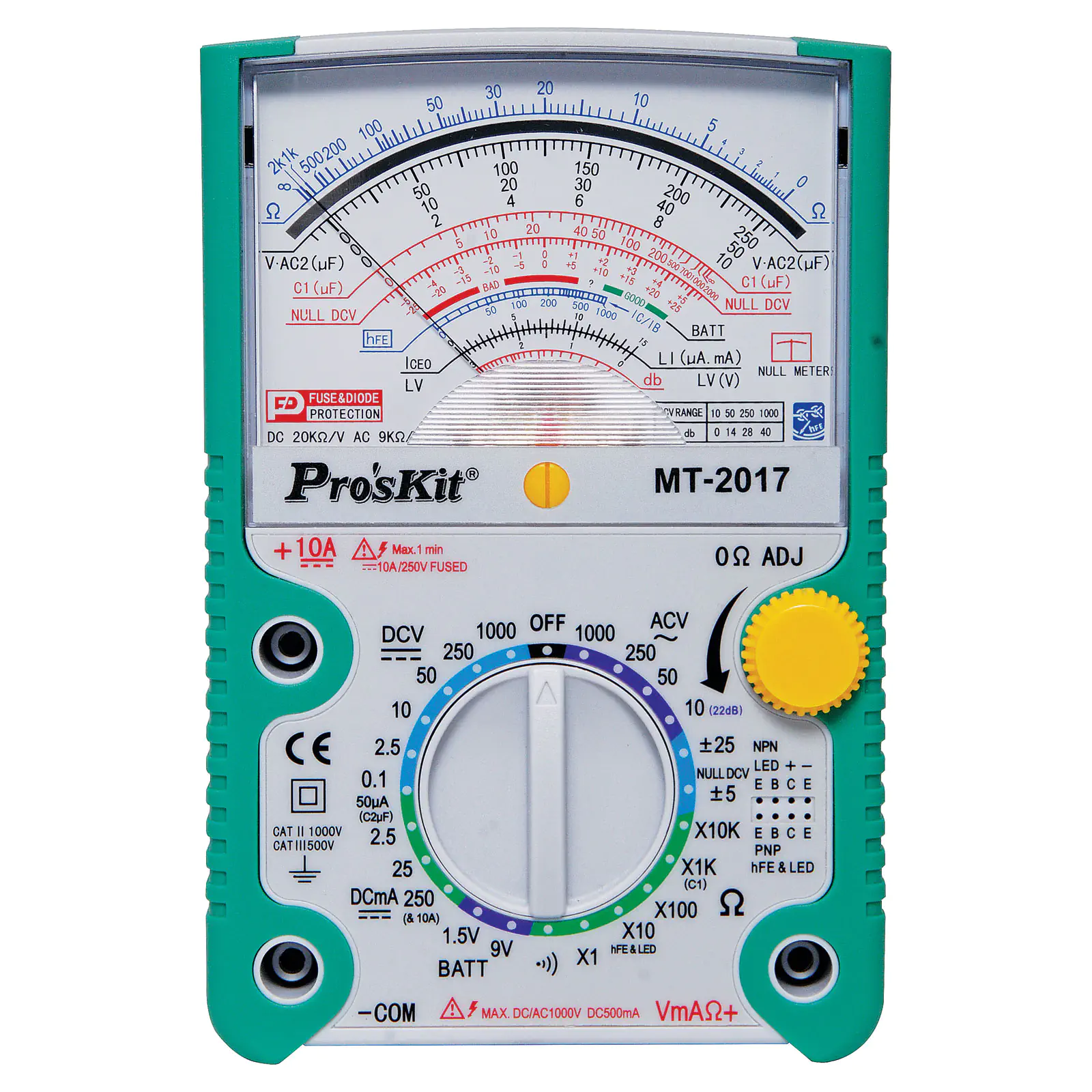

Analog Multimeter With Transistor Test

by: Pros Kit
SKU: Q1026A
This quality analogue multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. It has 20kO/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction.
Save $17.23 $45.45 $62.68

All Prices Shown are (ex GST)
Bulk Pricing
ea
$45.45 $62.68
2+
$45.45 $56.59
5+
$45.45 $50.23
i h

Overview

This quality analog multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. Analog multimeters are ideal for observing constantly varying quantities such as cyclic voltages or for speaker resonance testing. This multimeter has 20k ohm /Volt sensitivity with a colour scale and mirrored arc for parallax error reduction. Includes audible continuity tester, battery test range, and up to 10A DC current measurement. Complete with integral stand, fuse and diode protection and test leads.

Requires 1 x 9V battery and 2 x AAA batteries (sold separately)





Specifications:



DC volts: 0-0.1, 2.5, 10, 50, 250, 1000V ±4%

AC volts: 10, 50, 250, 1000V ±4%

DC amps: 0, 0.05, 2.5, 25, 250mA, 10A ±4%

Resistance: 1, 10, 100, 1k, 10kΩ

Battery test: 1.5V and 9V

Sensitivity: 20K Ohm/V DC, 9K Ohm/V AC

Protection: 500mA/250V and 10A/250V

Dimensions: 160L x 105W x 40H mm



Features:

  • Battery test range
  • Continuity tester
  • 10A DC current range
  • Integral stand
  • Fuse and diode protection
  • Moving coil to measure extremely cyclic voltages
  • Mirrored scale to minimise parallax error
  • Resistance range zero adjustment
  • Transistor hFE & LED tester

Details

Products specifications

Warranty 2 Years
Test and Measurement
Type Analog Multimeters

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
