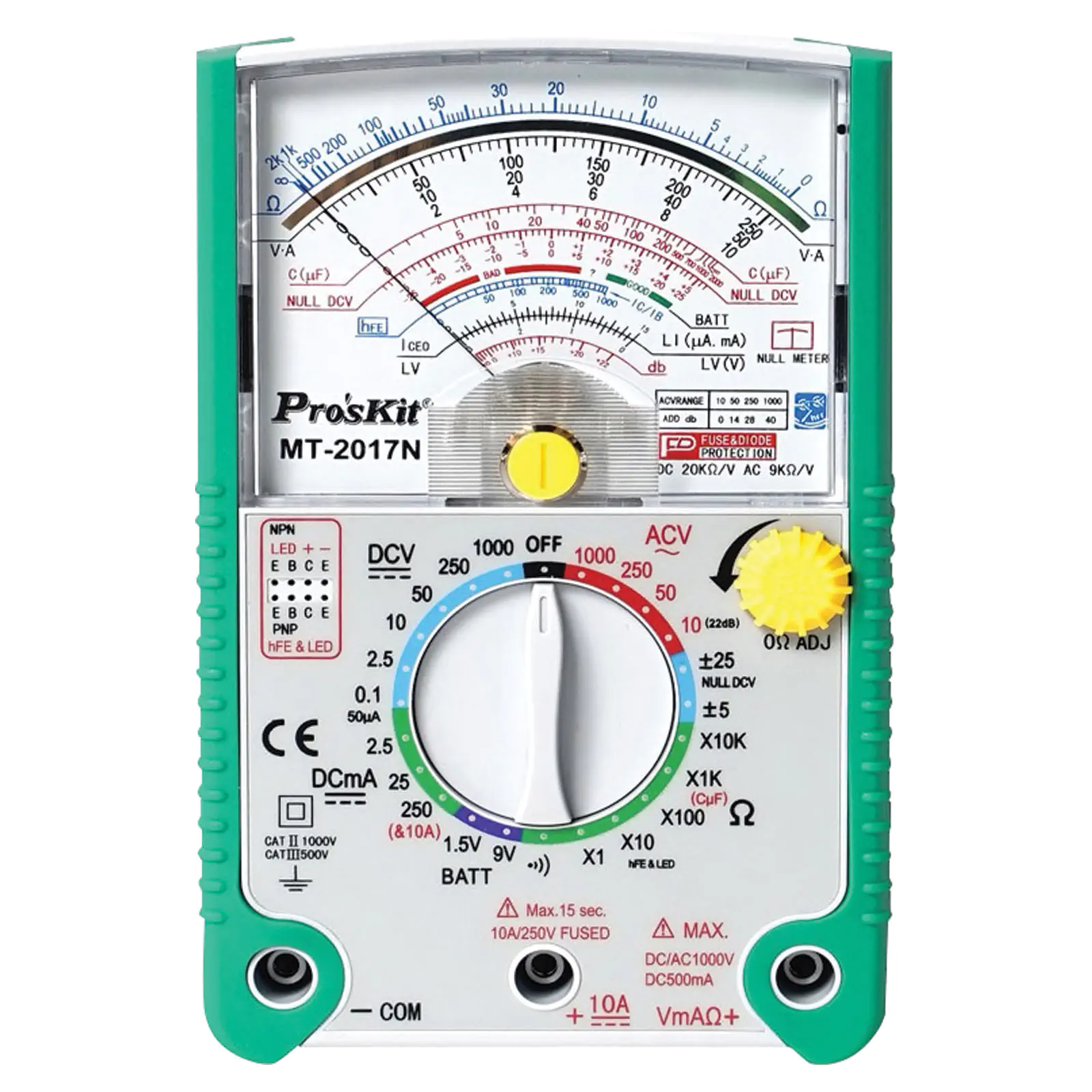

Analog Multimeter With Transistor Test

by: Pros Kit
SKU: Q1026B
This quality analog multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. It has 20kO/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
2+ $65.41
5+ $58.14
i h

Overview

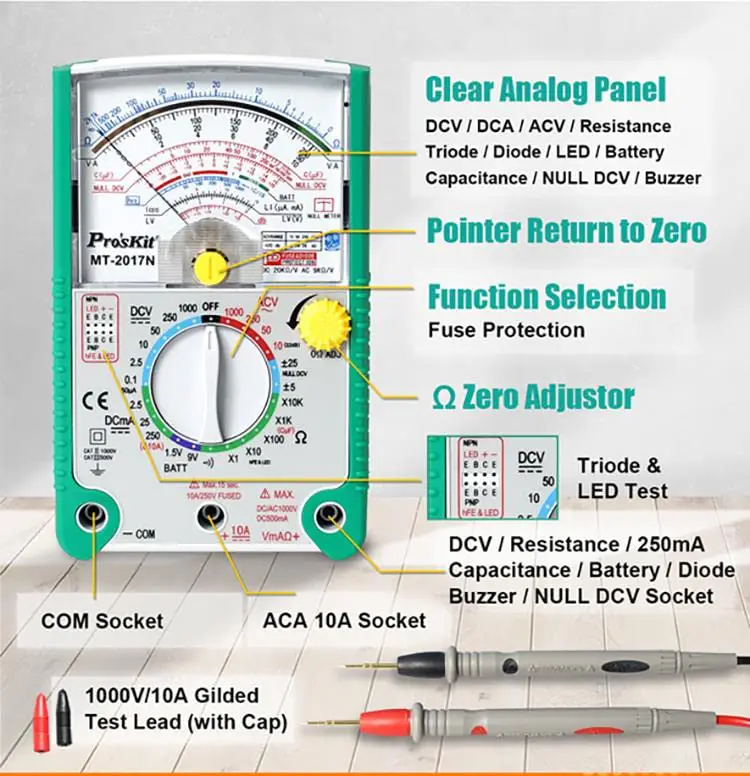

This quality analog multimeter by ProsKit is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. This meter has 20kΩ/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction. Includes audible continuity tester, battery test range, and up to 10A DC current measurement. Complete with integral stand, fuse and diode protection and test leads.

Requires 1 x 9V battery and 2 x AAA batteries (sold separately)





Specifications:



DC volts: 0.1, 0.5, 2.5, 10, 50, 250, 1000V ±3%

AC volts: 10, 50, 250, 1000V ±4%

DC amps: 50µA, 2.5mA, 25mA, 250mA, 10A ±3%

Resistance: 1Ω, 10Ω, 100Ω, 1KΩ, 10K?

Battery test: 1.5V and 9V

Sensitivity: 20KΩ/V DC, 9KΩ/V AC

Protection: 500mA M205

Dimensions: ˜105W x 40D x 160H mm

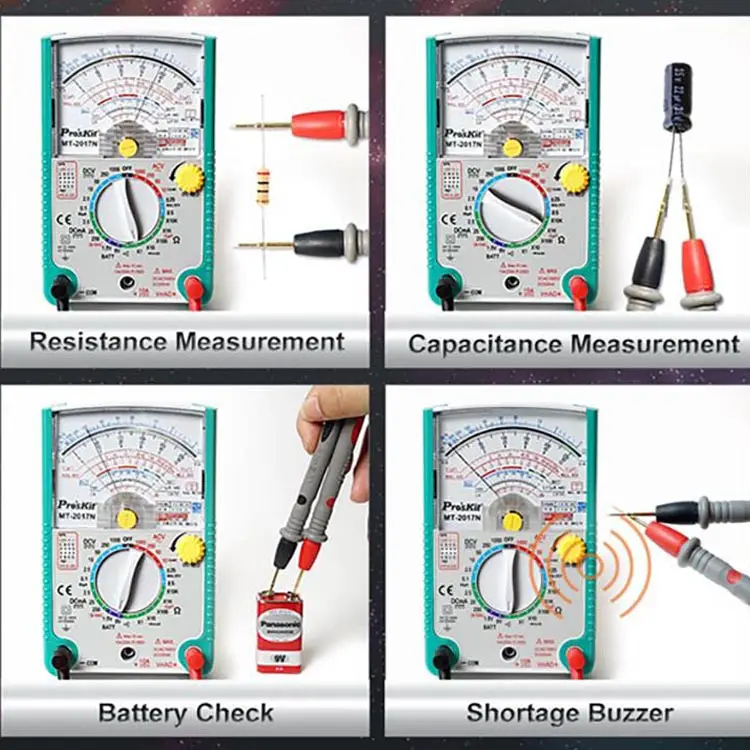

Features:

  • Battery test range
  • Continuity tester
  • 10A DC current range
  • Requires 9V battery
  • Integral stand
  • Fuse and diode protection
  • Moving coil to measure extremely cyclic voltages
  • Mirrored scale to minimise parallax error
  • Resistance range zero adjustment
  • Transistor hFE & LED tester
  • CAT II 1000V / CAT III 500V




Q1026B
Q1026B



Details

Products specifications

Warranty 12 Months
Test and Measurement
Type Analog Multimeters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
