NEW

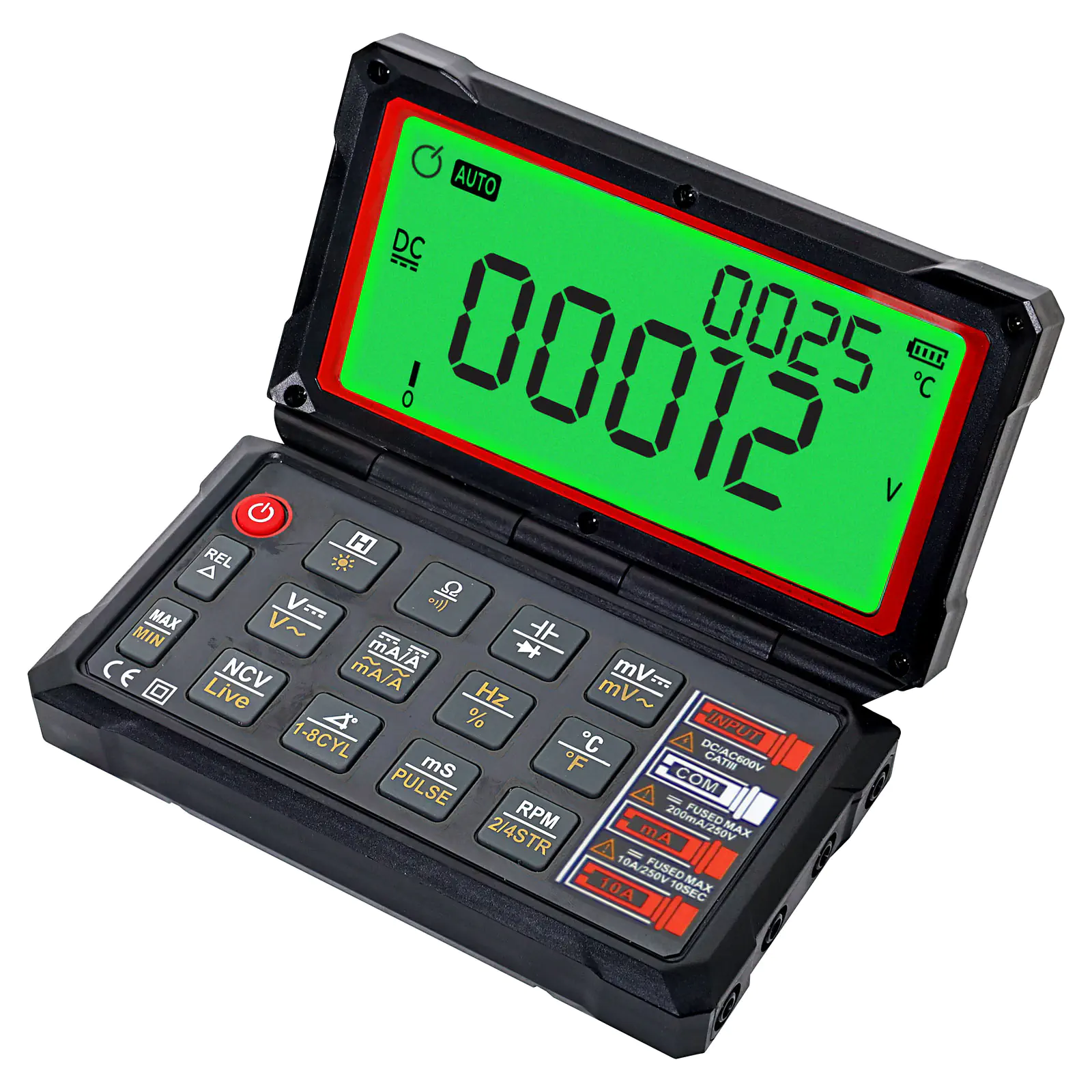

Autoranging Folding Digital Multimeter

by: Micron
SKU: Q1058
This folding autoranging digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
5+ $71.82
i h

Overview

This folding autoranging digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits. Plus features such as dwell angle, RPM engine speed and duty cycle it can also be utilised in automotive servicing. The folding design and rugged case stays put on any surface while testing, making it great for auto electricians and working in tricky spaces. Additional measurement features include  AC/DC voltage & current, resistance, capacitance, frequency, temperature and more! Features a 20000 count easy read screen with green backlighting. Includes probes, USB C charging cable and carry case. Cat III 600V





Specifications:



Automatic function and range selection

Full-range overload protection

Maximum permissible voltage between the probe and earth: 1000 V DC or 750 V AC

Operating height: Max. 2000m

Display: LCD Maximum counts: 20000

Polarity indication: automatic, '' – '' indicates negative polarity

Over range display: ''OL'' or “-OL''

Sampling rate: approx. 2 times per second

Unit display: function display, battery display

Automatic close-down time: approx. 15 minutes

Power supply: 3.7 V/1800 mAh lithium battery

Battery undervoltage indication: LCD displays “(Battery Icon Displayed)”

Temperature coefficient: < 0.1 x accuracy /℃

Operating temperature: 0ºC-40ºC

Storage temperature:-20℃-60℃



Features:

  • Large easy to read 20000 count screen
  • Folding design stays stable on any surface
  • Use it on the bench top or in the field
  • Autoranging
  • Handy automotive testing functions
  • Non-contact AC voltage detection >90V AC
  • Data hold, min/max relative modes
  • In-built lithium battery pack - no batteries required!
  • USB C rechargeable
  • Temperature measurement (sensor included)



Details

Products specifications

Warranty 12 Months
Test and Measurement
Type Digital Multimeters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
