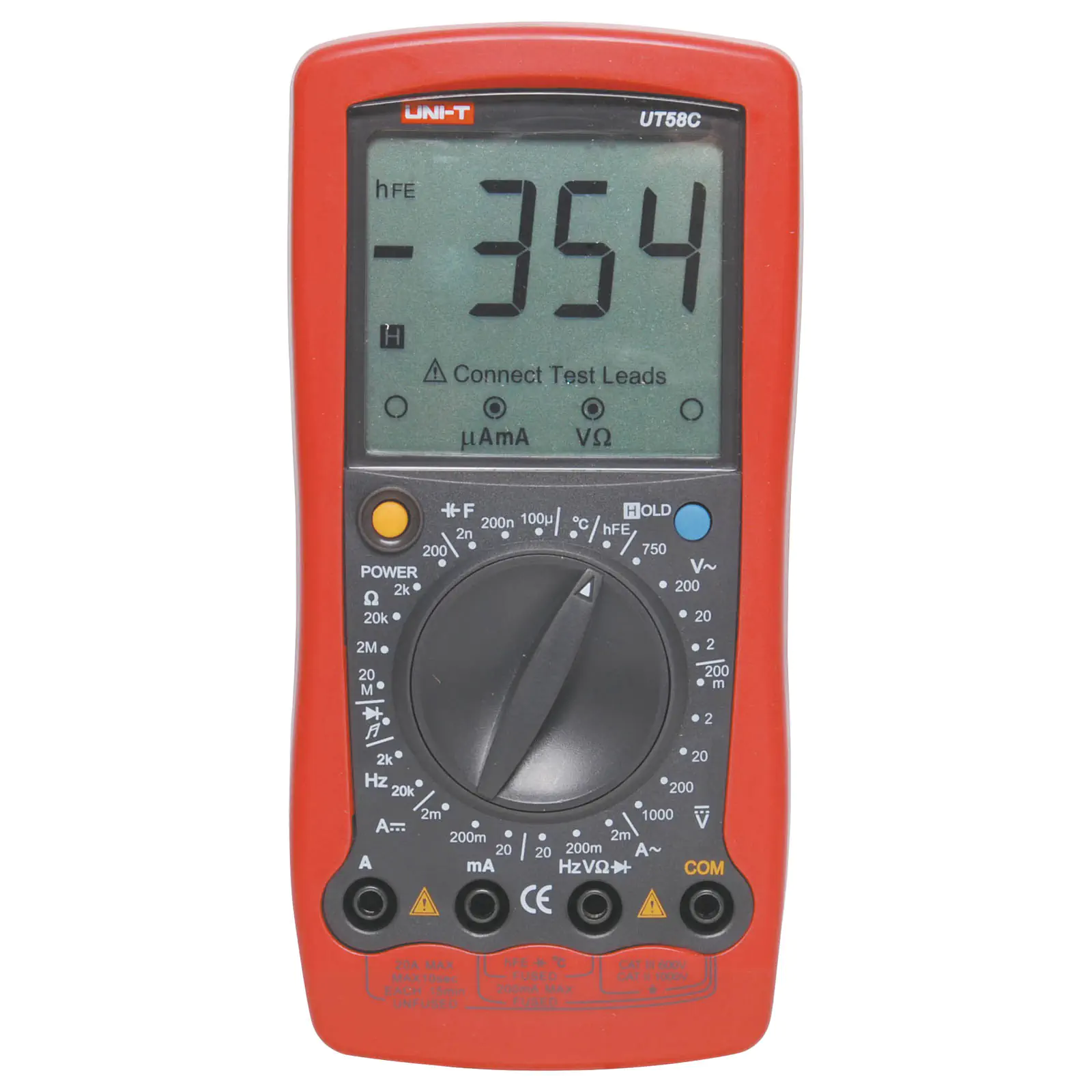

28 Range Digital Multimeter

SKU: Q1067
This digital multimeter features an extra large display making it very easy to read. It has a multitude of useful features including transistor tester, capacitor, frequency and temperature ranges.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
5+ $71.82
i h

Overview

This meter features an extra large display making it very easy to read. It has a multitude of useful features including transistor tester, capacitor, frequency and temperature ranges. When a range is selected the correct test lead connections are indicated on the display. The auto power-off feature switches the unit off after 30 minutes of inaction, saving battery power. The integral rubber holster makes this instrument perfect for the trades person's toolbox. Includes high quality test leads.





Specifications:

DC Volts: 200mV, 2V, 20V, 200V, 1000V

AC Volts: 2V, 20V, 200V, 1000V

DC Amps: 2mA, 200mA, 20A

AC Amps: 2mA, 200mA, 20A

Capacitance: 2nF, 200nF, 100µF

Frequency Counter: 2kHz to 20kHz

Resistance: 200Ω, 2kΩ, 20kΩ, 2MΩ, 20MΩ

Temperature:-40°C to 1000°C

Continuity: Audible Tester

Diode Tester: Included

Transistor Test: Measures hFE

Display: 3.5 digit LCD, 1999 count

Protection: 500mA M205 / 630mA 2AG fused, no fuse on 20A range

Dimensions: ˜86W x 43D x 180H mm



Features:

  • On-screen test lead connection prompts
  • Capacitance measurement
  • Frequency counter
  • Temperature measurement
  • Continuity checker
  • Resistance to 20M ohm
  • Diode check
  • Continuity buzzer
  • Transistor checker
  • Auto power off after 30 minutes
  • Massive 20A DC current range
  • Rubber holster included
  • Battery included
