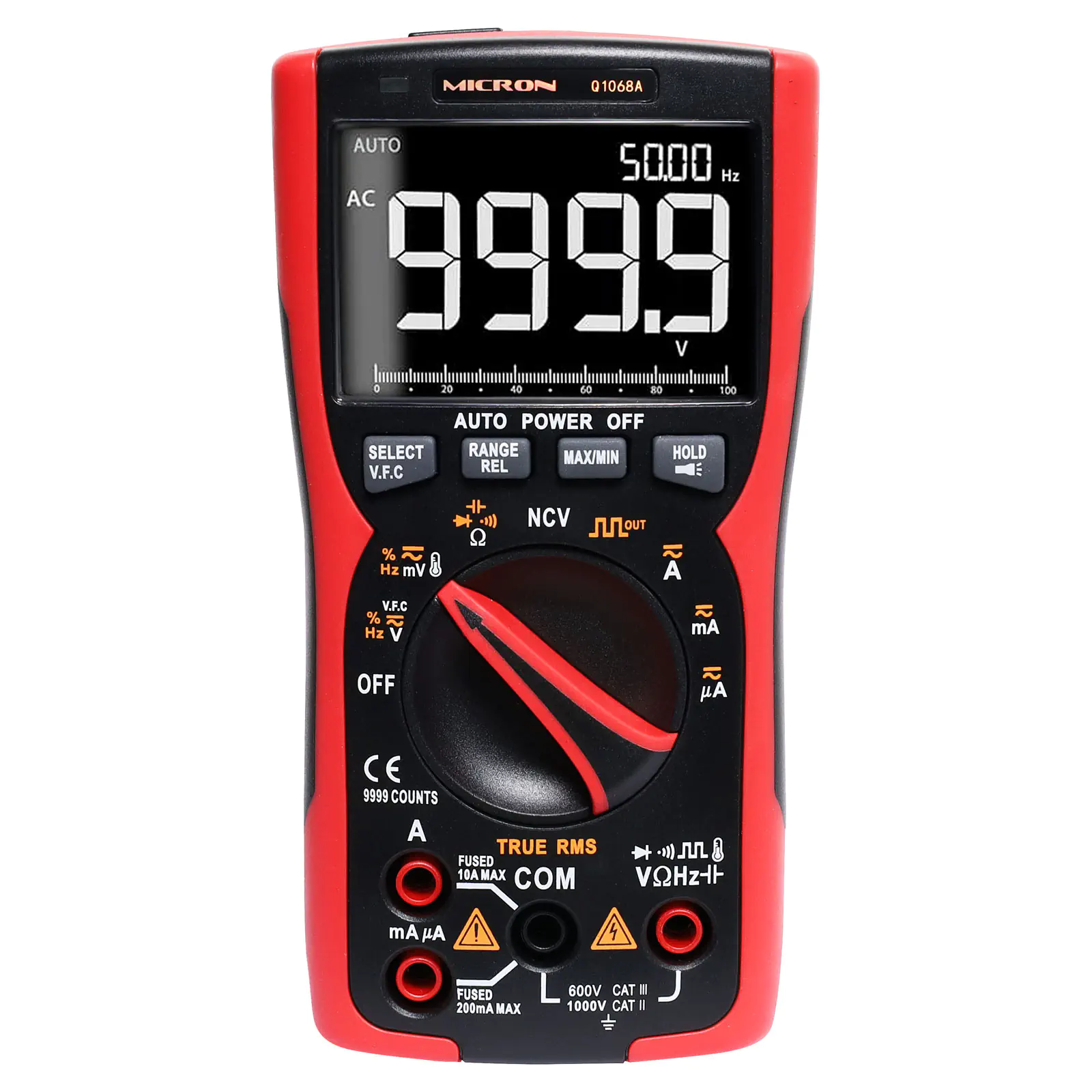

Autoranging True RMS Digital Multimeter

by: Micron
SKU: Q1068A
With in-built AC mains detection. This is one of the best digital multimeters we have evaluated when it comes to build quality and feature set. Its perfect for the serious enthusiast or tradesperson. LCD bargraph. 3.75 digit display. Mode assistance indicators.
$99.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $99.09
2+ $90.00
4+ $80.91
i h

Overview

A rugged do-it-all meter is perfect for a serious electronics enthusiast, electrical tradesperson or service tech. The 9999 count 3.75 digit display also features a LCD bargraph and helpful mode indicators. Standard measurement ranges include AC/DC voltage & current, resistance, capacitance, temperature, frequency & duty cycle. In addition, the top of the meter has an AC sensor and flashing LED which enables detection of lethal mains voltages in circuits or wiring. The rubberised case offers excellent physical protection. Includes carry case, temperature probe, high quality rubber insulated test leads and 3 x AAA batteries.





Specifications:



Voltage DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V (±0.5%+3d)

Voltage AC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 750V (±1%+3d)

Current AC/DC: 99.99µA, 999.9µA, 9.999mA, 99.99mA, 999.9mA, 9.999A (±1%+3d)

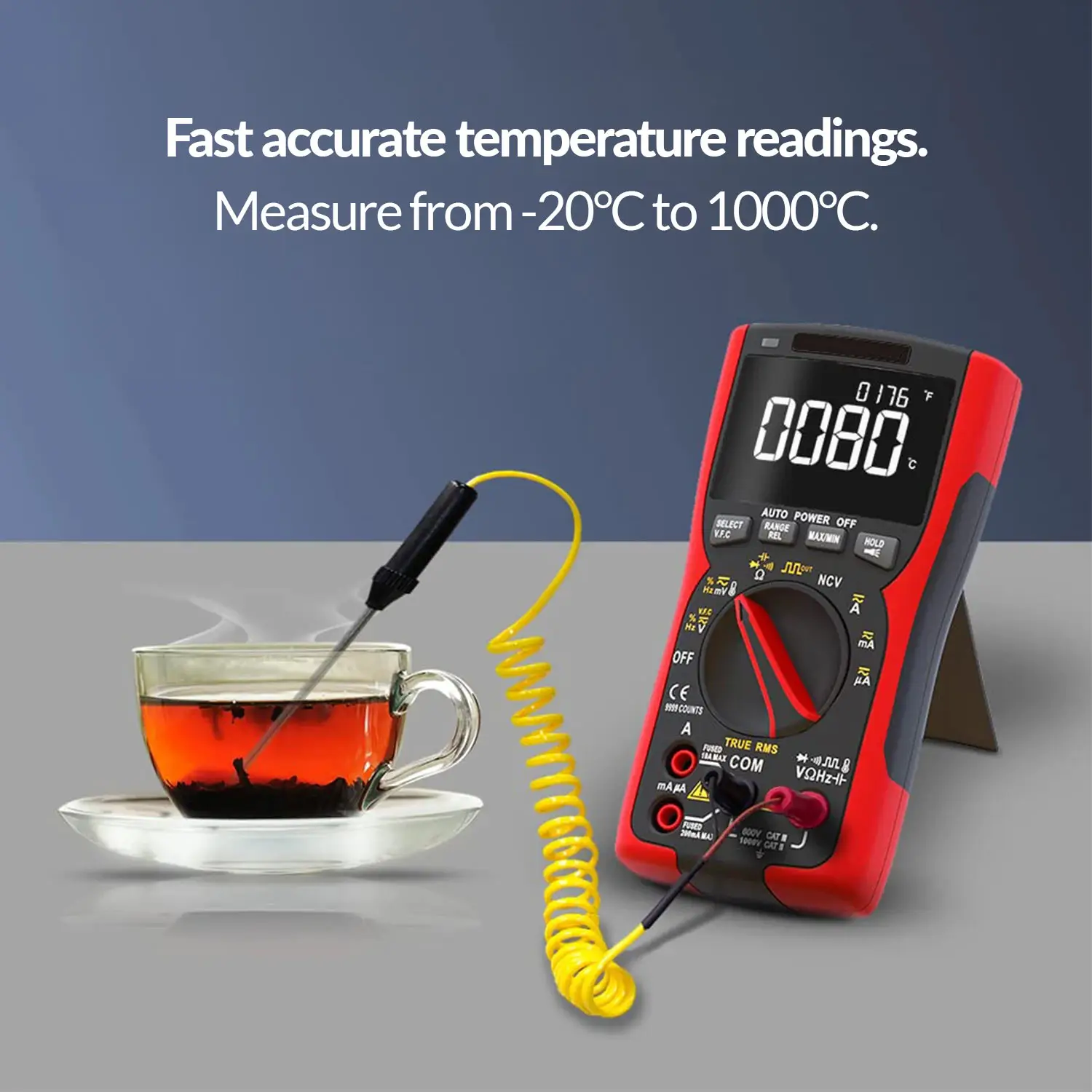

Temperature: -20°C to 1000°C (±2.5%+5d)

Resistance: 99.99Ω, 999.9Ω, 9.999kΩ, 99.99kΩ, 999.9kΩ, 9.999MΩ, 99.99MΩ (±3%+5d)

Frequency: 99.99Hz, 999.9Hz, 9.999Hz, 99.99kHz, 999.9kHz, 5MHz, (±0.1%+2d)

Capacitance: 9.999nF, 99.99nF, 999.9µF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2.5%+5d)

Duty cycle: 1% - 99%

Diode test: Yes

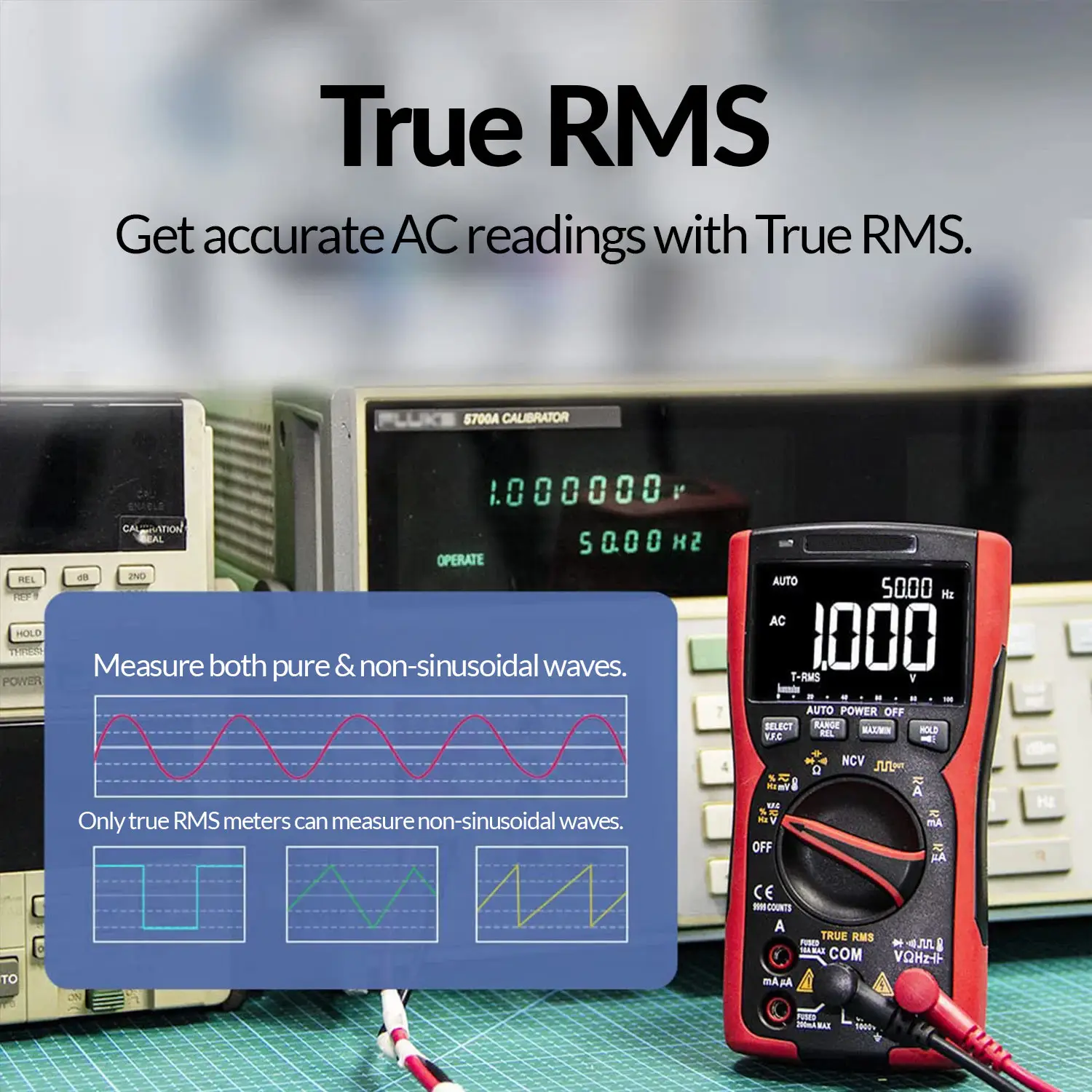

True RMS: Yes

Data Hold: Yes

Low battery indication: Yes

Auto power off: Yes

Protection: 250V/10A fused

Ranging: Auto/Manual

Update Rate: 3 Times/Second

Display: 3.75 digit LCD, 9999 count, backlit

Dimensions: ˜ 76W x 37D x 147H mm

Weight: 191g (without batteries)

Battery Type: 1.5V AAA Battery x 3

Operating Temperature: 0°C to 40°C

Operating Humidity: <75%

Storage Temperature: -20°C to 60°C

Storage Humidity: <80%

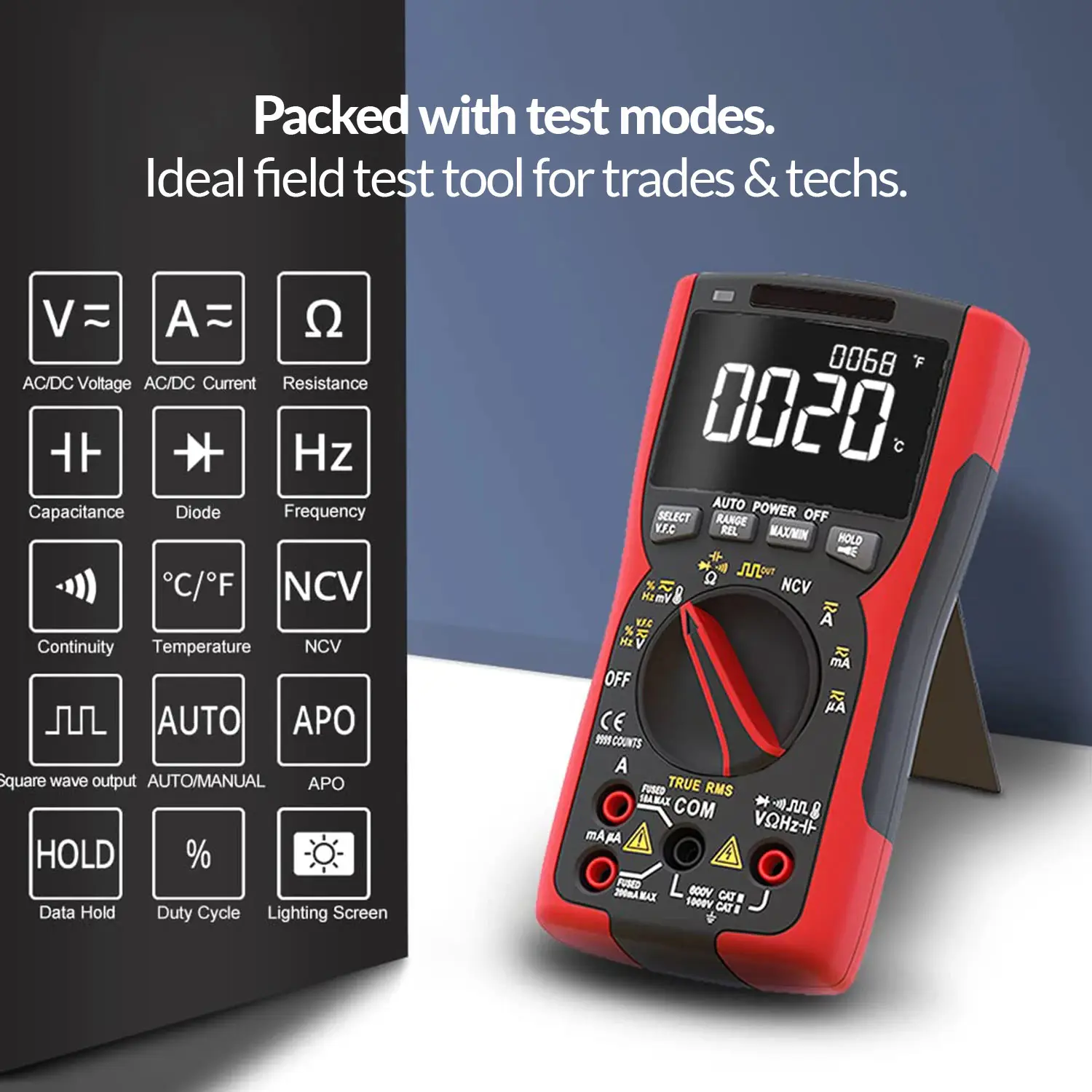

Features:

  • Auto ranging with manual override
  • Min/max & data hold

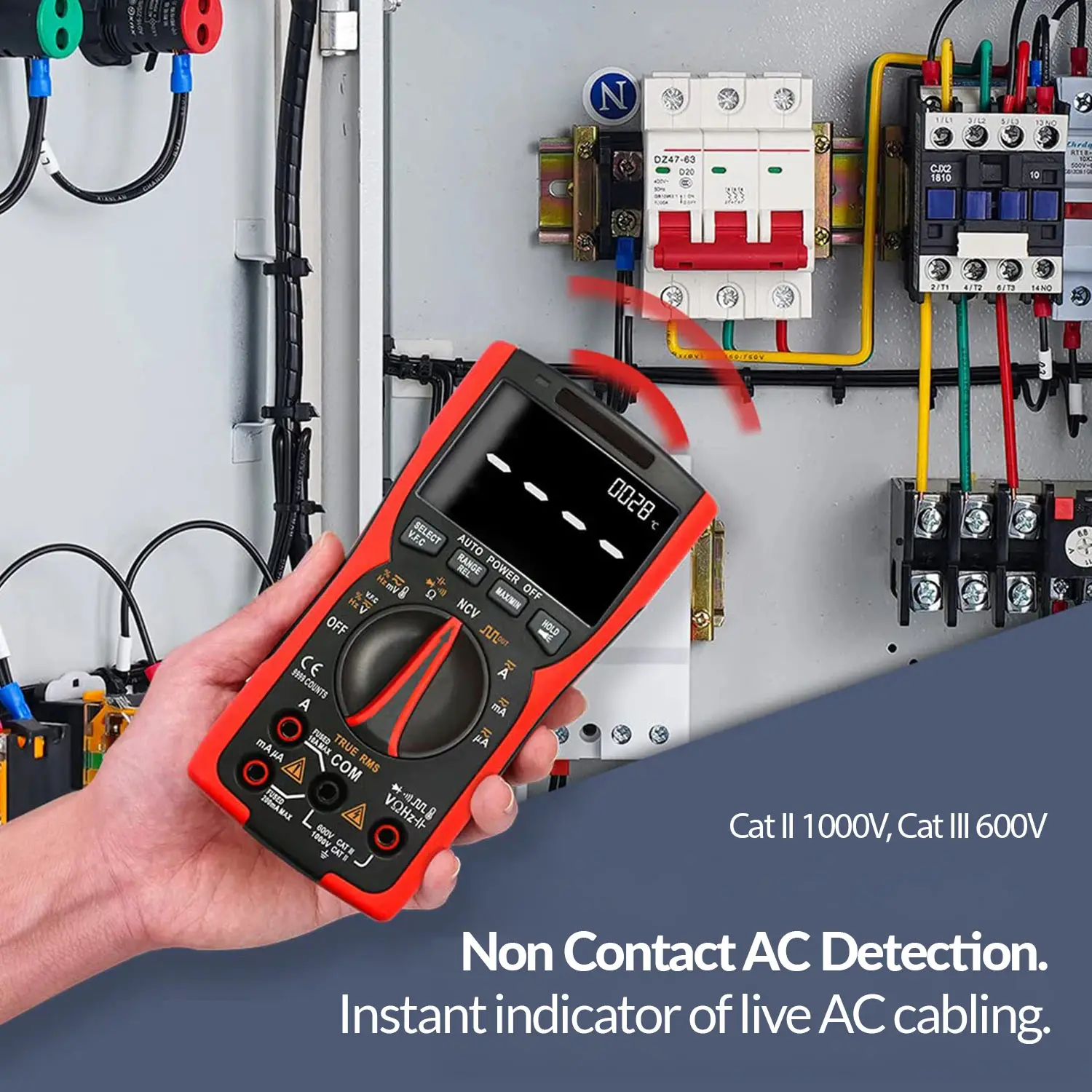

  • Non contact AC voltage detector
  • Frequency/duty cycle measurement
  • Temperature measurement
  • Backlit LCD screen with bargraph
  • Diode test
  • Continuity buzzer
  • 3 x AAA Batteries included
  • Auto power off
  • Cat II 1000V, Cat III 600V
  • 2 year warranty.





Q1068A
Q1068A
Q1068A
Q1068A

Details

Products specifications

Warranty 12 Months
Test and Measurement
Type Digital Multimeters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
