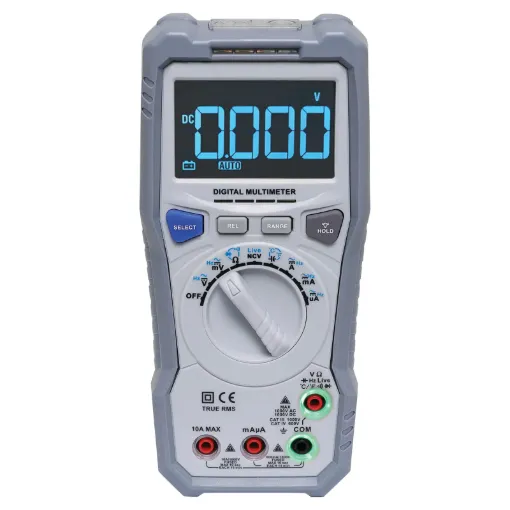

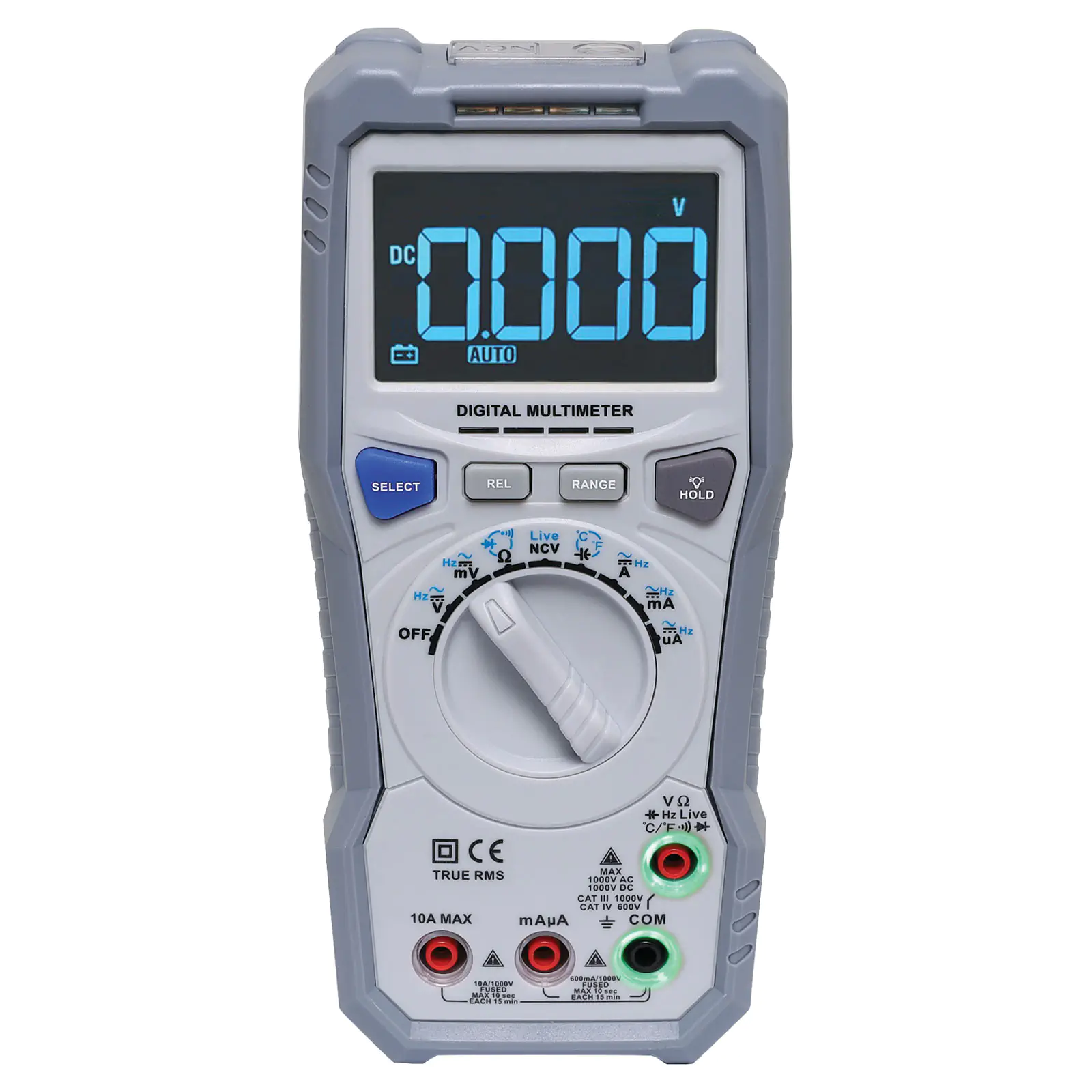

Autoranging True RMS Pro Digital Multimeter

SKU: Q1073A
With wireless charging adaptor - no batteries required! Plus, input jack LED indicators to remind users to plug leads into the correct jacks.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
5+ $71.82
i h

Overview

A professional grade multimeter for trades, technicians and regular multimeter users. It features a unique magnetic USB wireless charger allowing you to keep your multimeter charged up and ready to go at all times. Its clear, crisp reverse backlit 6000 count screen offers sharper contrast and larger viewing angle than traditional DMM LCD readouts, particularly in sunlight. Packed with features such as non-contact voltage detection, live wire testing, temperature, LED light and diode test - in addition to regular DMM functions. When a function is selected LED lights illuminate in the jack sockets showing which sockets to plug the test leads into. Supplied with charging cable, Qi wireless charging adaptor, high quality silicon rubber test leads & K type temperature probe.


Please see Q1055A as the carry case to suit this digital multimeter in accessories listed below. The multimeter can be recharged through a USB port on your computer or using a USB power supply, we recommend using M 8861A which is sold separately (see accessories listed below).





Specifications:



Voltage AC/DC: 600mV, 6V, 60V, 600V, 1000V (DC ±0.5%+5d), (AC ±1.2%+5d)

Current AC/DC: 600µA, 6000µA, 60mA, 600mA, 10A (DC ±1.2%+5d), (AC ±1.5%+5d)

Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ (±0.8%+5d)

Frequency: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz (±1.5%+5d)

Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, 60mF (±5%+5d)

Temperature: -20°C - ˜1000°C (±2%+2d)

Diode test: Test voltage 2V max

Continuity test: Less than 50Ω

Protection: 1000V/10A fused

Display: 3.75 digit LCD, 6000 count, backlit

Dimensions: ˜ 89W x 43D x 192H



Features:

  • True RMS AC measurement
  • 6000 count reverse backlit LCD
  • Autoranging
  • Frequency counter to 10MHz
  • Capacitance measurement
  • Fused 10A input
  • Temperature mode (°C/°F)
  • Test socket LED lights
  • Continuity and diode test
  • Internal rechargeable lithium battery
  • Range hold & relative mode
  • Data hold
  • Wireless USB charging adaptor
  • Cat III 1000V/Cat IV 600V

Details

Products specifications

Warranty 2 Years
Test and Measurement
Type Digital Multimeters

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instruction Manual
PDF
