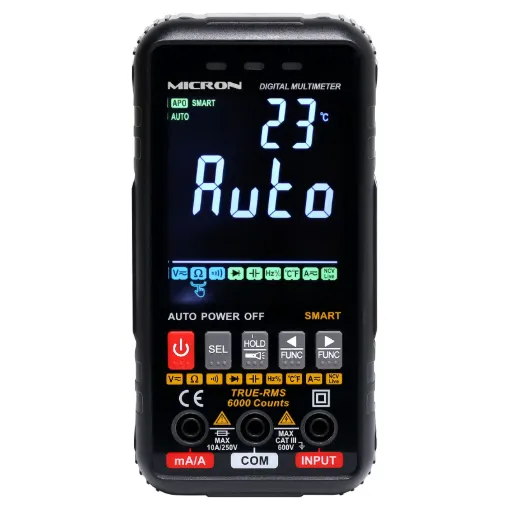

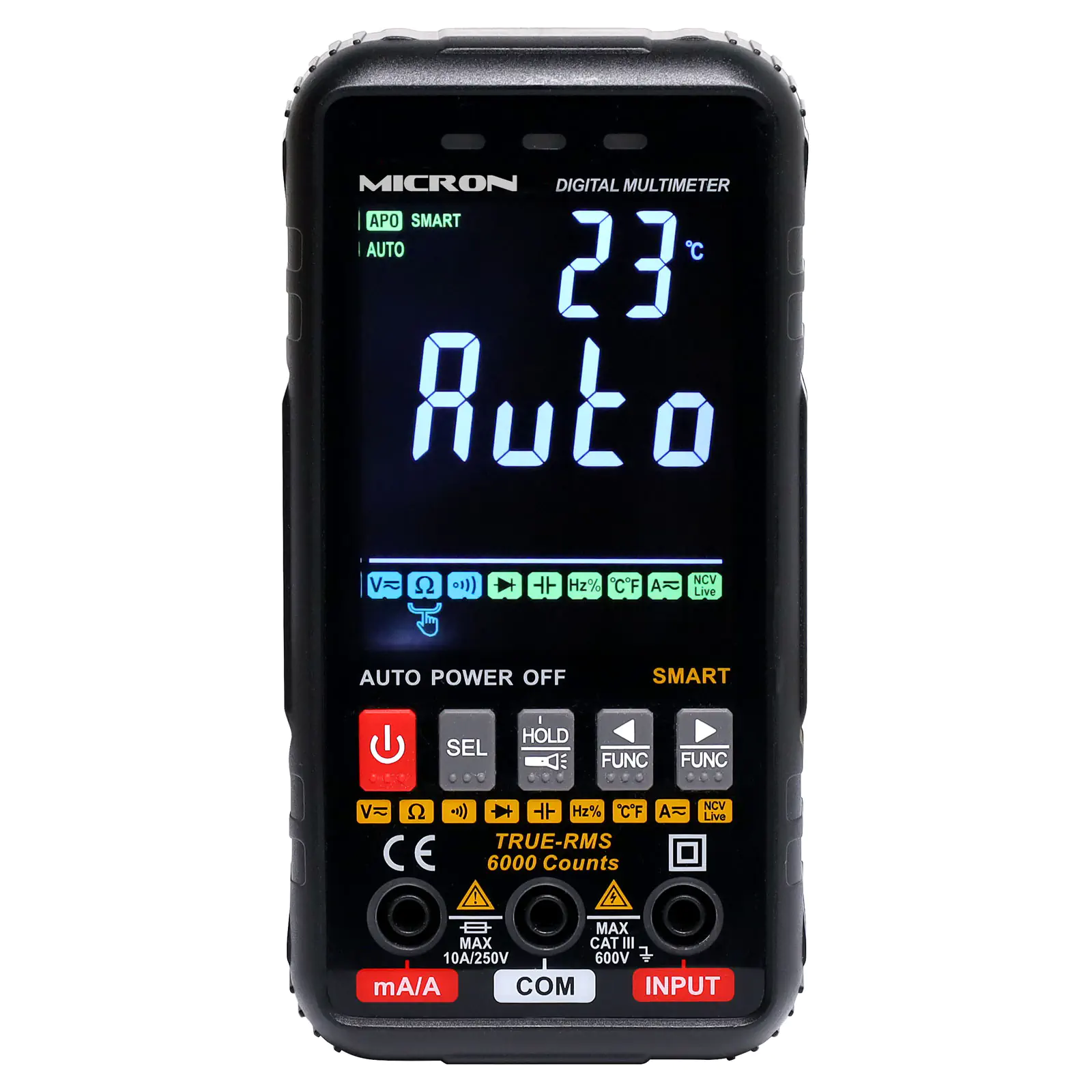

Autoranging True RMS Digital Multimeter with NCV

by: Micron
SKU: Q1089
This compact true RMS digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits.
$71.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $71.82
2+ $64.77
4+ $57.50
i h

Overview

This compact true RMS digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits. Its auto-ranging push button design simplifies operation and includes handy features such as test jack indicators to ensure you never plug a cable into the wrong socket. In addition it is capable of measuring, AC/DC voltage & current, resistance, continuity, capacitance, frequency/duty cycle, temperature and more!

A non-contact AC voltage detector is included providing a safe way to detect the presence of live AC wiring during testing. Cat III 600V protection rating with 5999 count easy read screen.

Includes probes, temperature sensor and carry case.

Kit Contents:

1 x Multimeter

1x Test Lead Pair

1 x K-type probe

4 x 1.5V AAA Battery LR03

1 x Carry Case

1 x Manual





Specifications:



Voltage DC: 600mV, 6V, 60V, 600V (±0.5%+3d)

Voltage AC: 6V, 60V, 600V (±1%+3d)

Current DC: 600mA, 6A, 10A (±1,2%+3d)

Current AC: 600mA, 6A, 10A (±1,2%+3d)

Capacitance: 6nF, 60nF, 600nF, 6uF, 60uF, 600uF (±4%+5d), 6mF (±5%+5d), 60mF (±10%+10d)

Ohms: 600Ω, 6KΩ, 60KΩ, 600kΩ, 6MΩ (±1%+5d), 60MΩ (±2%+10d)

Continuity: 50Ω threshold, audible tone

Diode test: displays diode voltage drop, OC voltage 3.5V.

Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)

Frequency: 6Hz - 10MHz (±1%+3d)

Temperature: -40°C to 1000°C (±2°C). - K type probe only.

Display: 3 5/6 digit, 5999 count, backlit

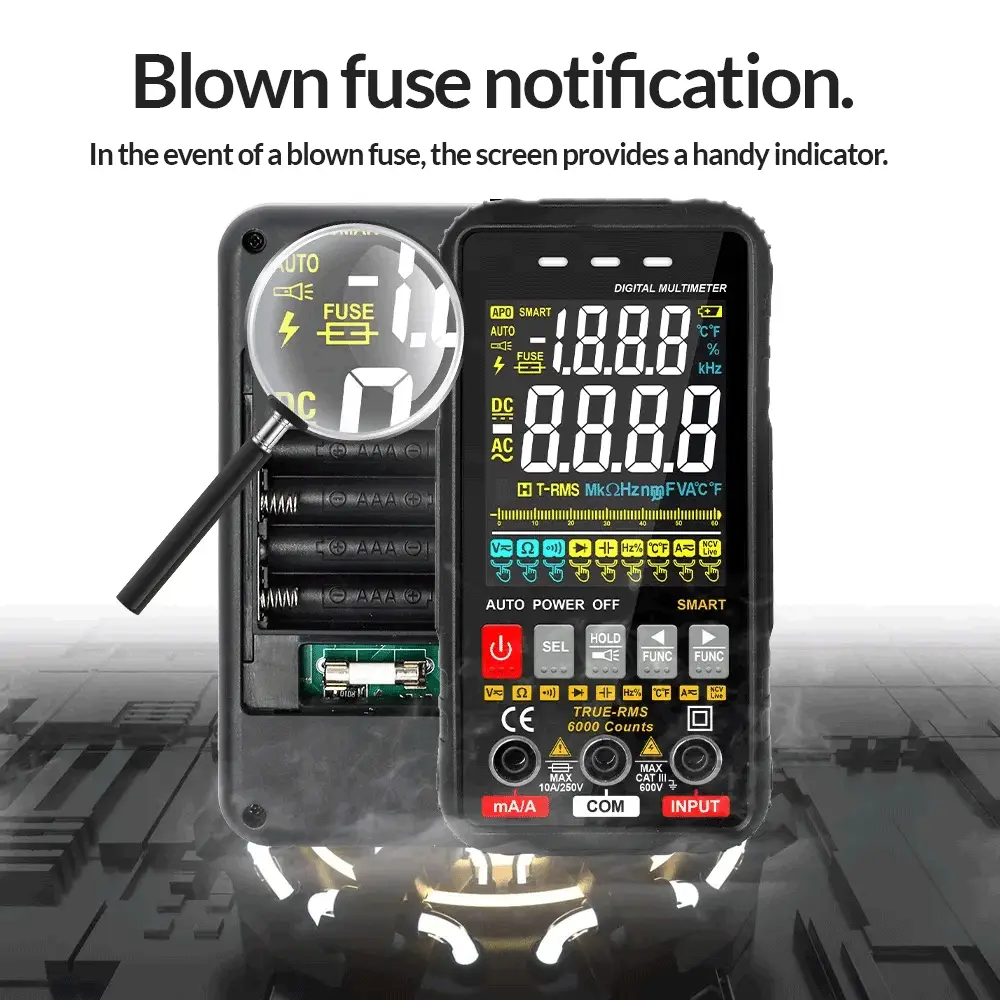

Protection: 10A 250V ceramic fuse 5x20

Batteries: Requires 4 x 1.5V AAA alkaline batteries

Dimensions: 73W x 27D x 144H mm

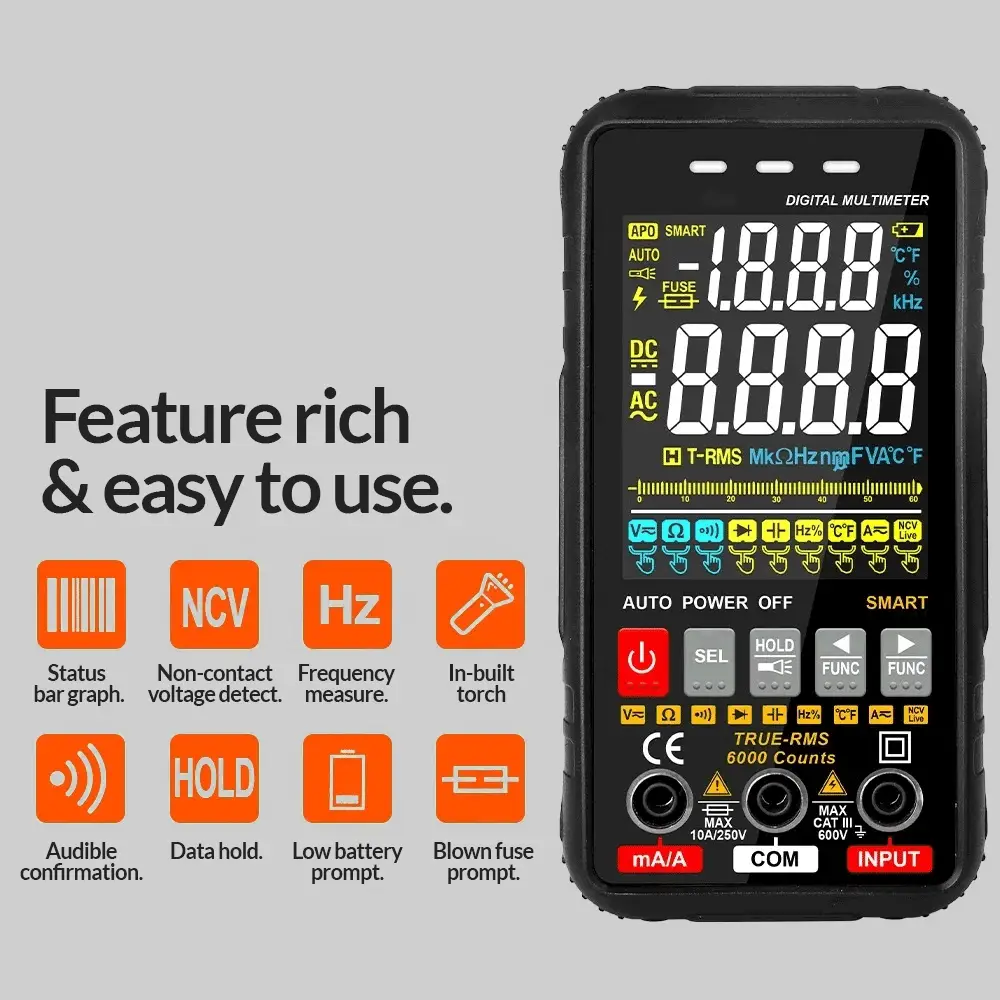

Features:

  • True RMS Auto Range.
  • Large easy to read reverse backlit screen.
  • Simple push button operation.
  • Large multifunction display.

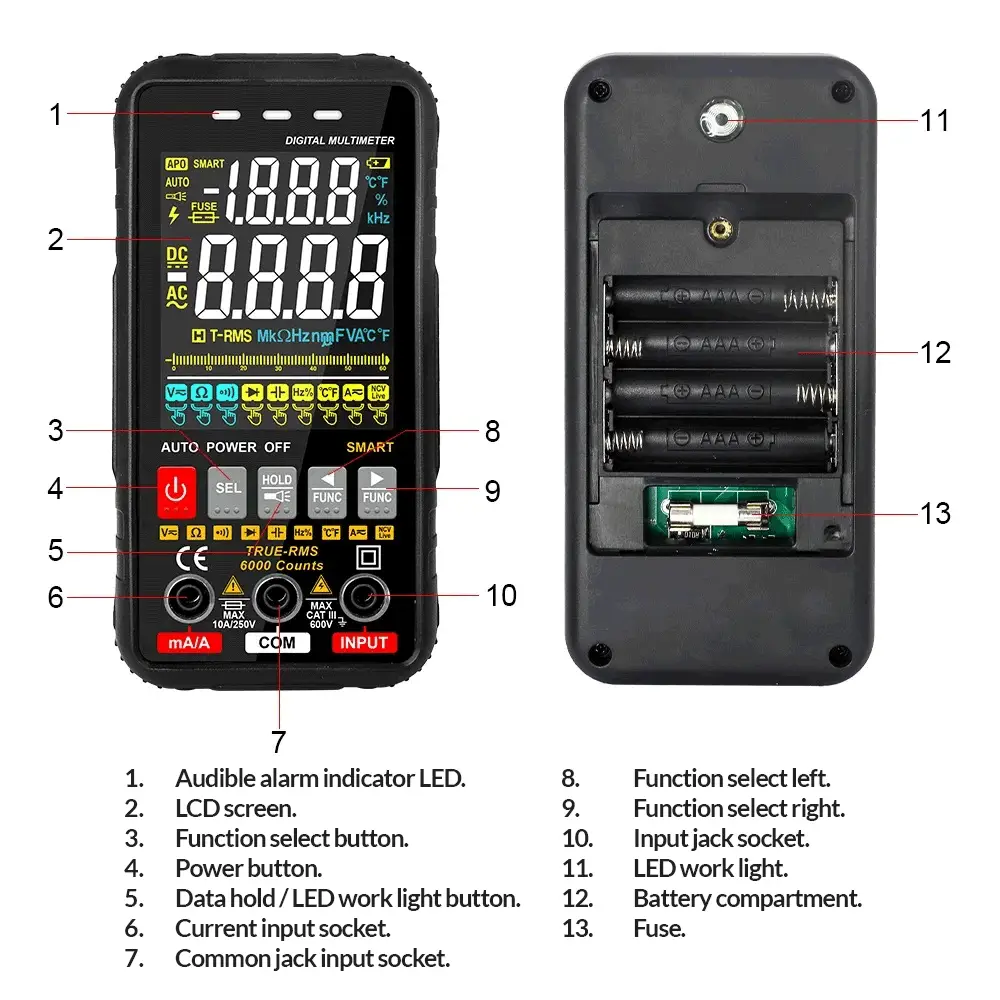

  • Indicates correct connection jacks.



Q1089
Q1089
Q1089
Q1089





Details

Products specifications

Warranty 2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
