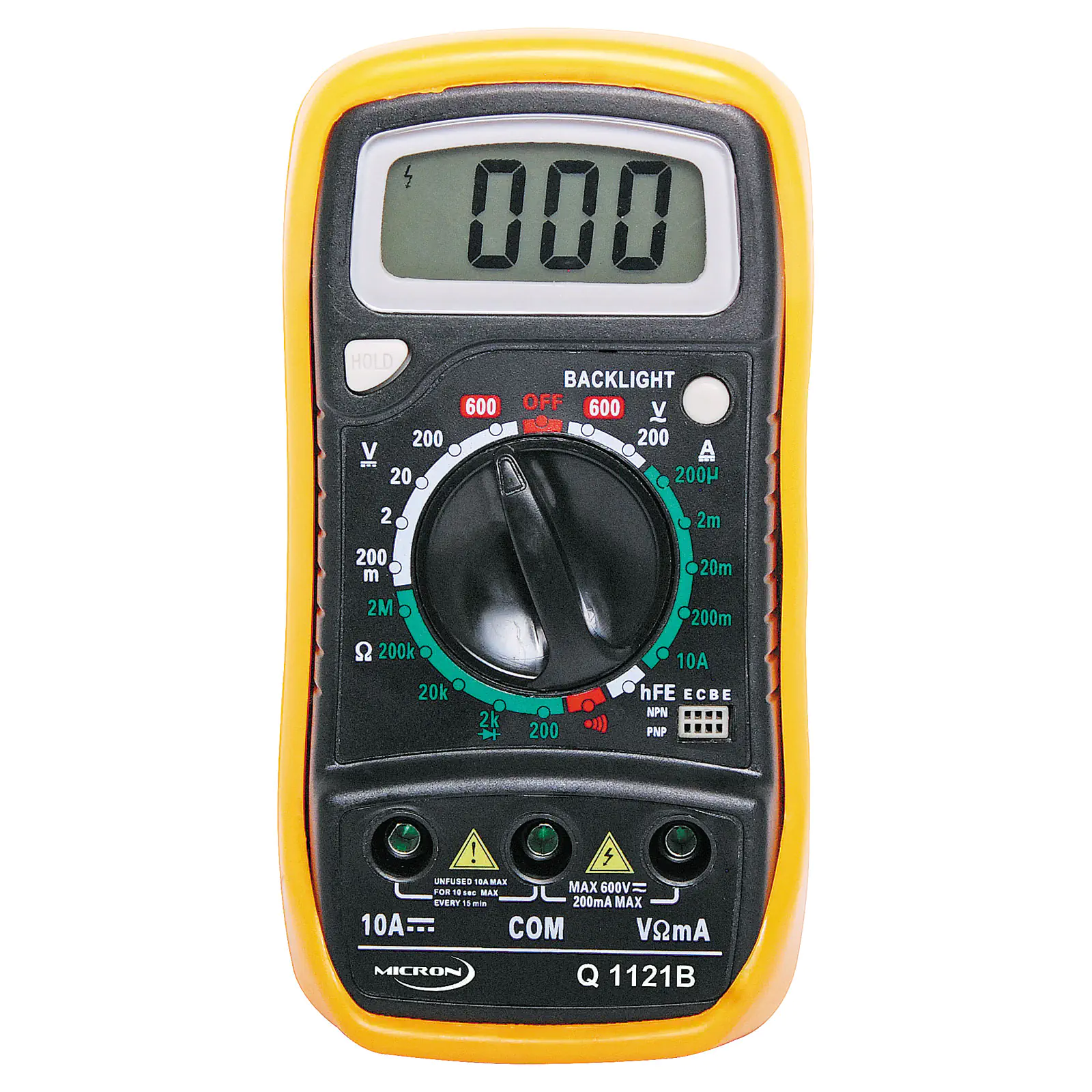

19 Range Digital Multimeter With Data Hold

by: Micron
SKU: Q1121B
Amazing multimeter for the price! This 3.5 digit multimeter features 19 ranges, an in-built hFE transistor and diode test function.
$17.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $17.23
2+ $15.68
5+ $14.32
i h

Overview

This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.

Includes a 9V battery





Specifications:



Voltage DC: 200mV, 2V, 20V, 200V, 600V (±0.8%+2d)

Voltage AC: 200V, 600V (±1.2%+10d)

Current DC: 2mA, 20mA, 200mA, 10A (±1.5%+2d)

Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)

Diode test: Included

Transistor test: Measures hFE, NPN/PNP identification

Display: 3.5 digit LCD, 1999 count

Protection: 500mA M205 fused on all inputs except 10A range

Dimensions: ≈ 72W x 40D x 145H mm



Features:

  • Large display with backlight
  • Low battery indicator
  • Data hold function
  • Transistor tester
  • Current measurement
  • Voltage measurement
  • Diode tester
  • 1x 9V Battery included
  • Cat II

Details

Products specifications

Warranty 2 Years
Test and Measurement
Type Digital Multimeters

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
