This affordable 4000 count digital multimeter with 12 test modes is the perfect accessory for the enthusiast or student. Auto ranging makes testing easier, whilst the large LCD screen with white backlighting makes it easy to read from a distance.

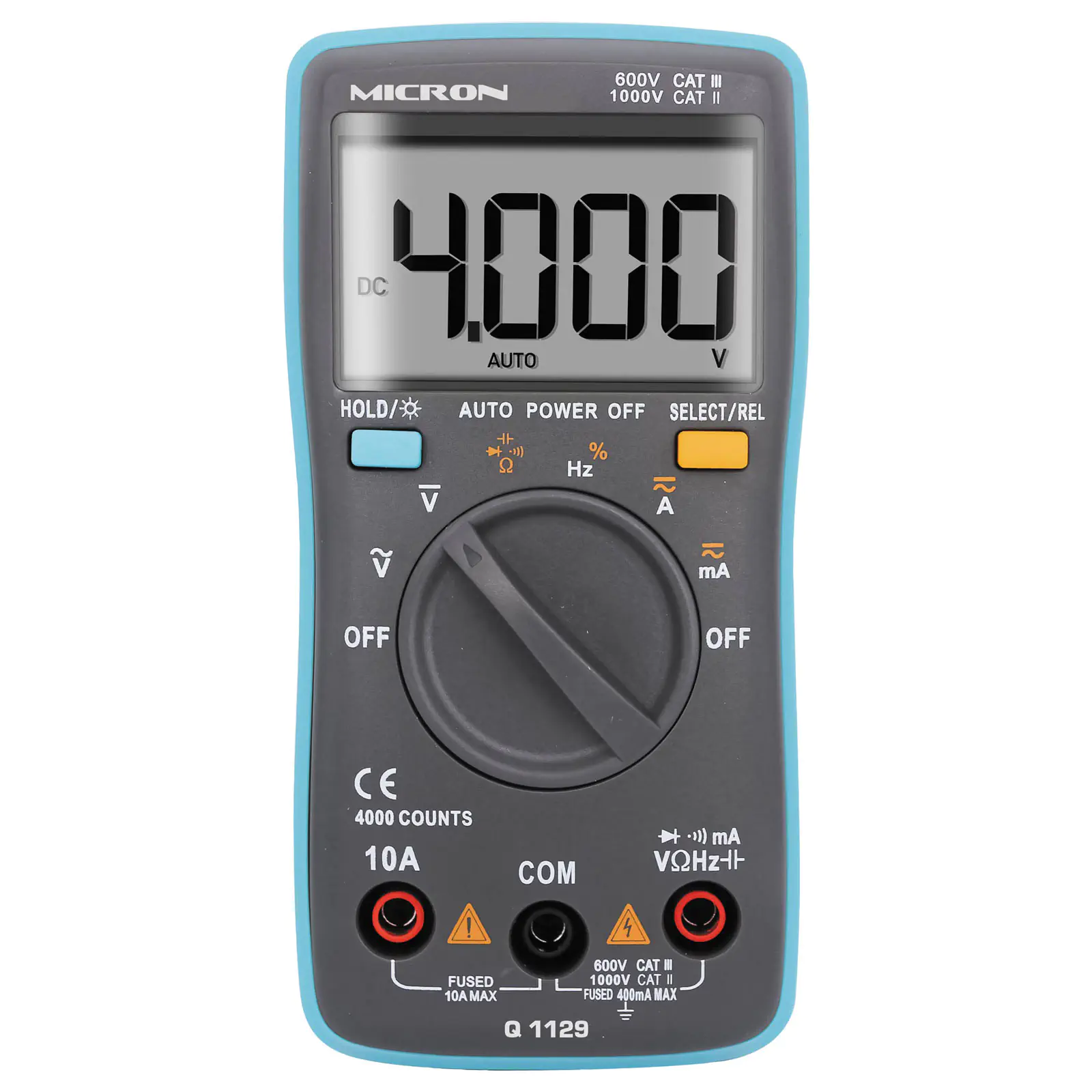

Autoranging Digital Multimeter

Name: Autoranging Digital Multimeter
SKU: Q1129
Price: 35.45 AUD
Availability: InStock

by: Micron

SKU: Q1129

This affordable 4000 count digital multimeter with 12 test modes is the perfect accessory for the enthusiast or student. Auto ranging makes testing easier, whilst the large LCD screen with white backlighting makes it easy to read from a distance.

$35.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$35.45
2+	$31.82
5+	$30.45

i h

Overview
Details
Warranty
Downloads

Overview

This affordable 4000 count meter with 12 test modes is the perfect accessory for the enthusiast or student. Auto ranging makes testing easier, whilst the large LCD screen with white backlighting makes it easy to read from a distance. Supplied with test leads, batteries and built-in bench stand.

Specifications:

Voltage DC: 400mV, 4V, 40V, 400V, 1000V (±0.8%+4d)

Voltage AC: 400mV, 4V, 40V, 400V, 750V (±1.5%+4d)

Current DC: 40mA, 400mA, 4A, 10A (±1.5%+4d)

Current AC: 40mA, 400mA, 4A, 10A (±2%+4d)

Capacitance: 4nF, 40nF, 400nF, 4µF, 40µF, 200µF (±3.5%+4d)

Ohms: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (±0.8%+4d)

Continuity: 40Ω threshold, audible tone

Diode test: Test current 5mA max

Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)

Frequency: 99Hz - 9.99MHz (±0.1%+2d)

Display: 3.75 digit, 4000 count, backlit

Protection: 400mA M205 fused + 10A input fused

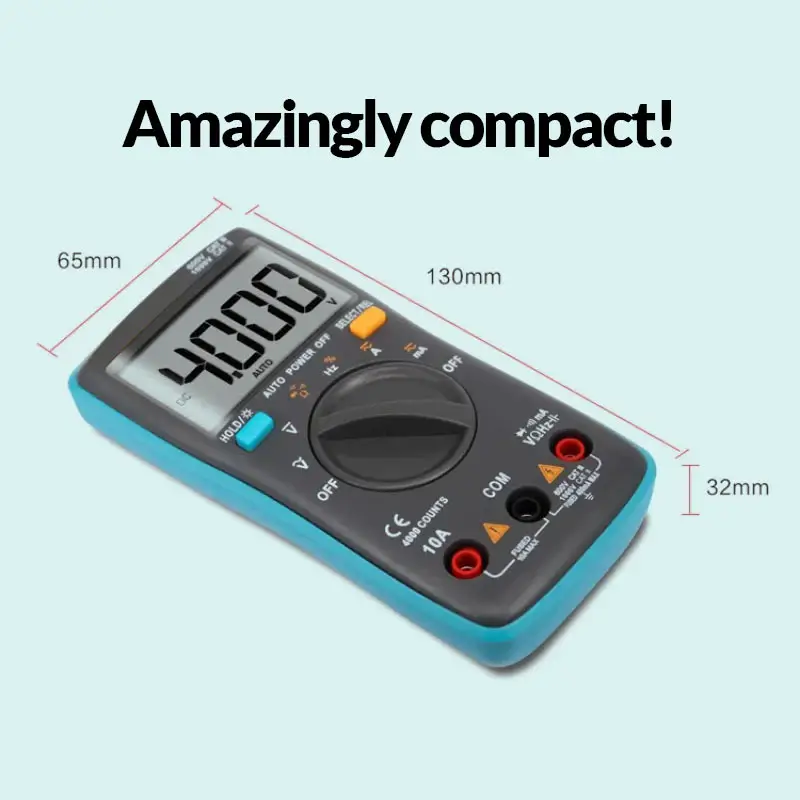

Dimensions: ˜ 65W x 32D x 130H mm

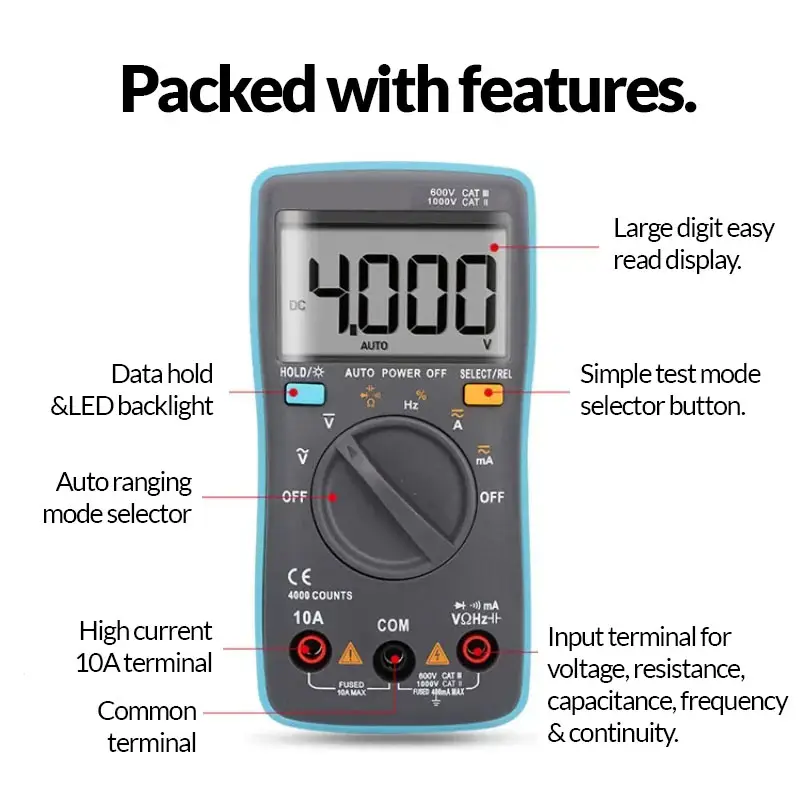

Features:

Easy auto ranging design
Data hold function
Jumbo LCD with white backlight
Continuity buzzer
Diode test
10A DC current range
Includes 2xAAA batteries
Frequency and duty cycle
Cat II 1000V / Cat III 600V

Details

Products specifications

Warranty	2 Years
Test and Measurement
Type	Digital Multimeters

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
