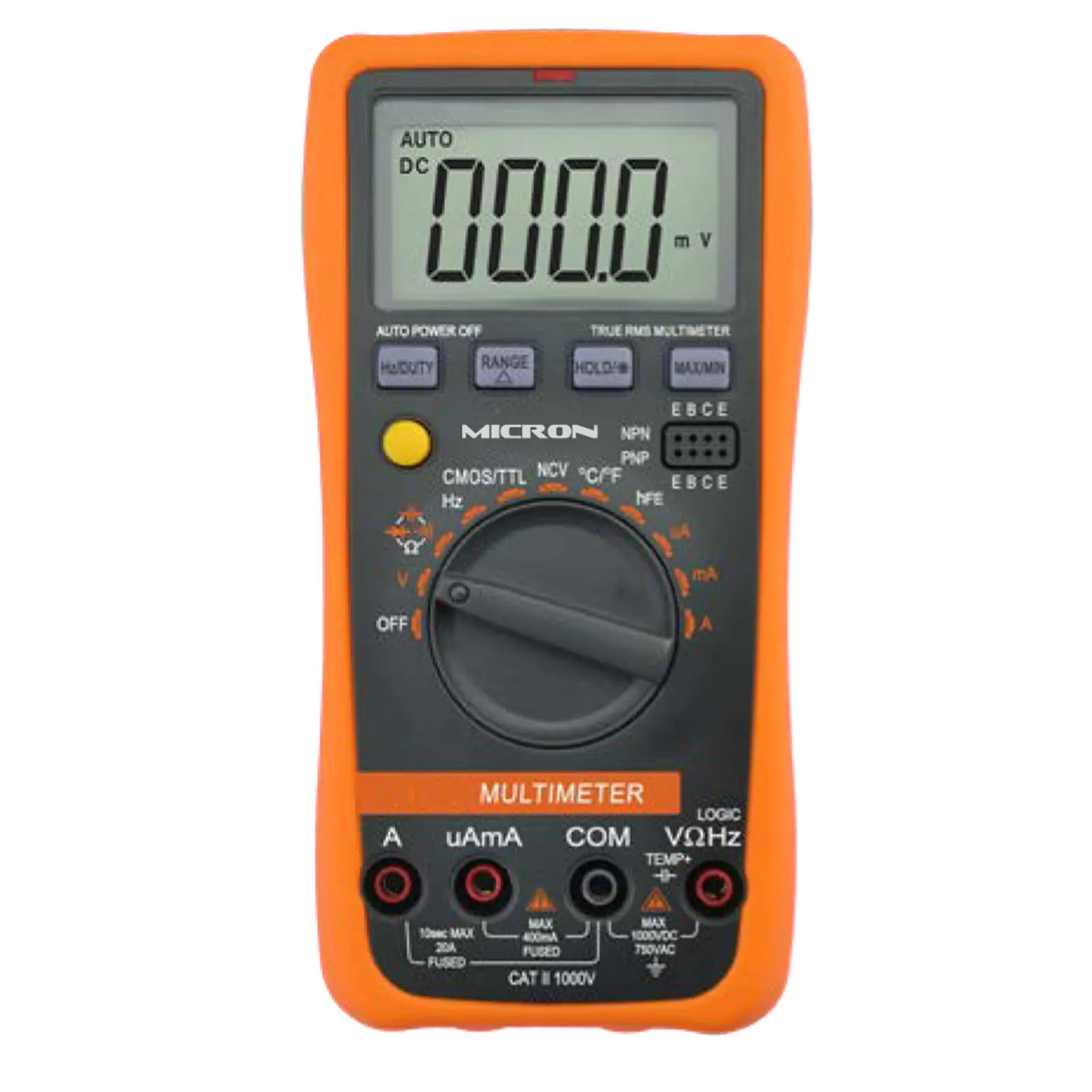

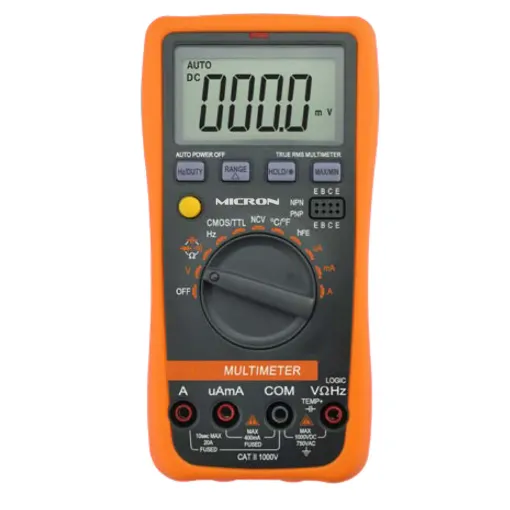

Featuring large, easy to read 20mm digits, this quality mini auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price.

Autoranging Digital Multimeter

Name: Autoranging Digital Multimeter
SKU: Q1133B
Price: 62.73 AUD
Availability: InStock

by: Micron

SKU: Q1133B

Featuring large, easy to read 20mm digits, this quality mini auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price.

$62.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$62.73
2+	$56.59
5+	$50.23

i h

Overview
Details
Warranty
Downloads

Overview

Featuring large, easy to read digits, this quality auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price. Supplied with test leads, rubber holster and temperature probe.

Please Note: Batteries are included.

Specifications:

DCV: 600mV/6V/60V/600V/1000V (±0.5%+5)

ACV: 6V/60V/600V/750V (±0.8%+10)

DCA: 600uA/6000uA/60mA/600mA/6A/20A (±1.0%+5)

ACA: 600uA/6000uA/60mA/600mA/6A/20A (±1.5%+10)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ (±0.8%+2)

Capacitance: 6nF/600nF/6µF/600µF/6mF/60mF (±2.5%+5)

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz (±0.5%+4)

Temperature: -40°C to 1000°C (±1.0%+5)

True RMS test: Yes

NCV Test: Yes

Max/Min test: Yes

Logic Function: Yes

Diode and hFE test: Yes

Continuity alarm: Less then 50Ω

Low Battery Indication: Approx. Less than 2.4V

Duty cycle test: Yes

Data hold: Yes

Backlight display: Yes

Auto power off: About 15 min

Function protection: Yes

Input impedance: 10MΩ

Sampling rate: 3times/s

AC frequency response: 40-400Hz

Operation Method: Auto or manual range

Max Display: 6000

LCD size: 54 x 30mm

Battery: 3V (1.5V AAA x 2)

Power consumpltion: Quiescent current approx. 2mA

Meter Colour: Orange hoister and grey device

Meter weight: 290g (including battery)

Dimensions: 170 x 86 x 35mm

Standard accessory: Test leads, battery, manual, temperature probe

Features:

Streamlined design, comfortable handle
Large LCD display makes reading clear
Strong antimagnetic and anti-interferential performance
Auto power off when there is no measurement in 15 minutes
Full function protection
Unit symbol display, easy to read
CMOS, TTL logic test; True RMS, NCV, MAX/MIN tests
Relative value measurement, frequency/ duty cycle test, data hold

Details

Products specifications

Warranty	2 Years
Test and Measurement
Type	Digital Multimeters

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
