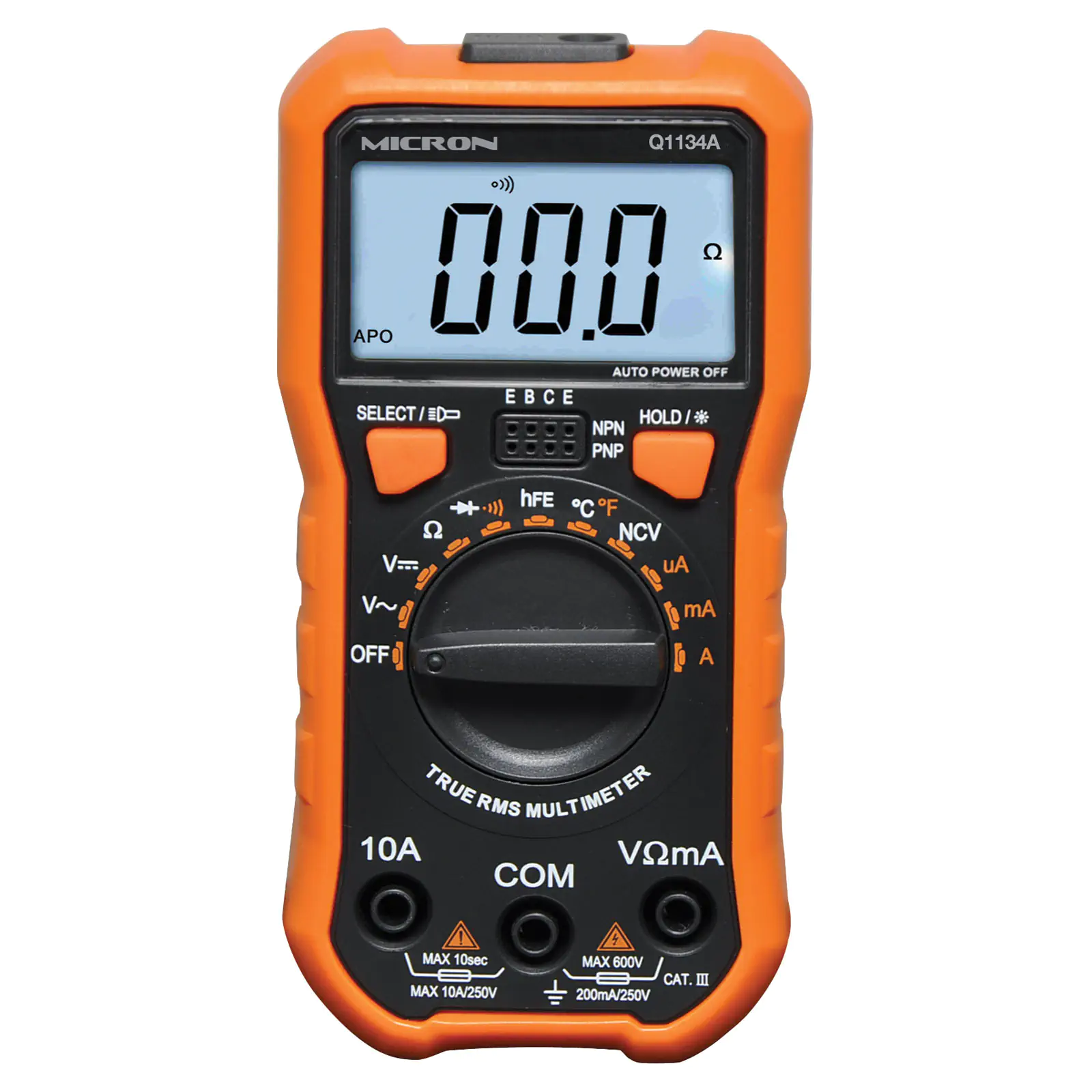

Autoranging True RMS Digital Multimeter

by: Micron
SKU: Q1134A

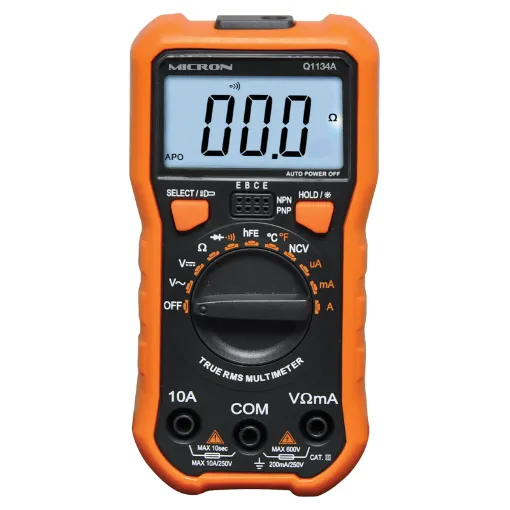

An affordable, versatile multimeter designed for the electronics enthusiast or handyman.
$37.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $37.73
2+ $34.09
5+ $31.36
i h

Overview

This Auto-ranging True RMS Digital Multimeter is an affordable, versatile meter designed for the electronics enthusiast or handyman. Auto-ranging design makes it easy to use single handed when testing - no need to switch ranges all the time! It includes a non-contact voltage detector for identification of live wires. Includes test leads, holster & temperature probe.





Specifications:



Technical Data

DCV: 200mV/2V/20V/200V/600V, ±(0.5%+4)

ACV: 2V/20V/200V/600V, ±(0.8%+6)

DCA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.0%+5)

ACA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.5%+5)

Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(0.8%+1)

Temperature: -40°C~1000°C, ±(1.0%+5)

0°F~1832°F, ±(1.0%+5)



Special function

True RMS: Yes

NCV: Yes

Data hold: Yes

Function protection: Yes

Torch function: Yes

Backlight display: Yes

Diode test: 0V~2V, it displays “OL” if over 2V

hFE test: 0~2000

Continuity alarm: Less than 50Ω, it displays “OL” if over 200Ω

Low battery indicator: Approx. less than 2.4 V

Auto power off: About 15 minutes

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC frequency response: 40Hz-2kHz

Operation method: Auto range

Max. display: 2000

LCD size: 61x28mm

Battery: 3V AAA×2

Power consumption: Quiescent current about 2mA



General

Colour: Orange and Grey

Weight: 195g (including battery)

Dimensions: 140×72×37mm

Accessories: Test leads, battery, manual, TP01 temperature probe



Features:

  • New type holster, streamlined design, comfortable handle
  • Large LCD display makes reading clear
  • Strong antimagnetic and anti- interferential performance
  • Auto power off when there is no measurement in 15 minutes
  • Full function protection
  • Unit symbol display, easy to read
  • True RMS, non- contact voltage detect (NCV) and data hold function
  • Lighting function, backlight display.
