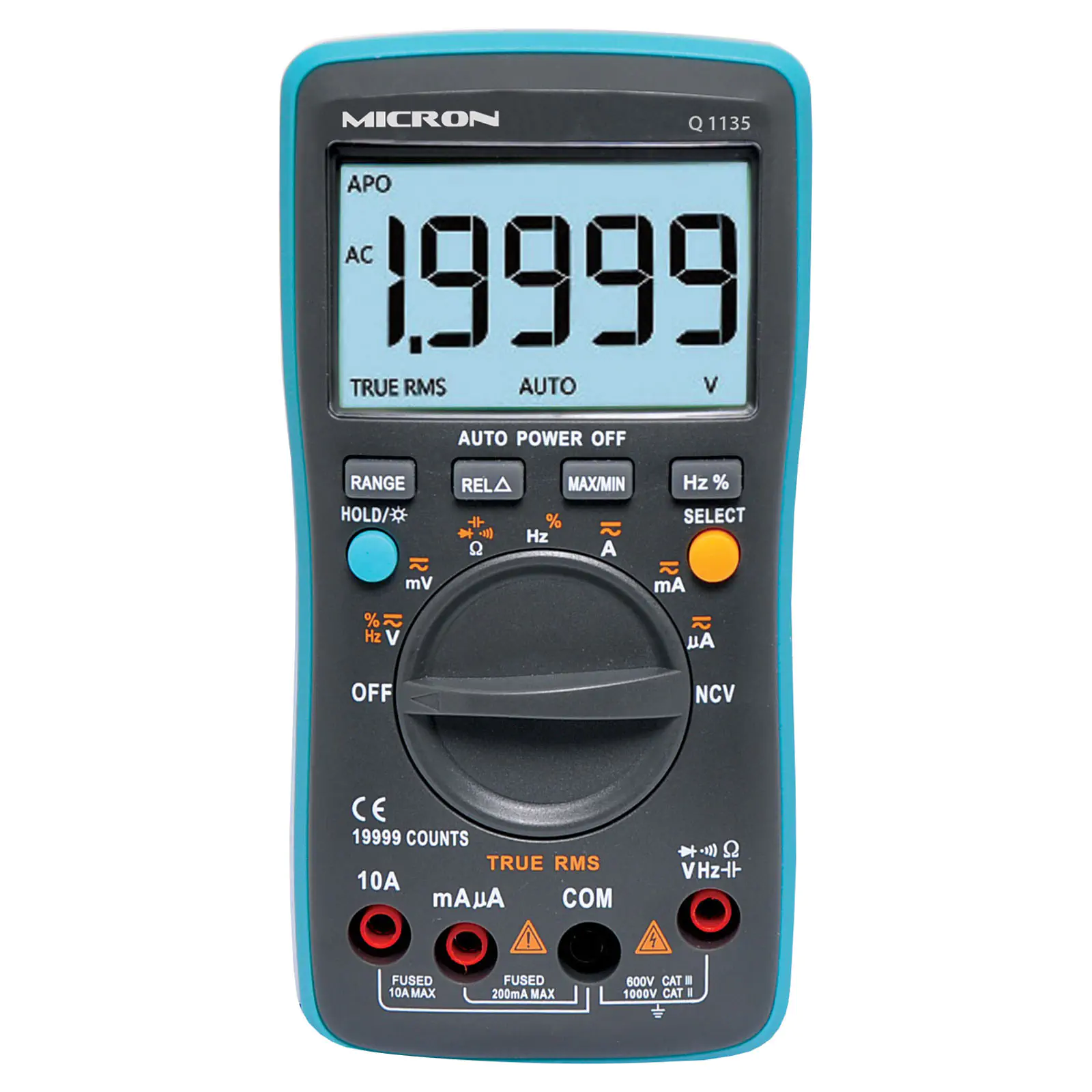

True RMS Autoranging Digital Multimeter

by: Micron
SKU: Q1135
This professional digital multimeter offers extended resolution to 4 digits!
$80.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $80.91
2+ $72.73
4+ $64.77
i h

Overview

The largest screen in our range with 19999 count! This meter offers everything the serious enthusiast or trades person could need with auto ranging true RMS measurement, min/max & relative modes; frequency, duty cycle and non-contact voltage detection. Plus the standard AC/DC modes commonly found on all multimeters. The larger display offers extended resolution for measurements. Supplied with test probes and carry pouch.





Specifications:



Voltage DC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 1000V (±0.05%+3d)

Voltage AC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 750V (±0.3%+3d)

Current DC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.5%+3d)

Current AC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.8%+3d)

Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2%+5d)

Ohms: 199.99Ω, 1.9999kΩ, 19.999kΩ, 199.99kΩ, 1.9999MΩ, 19.999MΩ, 199.99MΩ (±1%+3d)

Continuity: 40Ω threshold, audible tone

Diode test: Test current 5mA max

Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)

Frequency: 99.99Hz - 9.999MHz (±0.1%+2d)

Display: 4.75 digit, 19999 count, backlit

Protection: 200mA M205 fused, 10A input fused

Dimensions: 81W x 39D x 161H mm



Features:

  • Large easy read 19999 count screen
  • Auto ranging
  • True RMS measurement
  • Data hold, min/max and relative modes
  • Continuity buzzer
  • Diode test
  • Non contact AC voltage detection
  • 2x AA battery included

Details

Products specifications

Warranty 2 Years
Test and Measurement
Type Digital Multimeters
