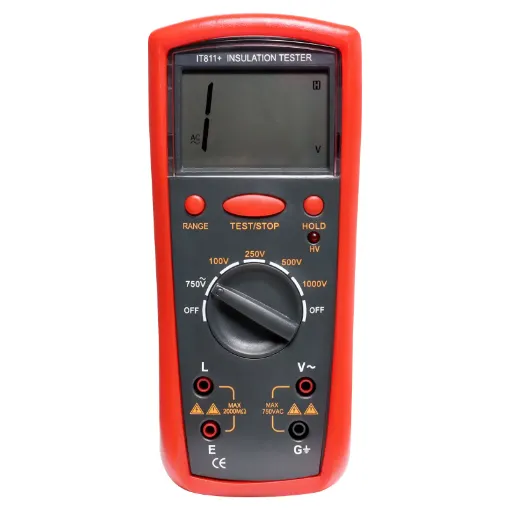

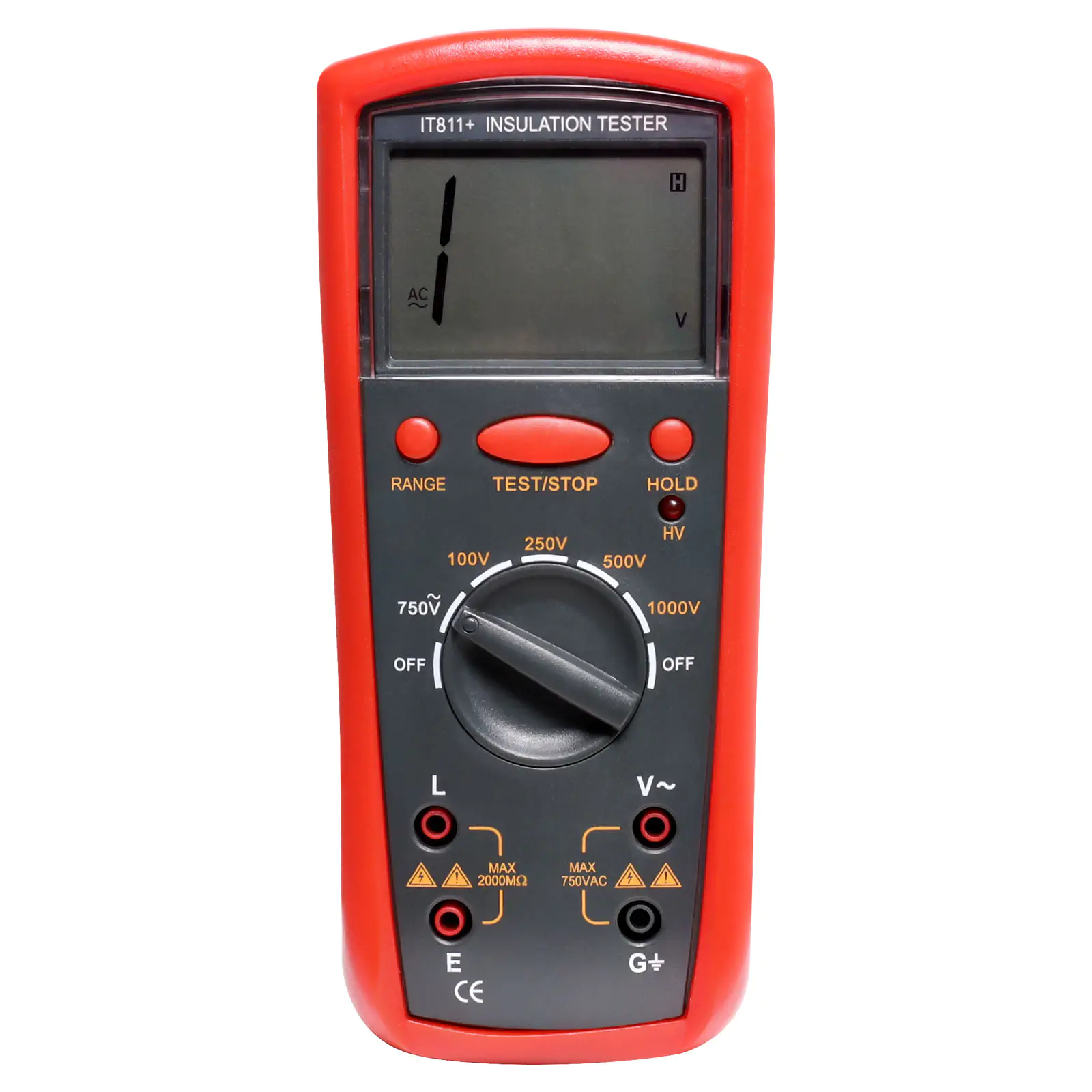

8 Range Digital Insulation Tester 1000V

SKU: Q1242A
Digital insulation testers measure the electrical insulation strength between two conductors by applying a high voltage across them and measuring any current that flows. This is to test for "leakage" paths and insulation breakdown in electrical circuits.
$122.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $122.73
2+ $109.09
5+ $95.45
i h

Overview

Insulation testers measure the electrical insulation strength between two conductors by applying a high voltage across them and measuring any current that flows. This is to test for “leakage” paths and insulation breakdown in electrical circuits. eg checking house wiring for leakage between active and neutral conductors or testing electrical appliances such as toasters, irons etc. This model features two resistance test ranges; 200MΩ and 2000MΩ with four test voltages on each range; 100V, 250V, 500V and 1000V. It also has auto power off to maximise battery life. The included high quality silicon test leads are designed specifically for insulation tester use and have removable alligator clip adaptors. Supplied with rubber holster and soft protective carry case.

Requires 6 x AA (included).





Specifications:



Insulation test range: 200MO, 2000MO (±3%+5d)

Test voltage: 100V, 250V, 500V, 1000V

Display: 3.5 digit, 1999 count

Dimensions: 93W x 55D x 201H mm



Features:

  • 200MΩ and 2000MΩ ranges
  • Backlit LCD readout
  • “Push to test” activation
  • Auto power off
  • Rubber holster
  • Data hold
  • High quality PVC leads
  • Alligator clip lead adaptors
  • Battery included
  • Cat II 600V

Details

Products specifications

Warranty 2 Years
Test and Measurement
Type Digital Multimeters, Insulation Testers
