Wireless Tyre Pressure Sensor Monitor System

SKU: Q1300

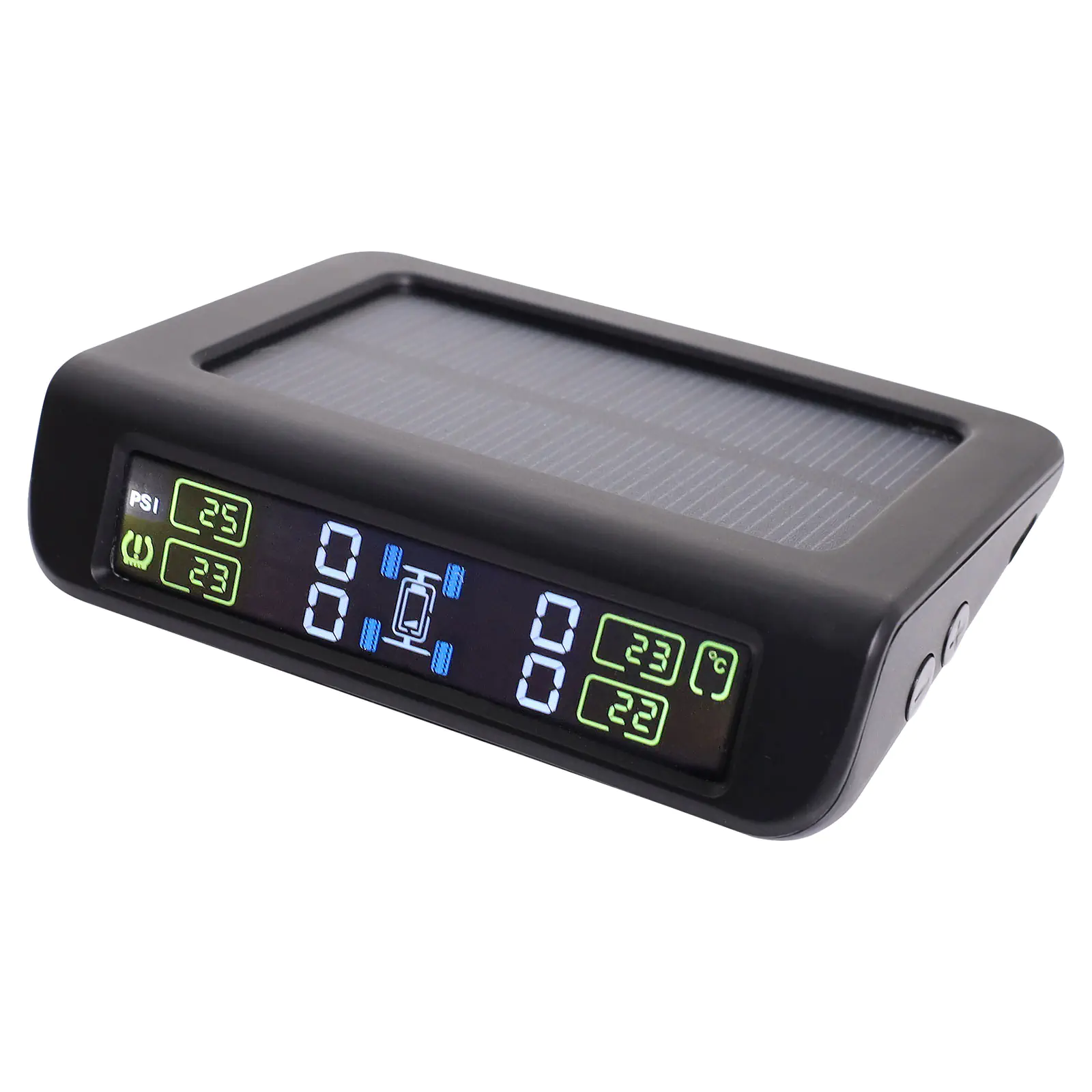

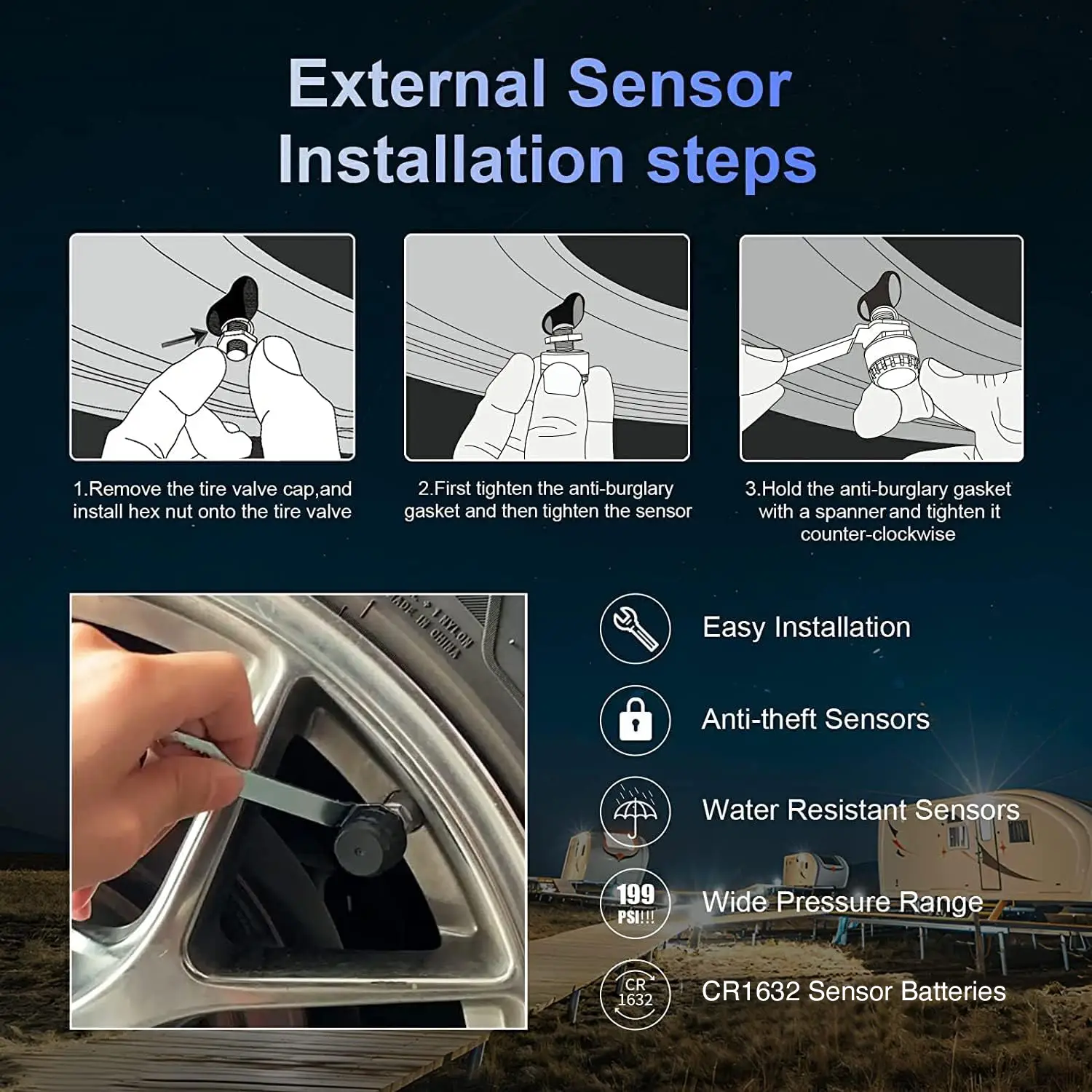

This wireless tyre pressure monitoring system (TPMS) displays tyre pressure and temperature for your vehicle or trailer. The wireless sensors screw onto the valve stems of your tyres and transmit back to the solar powered dash monitor.
Save $40.91 $118.18 $159.09

All Prices Shown are (ex GST)
Bulk Pricing
ea
$118.18 $159.09
2+
$118.18 $142.73
4+
$118.18 $127.27
i h

Overview

This wireless monitoring system displays tyre pressure and temperature for your vehicle or trailer. The wireless sensors screw onto the valve stems of your tyres and transmit back to the solar powered dash monitor. Provides high pressure, low pressure, leak and over temperature alarms. Stay safe on the roads with your camper or caravan - also great for 4WDs to remind you to inflate your tyres again after off roading!

Maximum distance for reliable sensor connection is 4 metres. When used with a camper or caravan the Q1302 booster can be installed to provide more reliable signal to the main display - Please see accessories listed below.





Specifications:



Working humidity: 100%

Standby current: 1uA

Sensor weight: 9g

Standard: CTB160109001Q

Pressure: 0 - 8 bar (0 - 99psi)

Operating temperature: -40°C to +125°C

Operating distance: 4 metres.

Transmitting frequency: FSK433.92MHz.

Sensor battery life: approx. 2 years.

Sensor battery type:  CR1632

Dash monitor size: 93W x 68.5D x 25Hmm.



Features:

  • Adjustable alarms for high/low pressure, temperature
  • Leak detection
  • Temperature monitoring
  • Solar powered dash display
  • Sticky dash mount allows for mounting anywhere
  • Includes 4 matched sensors, USB cable, valve stem nuts and fitment wrench



Q1300
Q1300
Q1300
Q1300







THIS PRODUCT CONTAINS A BUTTON BATTERY.

  • If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
  • Keep batteries out of reach of children.
  • If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
button battery inside warning



Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
