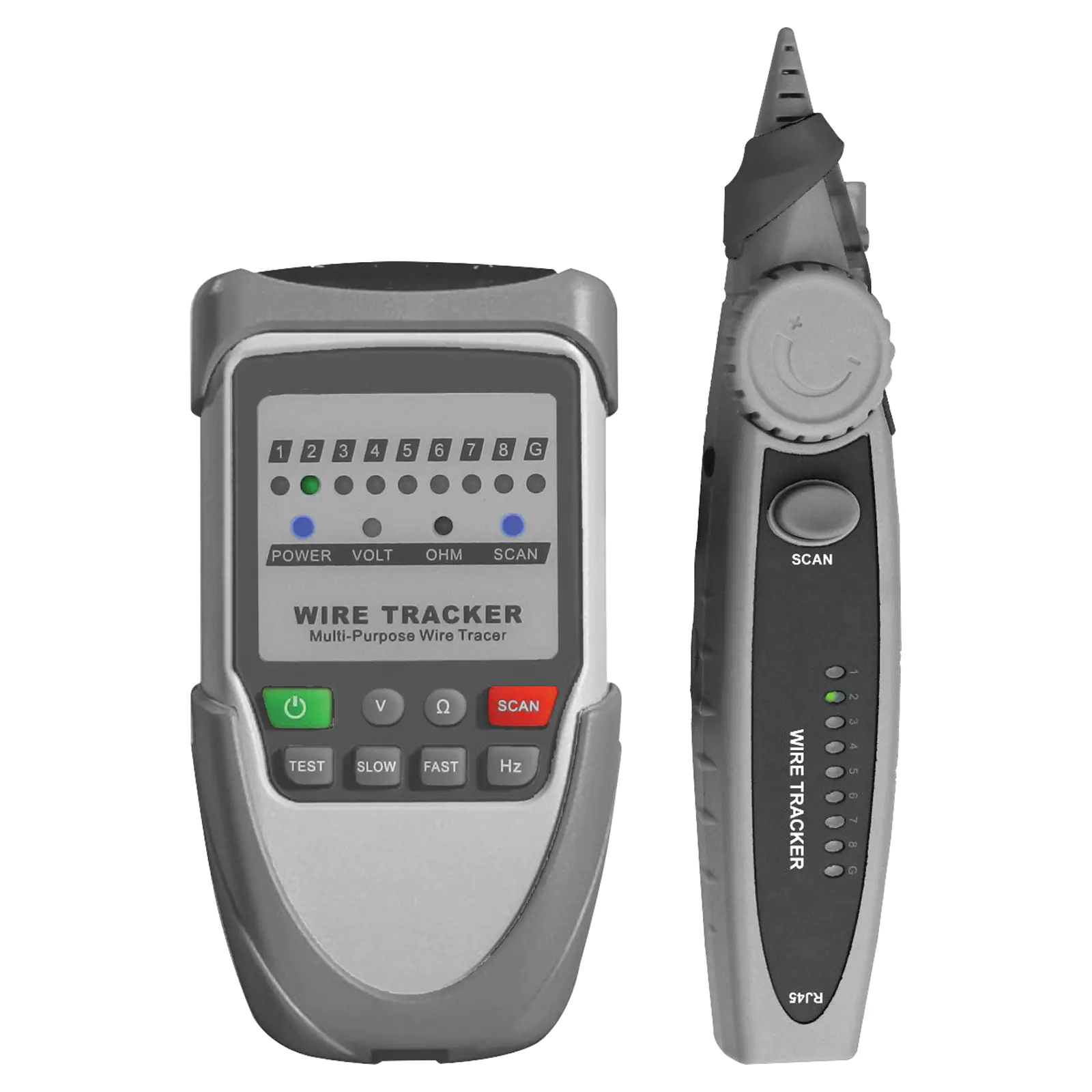

Professional Cable Tracer and Network Cable Tester

Combines the functionality of a cable tracer and network cable tester in one convenient unit. The main unit can be connected to an unidentified pair which injects an audible signal down the line. The “tracer” unit may then be used at the other end of the cable run to identify the correct conductors. In addition, patch leads & field wiring may be plugged inline between the units to provide instant verification of continuity and correct wiring sequence. Probe includes an LED light for easy cable identification when in dark areas. Suits RJ45 and RJ11 leads.

Requires 1 x 9V battery and 3 x AA batteries (sold separately)

Basic Functions

Tracking network or phone cable in bundle

Checking the correctness and quality of wire connections

Testing network and phone circuit voltage

Testing continuity of wires

Maximum cable length can be tested: 1km

Special Features

Emergency lighting in dark area

Adjustable loudness of buzzer

Headset support for working in noisy area

Change of buzzer tone for identification of buzzer sound

Low power indication

Specifications:

Operating Temperature : 0°C ~ 40°C

Storage: -10°C ~ 50°C

Relative Humidity: < 90%

Transmitter Battery : 3 x 1.5V AA

Receiver Battery: 9V (6F22)

Size Transmitter: 65 x 120 x 32mm

Receiver: 35 x 187 x 29mm

Weight Transmitter: 90g (including battery)

Receiver: 70g (including battery)

Features:

• Headphone socket (earphones included)
• Adjustable buzzer volume
• Tests network and phone circuit voltage
• LED light on probe
• Single or dual tone
• Verifies short, open or crossed pairs in UTP cables
• Confirms integrity of patch leads and field wiring
• Includes RJ45 lead & croc clip test lead
