Network Cable Length Tester With PoE/PING

SKU: Q1346

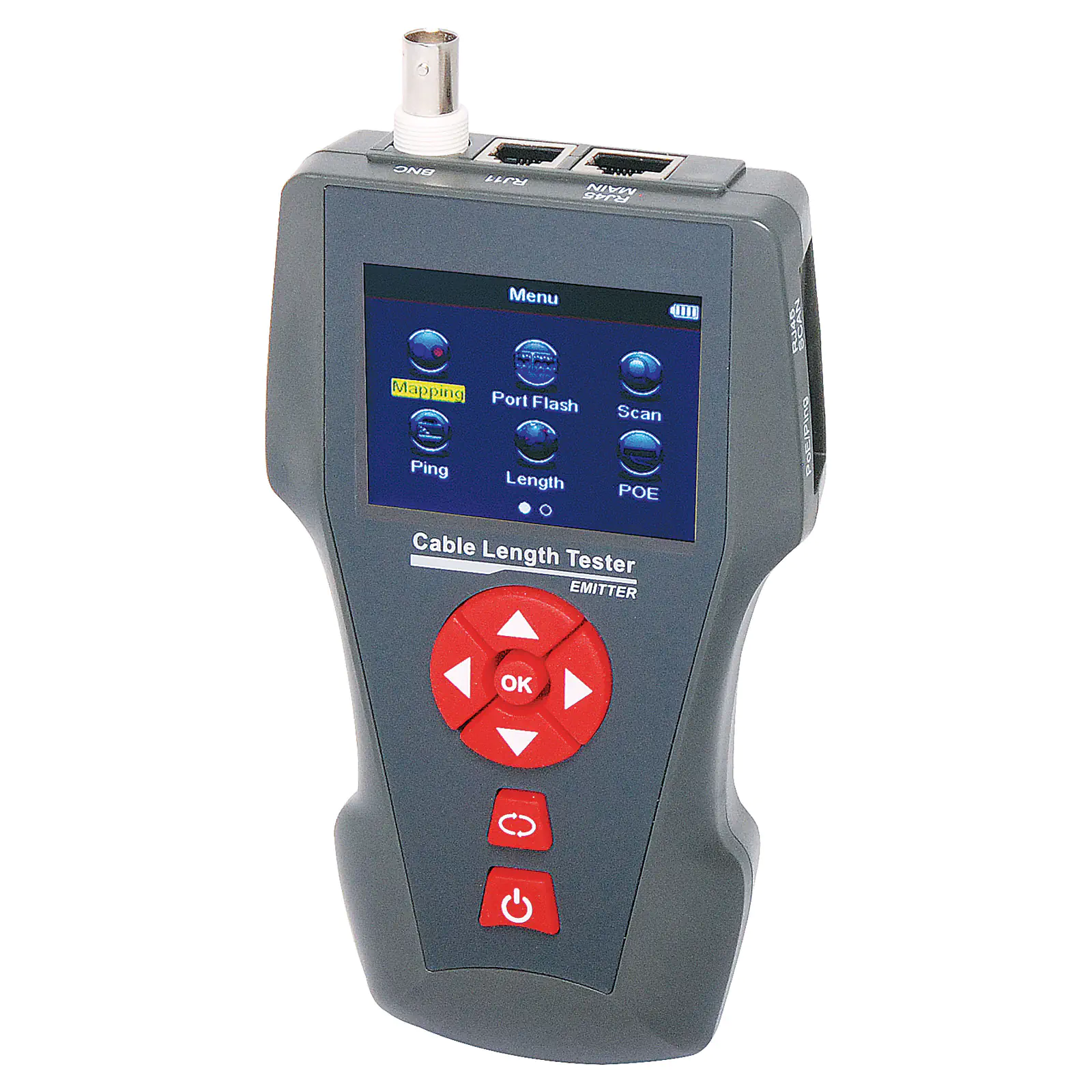

This comprehensive cable testing kit consists of three units. The main tester with 2.8" LCD screen, cable "sniffer" receiving unit and 8 remote identifiers. It is capable of measuring cable length, tracing cable location, continuity testing, PoE and Ping testing. It can be used with LAN, telephone cabling.
$431.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $431.82
2+ $390.00
4+ $345.45
i h

Overview

This comprehensive cable testing kit consists of three units. The main tester with 2.8” LCD screen, cable ‘sniffer’ receiving unit and 8 remote identifiers. It is capable of measuring cable length, tracing cable location, continuity testing, PoE and Ping testing. It can be used with LAN, telephone cabling. It is the perfect test accessory for any comms or CCTV installer. You simply connect one end of the cabling to the main tester and use the receiver unit to trace cable location and detect breakages. Main tester and receiving unit are fitted with internal lithium battery and is recharged via micro USB.





Specifications:



Indicator: LCD 320x240mm, with back light

Cable Test Types: STP/UTP 5E,6E network, telephone, coax cable

Max. Distance of Wire Map: 2000m

Max. Distance for Tracing Cable: 1000m

Max. Distance of Cable Length measurement: 2000m

Min. Distance of Calibration: 10m

Accuracy: 98% (after calibration)

Compatible Connectors: RJ11, RJ45, PING/POE, BNC

Cable Map Indication: LCD (Pin 1- Pin 8 & G)

Battery Type: 3.7V lithium battery 1800mAh

Work Temperature/Humidity: 10°C - 60°C/ 0°C - 70°C

Transmitter Dimensions: 173L x 92W x 34D mm

Receiver Dimensions: 183L x 58W x 35D mm

Remote Dimensions: 106L x 32W x 30D mm



Features:

  • POE test
  • PING test
  • Perform crosstalk test on network cable
  • Test open, short or cross connection
  • Measure length of telephone, network cabling up to 2000m
  • Log data and measurements to internal Micro SD card
  • Locate breakages
  • Voltage detector in receiver end (50-1000V)
  • Includes 8 remote units
  • Voltage presence detection
  • Includes carry case, charging lead and adaptors.

Details

Products specifications

Warranty 12 Months
