Measuring a capacitor's ESR (equivalent series resistance) is a great indicator of capacitor condition. The Atlas ESR offers instant results. Just connect the probes and press test - no need to worry about polarity!

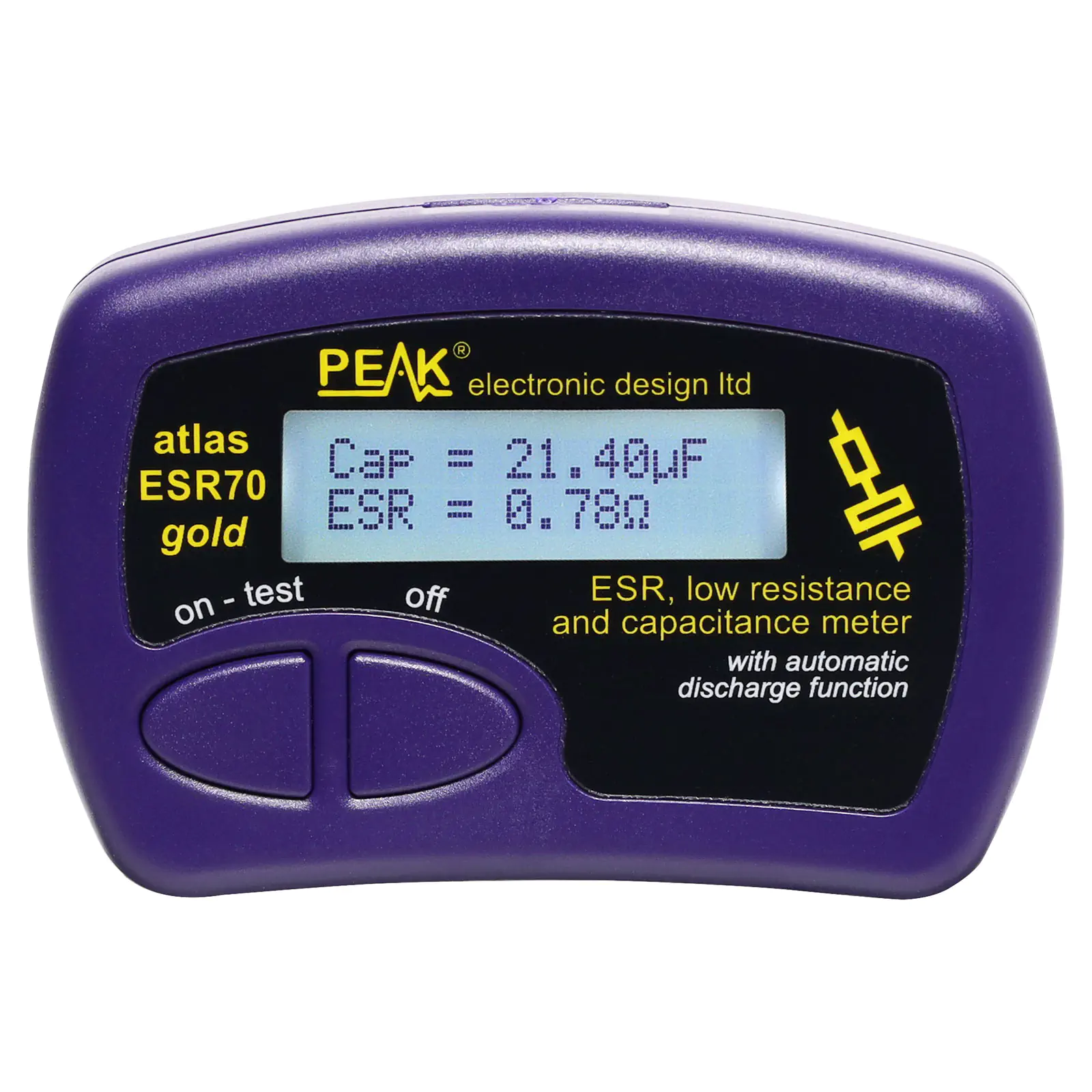

ESR70 Gold Capacitor Analyser

Name: ESR70 Gold Capacitor Analyser
SKU: Q2105
Price: 262.73 AUD
Availability: InStock

by: Peak

SKU: Q2105

Measuring a capacitor's ESR (equivalent series resistance) is a great indicator of capacitor condition. The Atlas ESR offers instant results. Just connect the probes and press test - no need to worry about polarity! You can even use the Atlas ESR in circu

$262.73

All Prices Shown are (ex GST)

Bulk Pricing

ea $262.73

i h

Overview
Details
Warranty
Downloads

Overview

The Peak Atlas ESR Gold is an enhanced version of the previous Peak Atlas ESR Plus. It provides instant measurement of a capacitor's ESR and its capacitance value. Using the supplied gold plated probes (removable), the Peak Atlas ESR Gold can measure ESR down to a resolution of 0.01Ω, up to 40Ω. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display.

Package Contents:
ESR70 - Equivalent Series Resistance Meter.
Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
2mm plugs and sockets with removable gold plated crocodile clips.
Comprehensive illustrated user guide.
AAA Alkaline cell

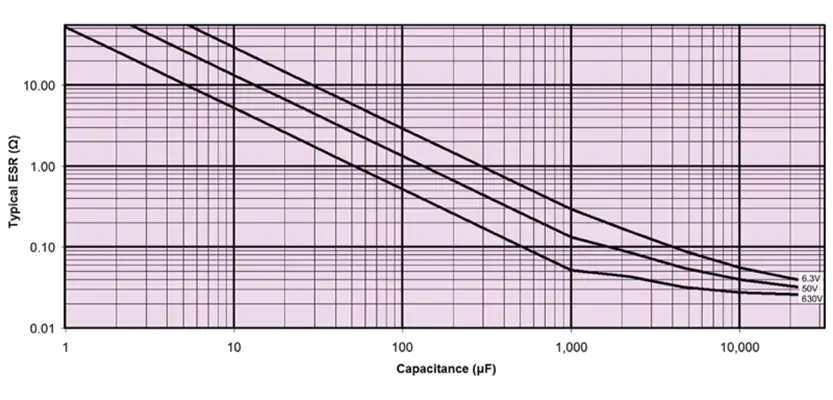

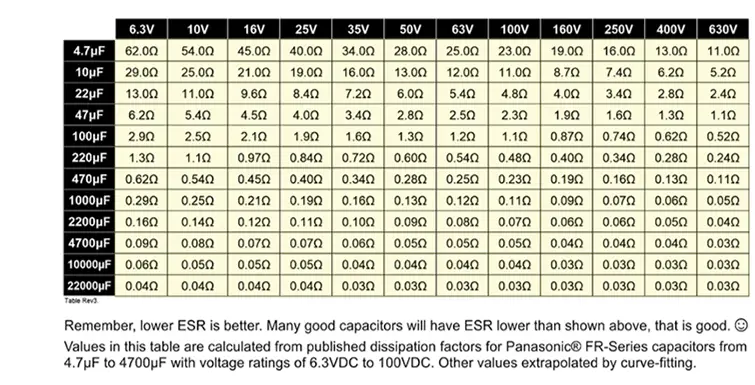

Capacitance to ESR Chart & Graph

Features

Measure ESR (even in-circuit).
Measure capacitance (from 0.3µF to 90,000µF).
Automatically starts analysis when the ESR70 is connected.
Audible alerts with different tones for various ESR levels.
ESR resolution down to 0.01Ω.
Polarity free due to bi-directional low voltage (500mV) test span.
Low DC resistance checking measurement (even in-circuit).
Supplied complete with 2mm male test leads and 2mm compatible gold plated crocs.
Test leads are ultra-durable and 45cm (18") long with 2mm plugs.
Enhanced software compensation of cable resistance.
Enhanced compensation for leakage or parallel resistance.
Improved LCD with better backlight.
10x faster capacitance measurement for large capacitors.
Enhanced user options system.
New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
Much wider capacitance measurement range now 0.3µF to 90,000µF (was 1µF to 22,000µF).

Specifications

ESR Range: 0.00Ω to 40.0Ω

ESR Accuracy: ±2% (typical)

ESR Resolution (ESR<2?): 0.01Ω to 0.02Ω

ESR Resolution (ESR>2?): 0.1Ω to 0.2Ω

Capacitance Range: 0.3µF to 90,000µF

ESR Test Frequency: 50-100kHz ±4%

ESR Test Voltage (across 40Ω): 40mV (typical)

Operating Temperature Range: 15°C to 35°C (60°F to 95°F)

Battery Type: AAA Alkaline (1.5V) Supplied

Display: Backlit Alphanumeric LCD

Auto-Off Period: 1 minute (typical)

Details

Products specifications

Warranty	2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
