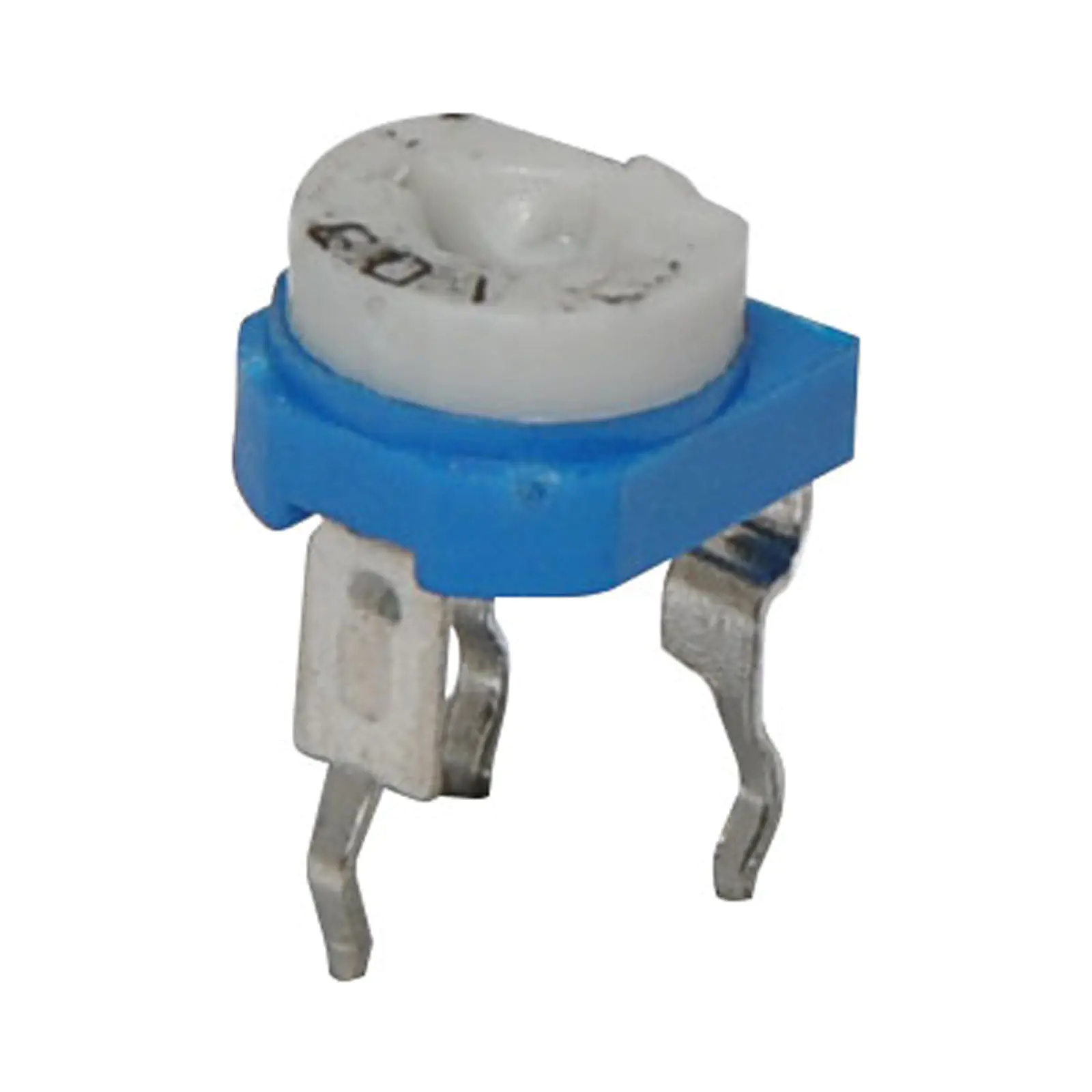

2k 5mm Top Adjust Trimpot

SKU: R2478B
A single turn 2k Ohm top adjustment trimming potentiometer
$1.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.41
10+ $1.00
25+ $0.86
i h

Overview

Top Adjust Trimpot. 5mm. Single Horizontal.





Specifications:



Nominal Resistance: 100 O to 1M O

Std. Res. Tolerance: + /- 30%

Residual Tolerance:

Maximum 5% of Nominal Resistance but less than 30Ω , whichever is lower

Taper: Linear (B)

Power Rating: 0.1W

Operating Temperature: less than 50V

Rotational Life: Maximum +/-15% change in Nominal Resistance after 100 Cycles Unloaded

Load Life: Maximum +/-5% change in Nominal Resistance after 3 hours loaded.

Rotational Angle: 200°± 20°

Torque: 60 ~ 300g.cm

End-Stop Strength: 500g.cm minimum

Mechanical Strength: Bakelite sheet not be be broken down under pressure of 1Kg. cm maximum

Operating Temperature: -5°C ~ +40°C

Temp. Characteristics: +5 ~ -30% change in resistance after 5 hours at 70°C

Humidity Characteristics:

Maximum 20% Change in Resistance after 350 hours at 40°C and RH 90% loaded

Soldering Method: Hand Soldering

Soldering Temperature: 250°C

Soldering Time: 2 seconds

Details

Products specifications

Warranty 12 Months
Components
Turns Single Turn
Type Trimming Potentiometers
