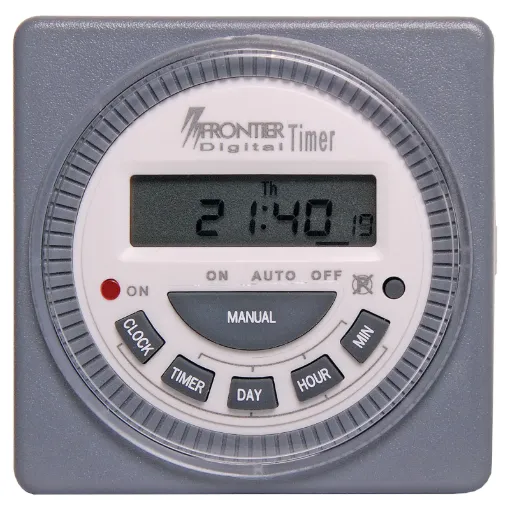

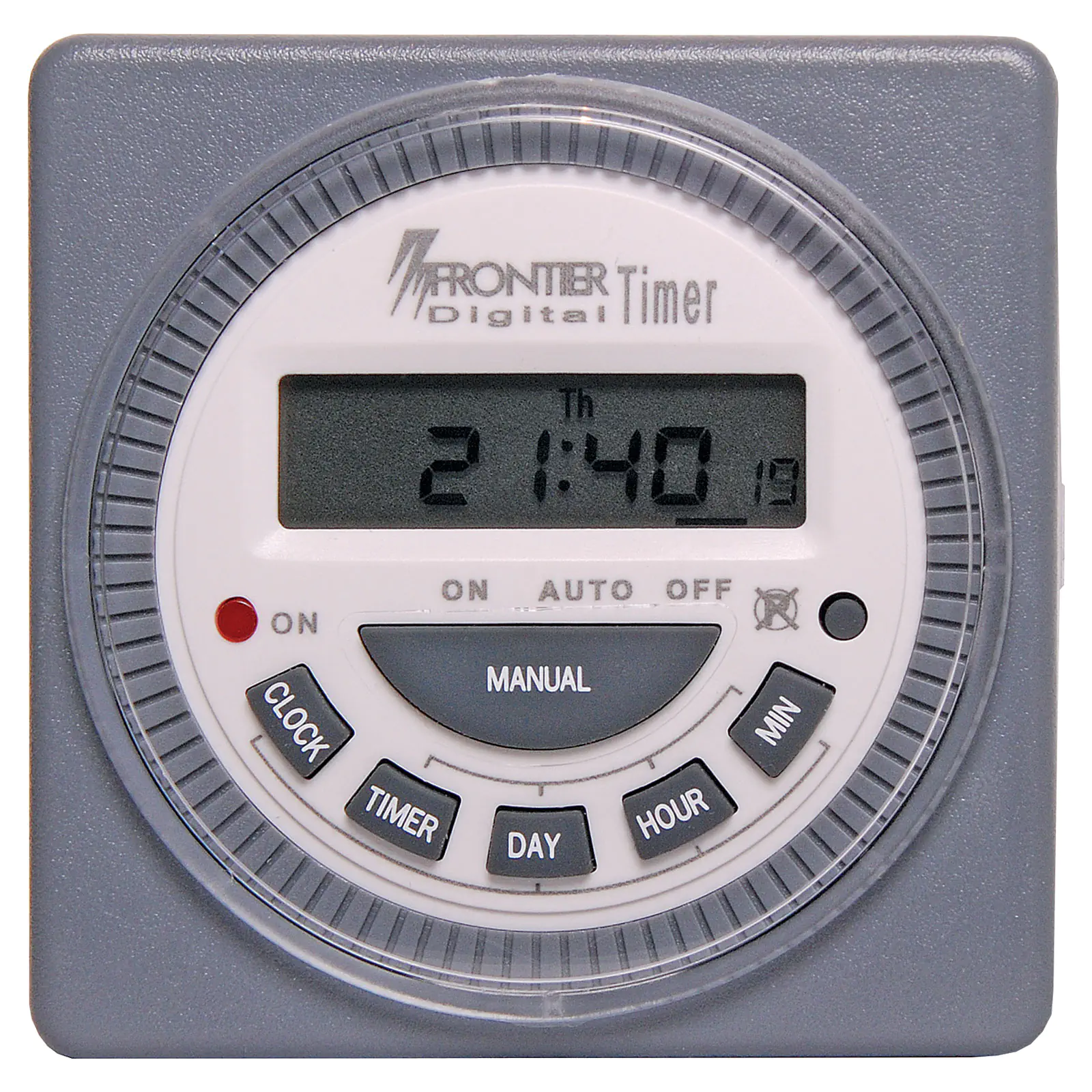

8 Program 24VAC/DC Alternate Digital Timer Module

SKU: S0050
This versatile 7 day digital timer is ideal for use in any appliance which requires automation. It can be configured to switch at up to 8 different times during a 24 hour period. In addition, it can be programmed to operate on a wide variety of days. eg.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
4+ $57.23
10+ $50.86
i h

Overview

This versatile 7 day digital timer module is ideal for use in any appliance which requires automation. It can be configured to switch up to 8 different times during a 24 hour period. In addition, they can be programmed to operate on a wide variety of days. eg. daily, weekdays only, weekends only, every second day, or selected group of days.

Switch-on and switch-off times may be set for each program and allows different ‘on’ duration for each program. 8 single duration programs per day i.e. 56 programs per week.

The timer has three modes of operation. Includes ‘always on’ and ‘always off’ override modes, which will ignore all programmed events. The mode of operation can only be changed when power is applied to the switch.

In the event of a power failure, the switch retains its program data via an internal CR2032 battery.

For power backup of programmed times a 3V CR2032 lithium battery cell is provided.





Specifications:



Contact Rating: 16A @ 30VDC - 8A @ 240VAC

Operating Voltage: 24VAC/DC

Panel Thickness (p in diagram): <7mm

Switch Type: SPDT

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
