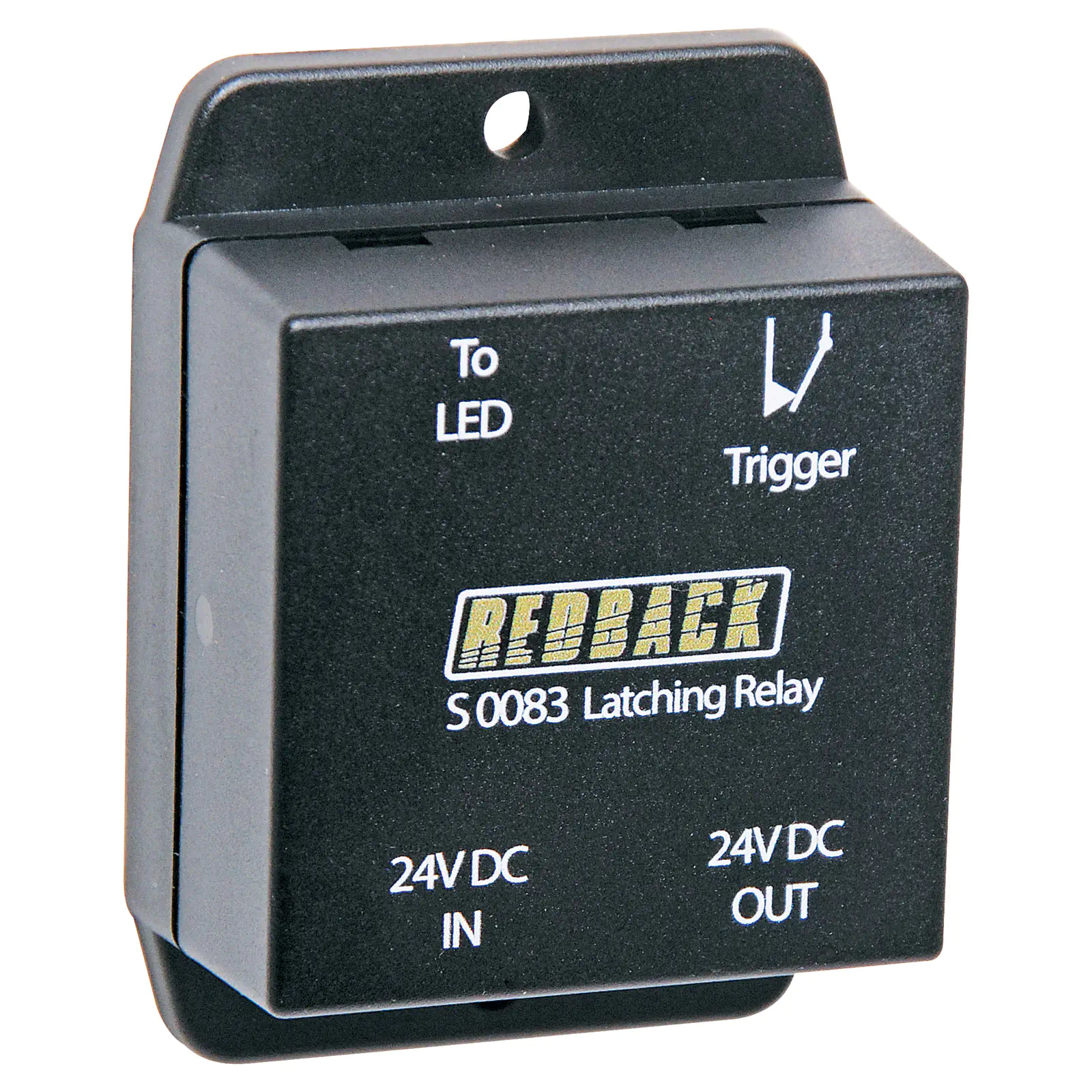

24V DC Latching Relay Module

by: Redback
SKU: S0083
This latching relay box offers a compact solution to switching high current circuitry on and off using a low current momentary switch.
$75.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $75.91
2+ $71.14
4+ $67.95
i h

Overview

This latching relay box offers a compact solution to switching high current circuitry on and off using a low current momentary switch. Simply wire your closing contacts (such as a switch) into the trigger input, provide a voltage between 12-24V DC in via the “DC IN” screw terminals and connect your load to the output “DC OUT” terminals which are rated at 7 amps maximum. For indication, terminals are also provided for an LED, lamp or buzzer. To operate the unit simply activate the trigger to turn ON the output and activate the trigger again to turn OFF the output.

Size: 51W x 70H x 27Dmm (inc. flanges).


Please Note: To operate the unit simply activate the trigger to turn ON the output and activate the trigger again to turn OFF the output.
