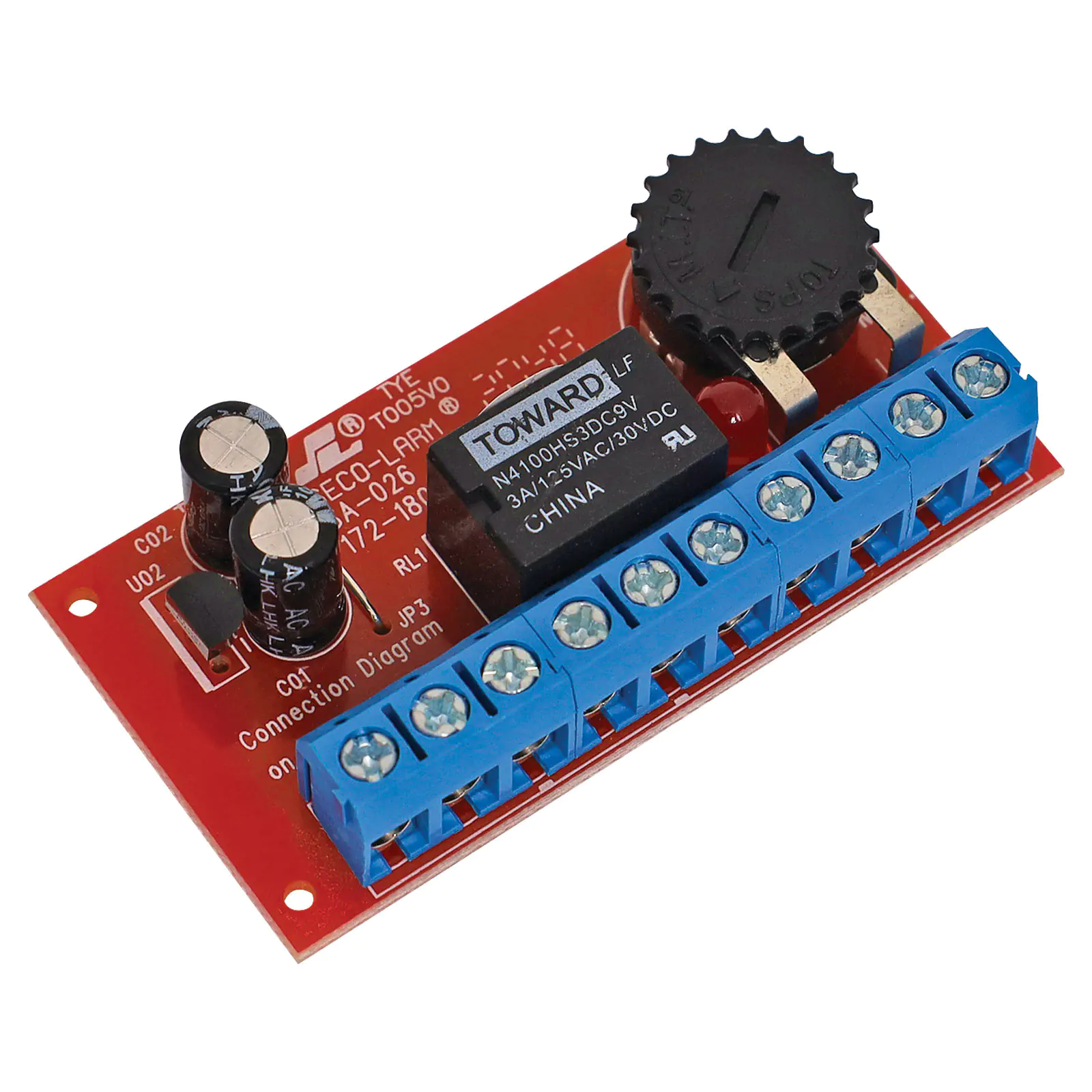

SA-026Q 12V / 24V Programmable PCB Mini Timer

by: Enforcer
SKU: S0090
The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact.
$44.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $44.09
2+ $42.05
4+ $39.77
i h

Overview

The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact. Switched power output, plus voltage free changeover relay contacts.





Specifications:



Rating: 3A 24VDC

Timer duration: 1-180s

Trigger: NC or NO

Input: 12-24V AC/DC

Connections: Screw terminals

Dimensions: 30 x 55 x 16mm

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
