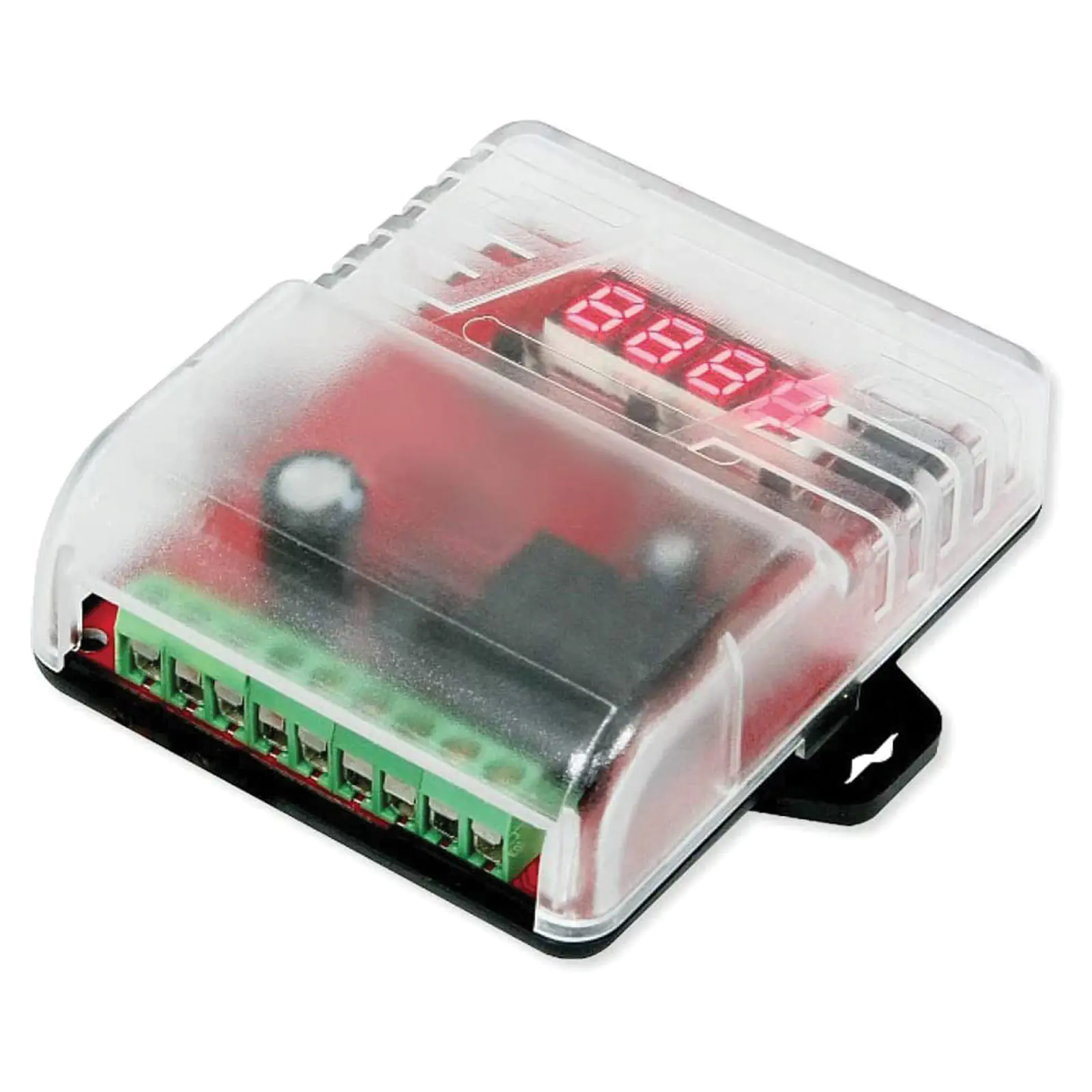

SA-025MQ Multi-Function Timer / Counter

by: Enforcer
SKU: S0103
The SA-025MQ programmable timer provides a way to trigger events via its 10A NO/NC/COM relay output, plus count whenever an event occurs.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
2+ $57.23
4+ $50.86
i h

Overview

The SA-025MQ programmable timer provides a way to trigger events via its 10A NO/NC/COM relay output, plus count whenever an event occurs. It is a very flexible design which has seven programmable modes; auto door/gate closure, guard timer, pulse extender/false trigger avoidance, timed relay output, timed pulse relay, input counter, input timer).





Specifications:



Rating: 10A 24V DC

Timer duration: 1s to 11h 59min

Trigger: NC negative, NO positive

Reset: NO negative

Input: 12 or 24V DC

Standby current draw: 20-40mA

Energised current draw: 65-100mA

Size: 83 x 63 x 27.5mm



Features:

  • Program relay to trigger at start or end of timed cycle
  • Pulse or steady on relay mode
  • Low current draw
  • Timer can trigger LED or buzzer
  • 10A @ 24V DC NO/NC/COM dry form C relay
  • 12V-24V DC operation
  • LED event counter display.

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
