Contactless ‘Wave to Open’ Wallplate

SKU: S0156

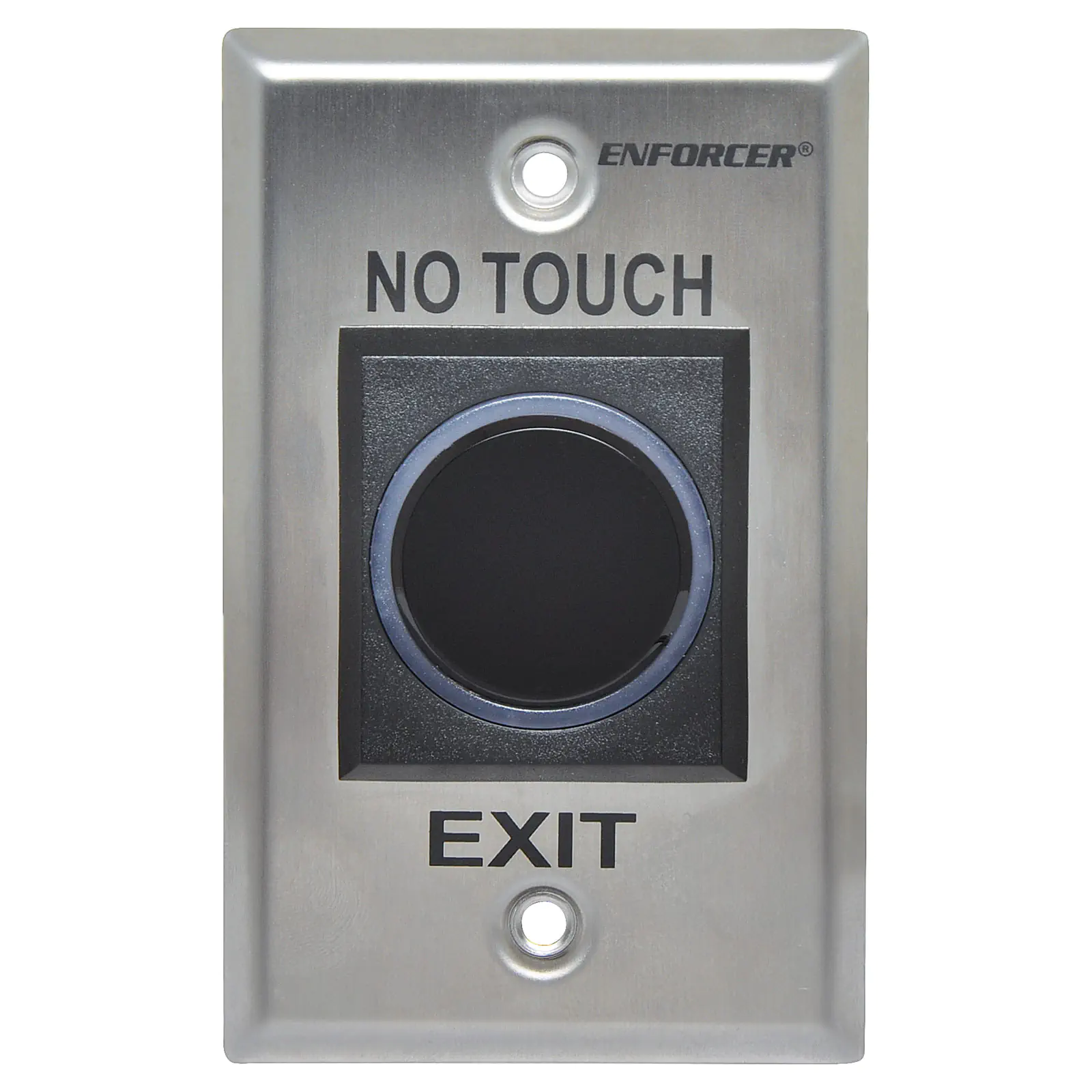

This contact free 'wave to open' proximity wallplate uses infra-red technology to allow access from a protected area with no touch or activate a device simply by waving a hand.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
2+ $59.05
4+ $52.68
i h

Overview

This contactless ''wave to open'' wallplate uses infra-red technology to allow access from a protected area or activate a device simply by waving a hand. This no touch device is ideal for opening automated doors in clinics, hospitals and clean rooms or simply to minimise touched surfaces in commercial buildings, schools and educational facilities. Adjustable range from 6-20cm. 3A internal relay contacts. Turns from red to green or green to red when activated. 12-24V AC/DC input. Fits into a standard single gang electrical wallplate. Dimensions: 70 x 115 x 29mm





Specifications:



Operating Voltage: 12V-24V DC

Current Draw: 120mA@12V DC

Relay type: Form "C" NO/NC/COM

Switching Capacity: 3A@24V DC

Response Time: 10mS

LED's: Green to red/red to green

Output Time: Adjustable, 0.5~30sec., toggle, or as long as sensor is triggered

Sensing Range: Adjustable range from 6-20cm

Operating Temperature: 20°~55° C

Dimensions: 70 x 115 x 29mm

Weight: 85g



Features:

  • Users simply wave a hand in front of sensor
  • Adjustable range from 6-20cm
  • Reliable IR technology senses motion
  • No touch reduces the risk of cross-contamination
  • Stainless steel single-gang plate
  • 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) when activated
