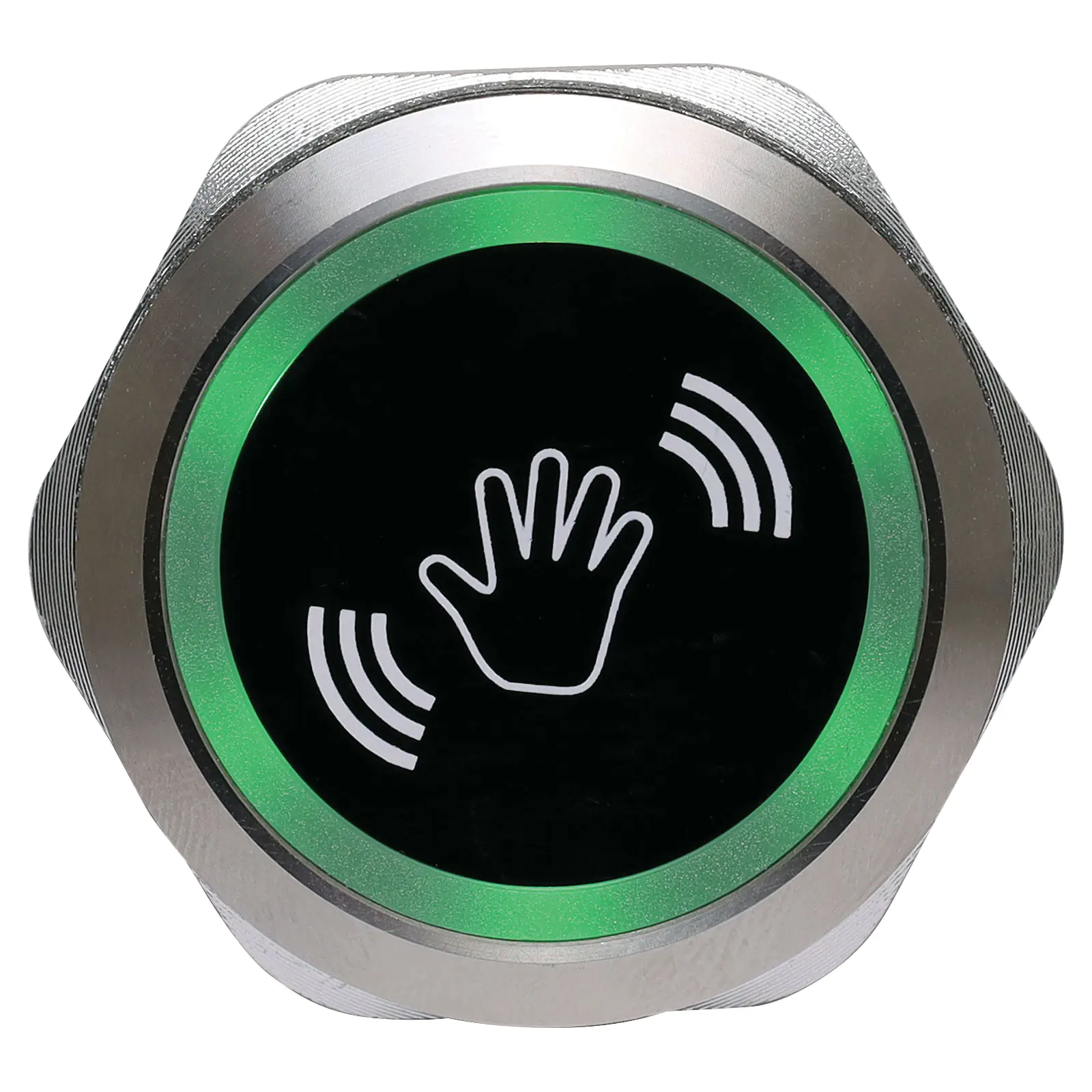

No Touch Infrared Proximity Switch

SKU: S0158
This contact free 'wave to open' proximity switch can be programmed to unlock an electronic door lock with a wave of your hand in front of the sensor. The IP65 rating enables the switch to be mounted to a wall plate at an indoor or outdoor location. It can be configured to either momentary or ON/OFF activation.
$122.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $122.73
4+ $111.36
6+ $99.09
i h

Overview

This proximity switch can be programmed to unlock an electronic door lock with a wave of your hand in front of the sensor. The IP65 rating enables the switch to be mounted to a wall plate at an indoor or outdoor location. It can be configured to either momentary or ON/OFF activation. Excellent for no touch access control suitable for hospitals, surgeries, offices, retail shops and schools.





Specifications:



Diameter: 38mm

Case Material: Stainless steel and polycarbonate

12V DC Power consumption: 35mA@12VDC

24V DC Power consumption: 45mA@24VDC

Relay type: From C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC

Connectors: Wire Terminals

Response Time: 10ms

Output time: 0.5~30s or toggle

Sensing Range: 4~15cm

LED Status Indicator: Selectable red/green or green/red

Operating Life (Relay): 1,000,000 cycles

Operating Life (Sensor): 100,000 Hours

IP Rating: IP65 (front panel only)

Operating Temperature: -20°~55°C



Features:

  • “No touch” Operation
  • Rugged 38mm Stainless steel enclosure
  • 12-24V DC operation
  • Adjustable sensitivity from 4-15cm
  • Adjustable on time from 0.5-30seconds
  • Can be set to toggle ON/OFF
  • NO/NC relay contacts
  • Easy Installation
  • IP65 Rated
