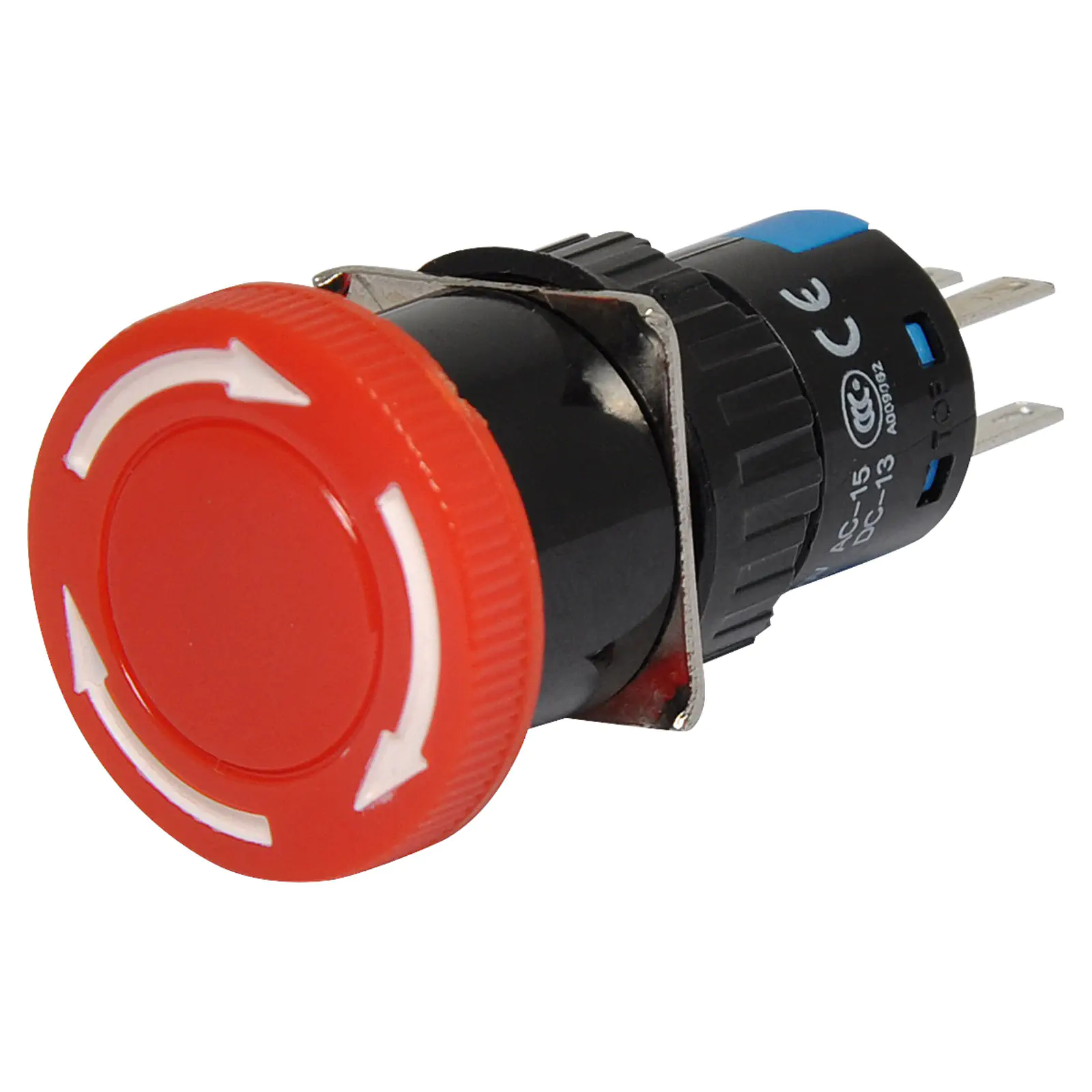

DPDT Emergency Stop Solder Tail Pushbutton Switch

SKU: S0820
Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect.
$16.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $16.09
10+ $15.18
25+ $14.09
i h

Overview

Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect. IP65 Rated



Specifications:



Switch type: DPDT

Contact rating: 500mA @ 250V AC 1A @ 24V DC

Thermal Current: 5A

Contact resistance: <50mΩ

Insulation resistance: >100MΩ

Dialectric strength: 1000V between poles

Electrical life: >50,000 cycles

Ingress protection rating: IP65



Details

Products specifications

Warranty 12 Months
Switches
Connection Solder Tail
Type Panel Mount Switches
Contacts DPDT
