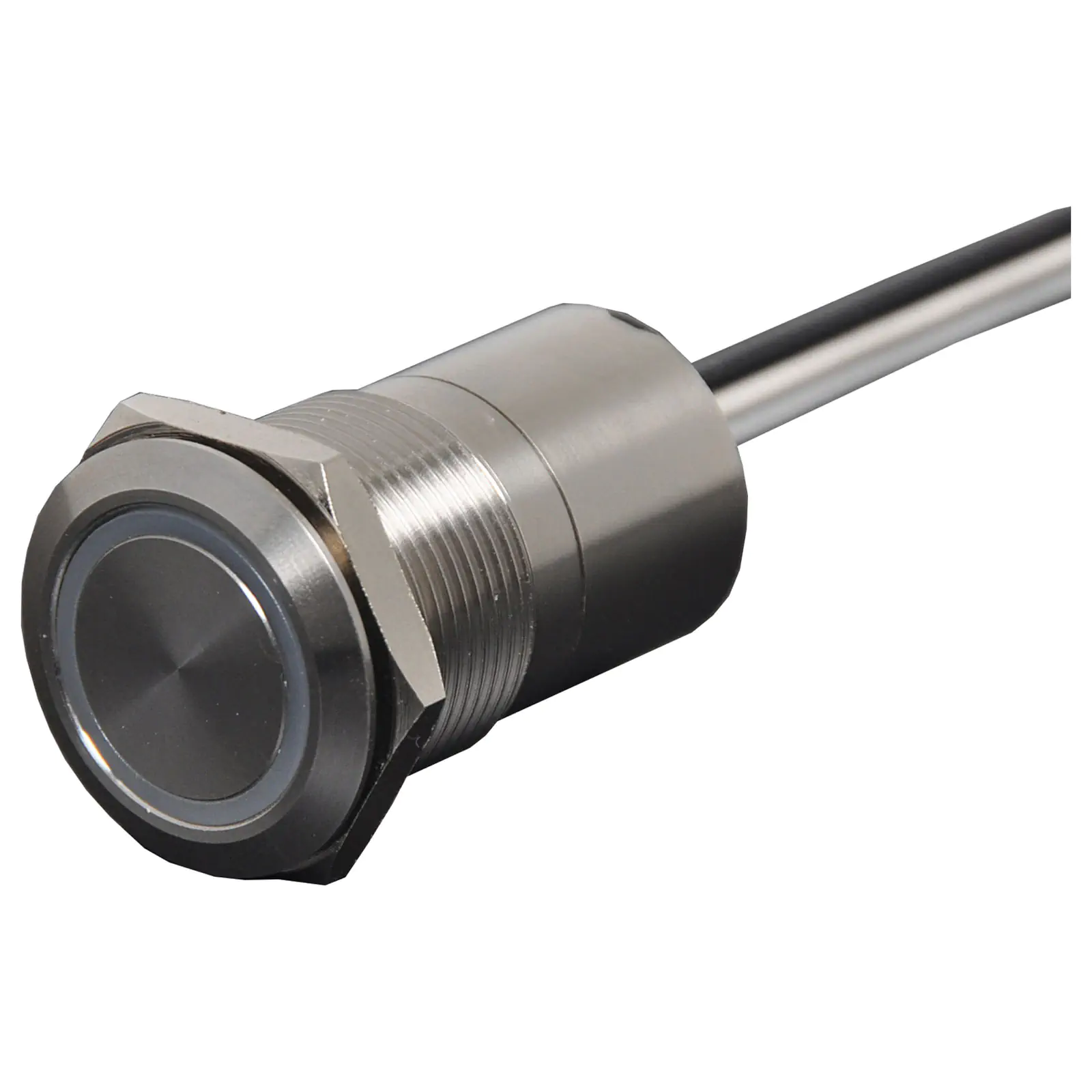

SPST LED Vandal Resistant IP67 Alternate Touch Switch

SKU: S0941
Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. A touch action.
Save $26.82 $35.45 $62.27

All Prices Shown are (ex GST)
Bulk Pricing
ea
$35.45 $62.27
4+
$35.45 $56.32
8+
$35.45 $49.95
i h

Overview

Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. A touch action.

Please Note: This product needs 12V DC to work and if touched, LED lights change and it puts out 12V DC on the third wire which is the switching action.




Specifications:



Panel Thickness: 10mm

LED Colours: Red/Green

LED Operating Voltage: 12VDC

Max Switch Rating: 500mA/24VDC

Electrical Life: 50 million cycles at full load

Contact Resistance: =20MΩ

Insulation Resistance: =10MΩ 600VDC

Operating Temperature: -25°C to +55°C

IK Class: IK10

IP Class: IP67

Body Material: Stainless steel

Cable Materials: UL1430 22AWG

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Type Panel Mount Switches
Action Momentary
Connection Screw Terminals
Indicator Illuminated
