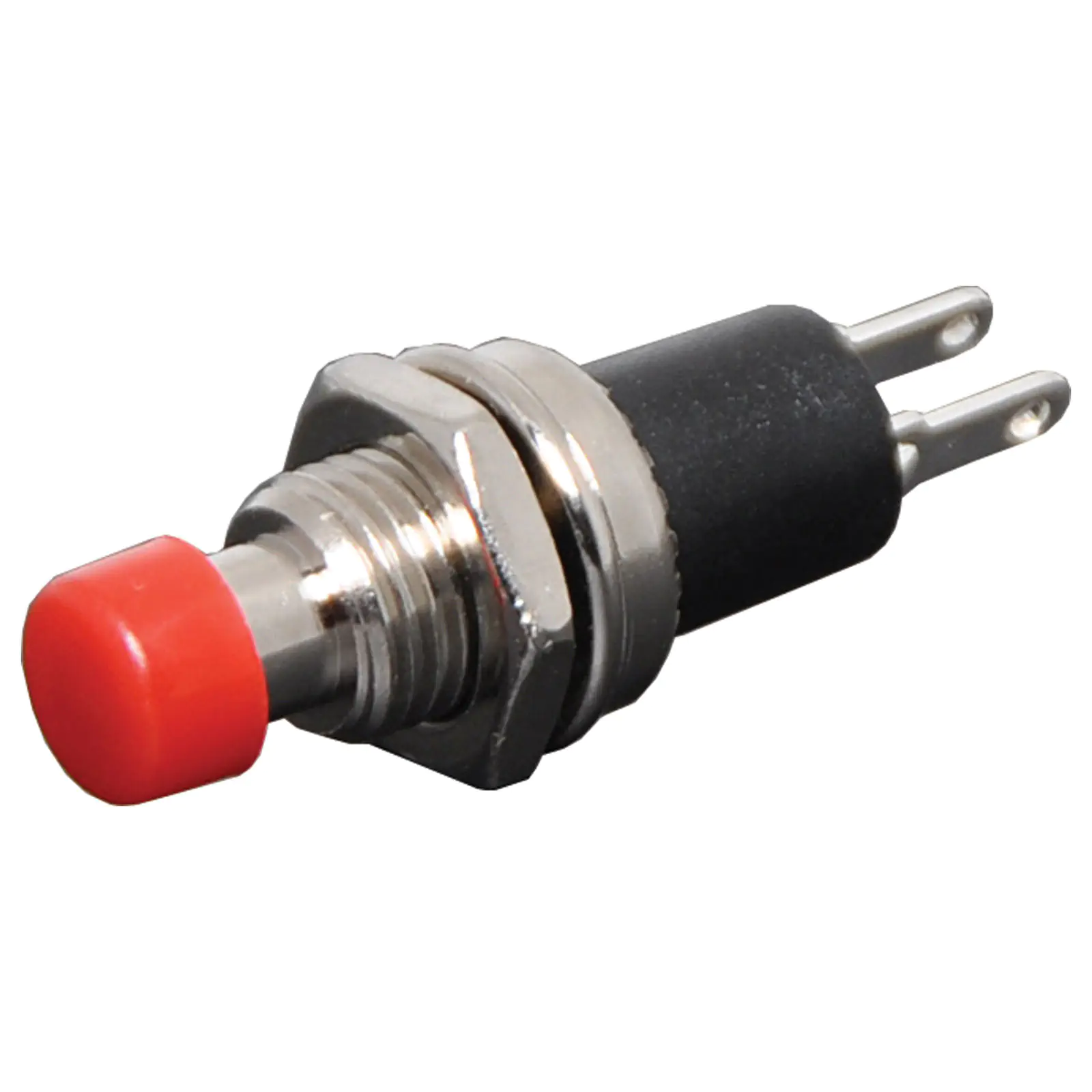

SPST Red Push On Mini Pushbutton Switch

SKU: S1060C
Type : SPST Momentary Rating: 1A 125V ac / 0.5A 250V ac Contact resistance: 2.5V dc 1A 20mΩ or less Insulation resistance: 500V dc 100MΩ or more Voltage breakdown: 1000V ac 1minute Mounting hole diameter: 7mm
$1.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.77
10+ $1.59
25+ $1.41
i h

Overview

These handy miniature push buttons are ideal for any simple low current circuit switching. Red actuator with normally open push button action.





Specifications:



Circuit: A: (ON)-OFF

Rating: 1A 125V ac / 0.5A 250V ac

Contact resistance: 30mΩ Max

Insulation resistance: 500V DC 100mΩ Min

Dielectric Strength: 1000V AC 1 Minute

Electrical Life: 5000 cycle

Mechanical Life: 10,000 cycle

Terminal Material: Copper, Alloy, (Silver or Gold Plated)

Push Force: >0.3kg

Soldering: 240° for 3 seconds

Mounting hole diameter: 7.3mm

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Type Panel Mount Switches
Action Momentary
Connection Solder Tail
