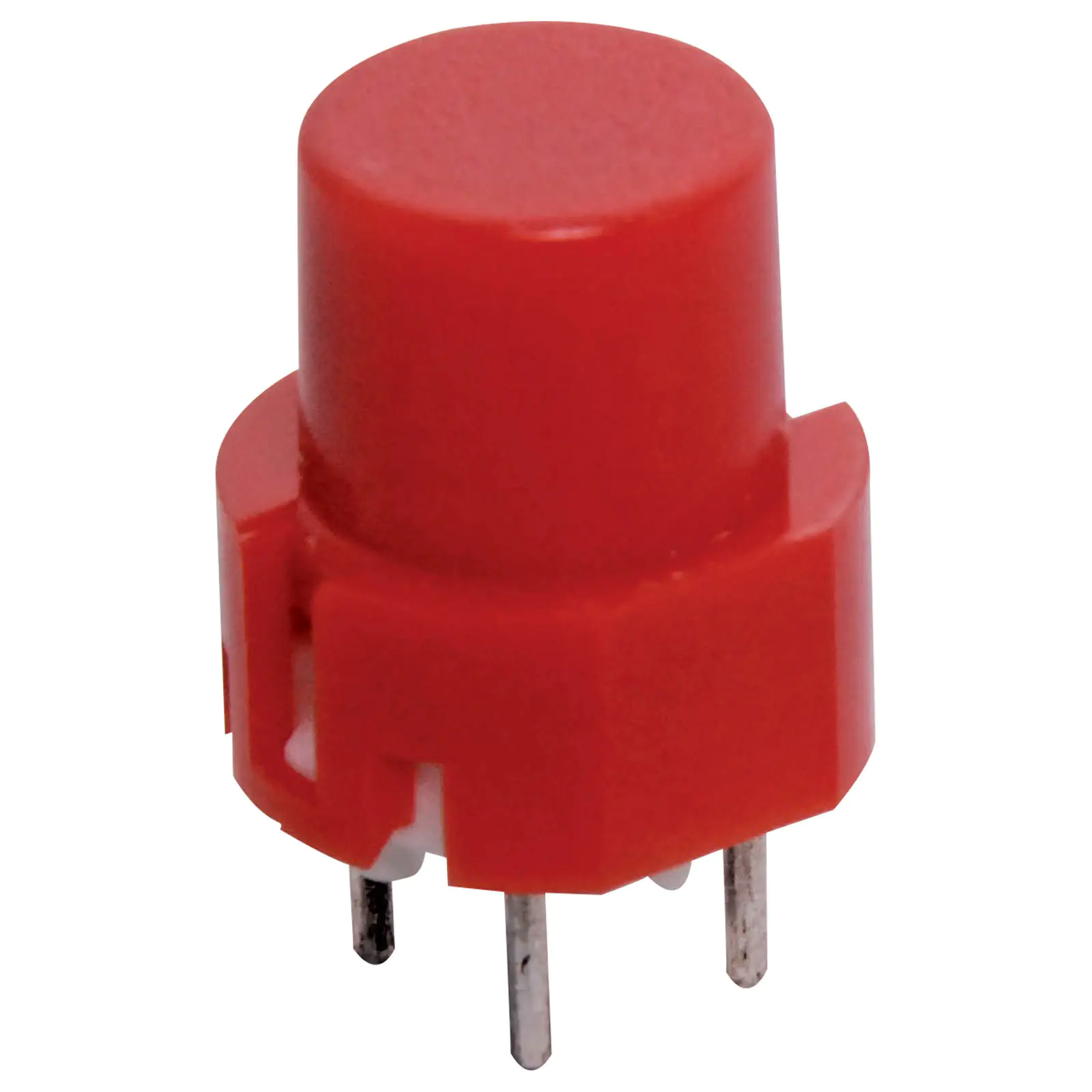

SPST Momentary Red PCB Mount Tactile Switch

SKU: S1095
Switch type: SPST momentary Contact resistance: 50mΩ Max Actuator Diameter: 9mm Insulation Resistance: 100MΩ Min Dielectric Strength: 500V AC (50~60Hz) for 1 minute Life (nominal current & voltage): 100000 cycle Temperature Range: -10ºC to +65ºC Solderability: 235ºC for 5 seconds
$1.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.45
10+ $1.32
25+ $1.14
i h

Overview



Specifications:



Colour: Red

Type: SPST

Action: Momentary

Contact Resistance: 50mΩ Max

Operating Force: 130±50gf

Actuator Diameter: 9mm

Insulation Resistance: 100MΩ Min

Dielectric Strength: 500V AC (50~60Hz) for 1 minute

Life (nominal current & voltage): 100000 cycle

Temperature Range: -10ºC to +65ºC

Solderability: 235ºC for 5 seconds

Travel: 0.80mm Max

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Action Momentary
Connection PCB Mount
Type Tactile Switches
