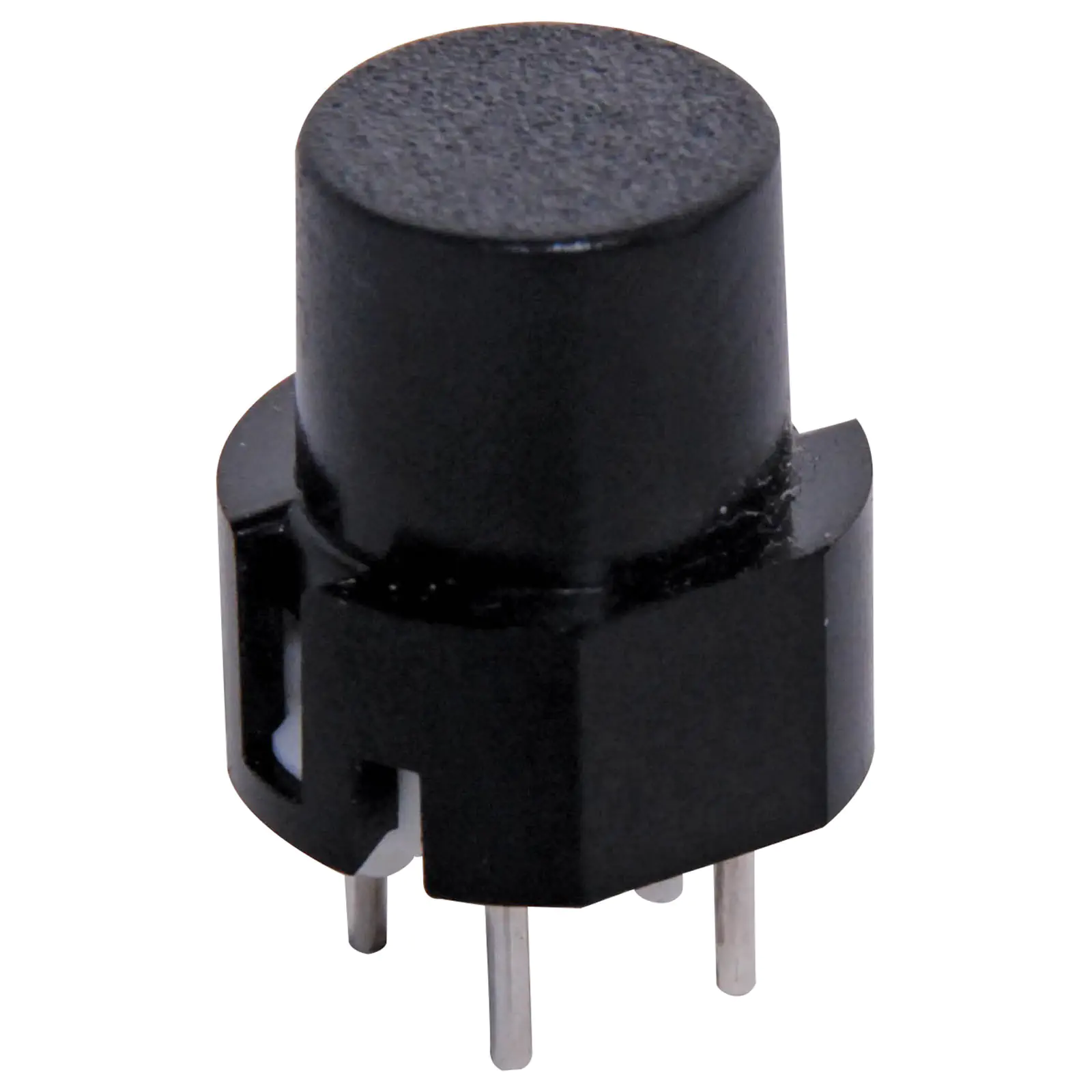

SPST Momentary Black PCB Mount Tactile Switch

SKU: S1096
Switch type: SPST momentary Operating Force: 130±50gf Contact resistance: 50mΩ Max Actator diameter: 9mm Insulation resistance: 100MΩ Min Dielectric strength: 500V AC (50~60Hz) for 1 minute Life (nominal current & voltage): 100000 cycle Temperature range: -10ºC to +65ºC Solderability: 235ºC for 5 seconds
$1.45

All Prices Shown are (ex GST)

Bulk Pricing
ea $1.45
10+ $1.32
25+ $1.14
i h

Overview

Colour: Black

Switch type:  SPST momentary

Contact Resistance: 50mΩ Max

Operating Force: 130±50gf

Actuator Diameter: 9mm

Insulation Resistance: 100MΩ Min

Dielectric Strength: 500V AC (50~60Hz) for 1 minute

Life (nominal current & voltage): 100000 cycle

Temperature Range: -10ºC to +65ºC

Solderability: 235ºC for 5 seconds

Travel: 0.80mm Max

Details

Products specifications

Warranty 12 Months
Switches
Type Tactile Switches
Contacts SPST
Action Momentary
Connection PCB Mount

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
